INSTALLATION AND
CONNECTION INSTRUCTIONS

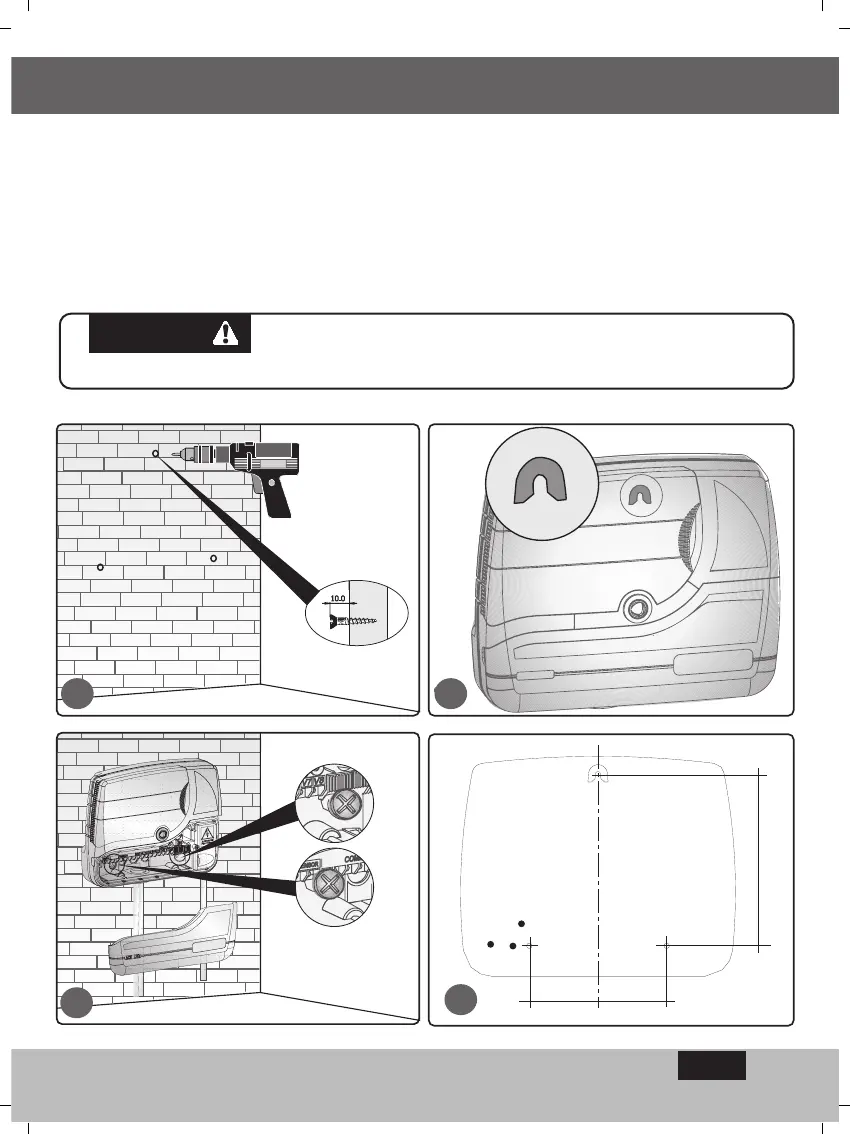

3.Installation of the Controller.
1. Mount the Controller on a wall or in the control cupboard.
2. Drill three holes according to the dimensions given in sketch 4.
3. Fix top Screw, hook up the appliance. Remove the lower cover and mount the appliance
to the wall with the aid of bottom screws 2 & 3 fitted through the Controller, hand tighten
only. See Diagrams 1 3.
PLEASE NOTE
It is desirable to set the controller at a spot convenient
for access and at head-height.
60
60
150
EN
