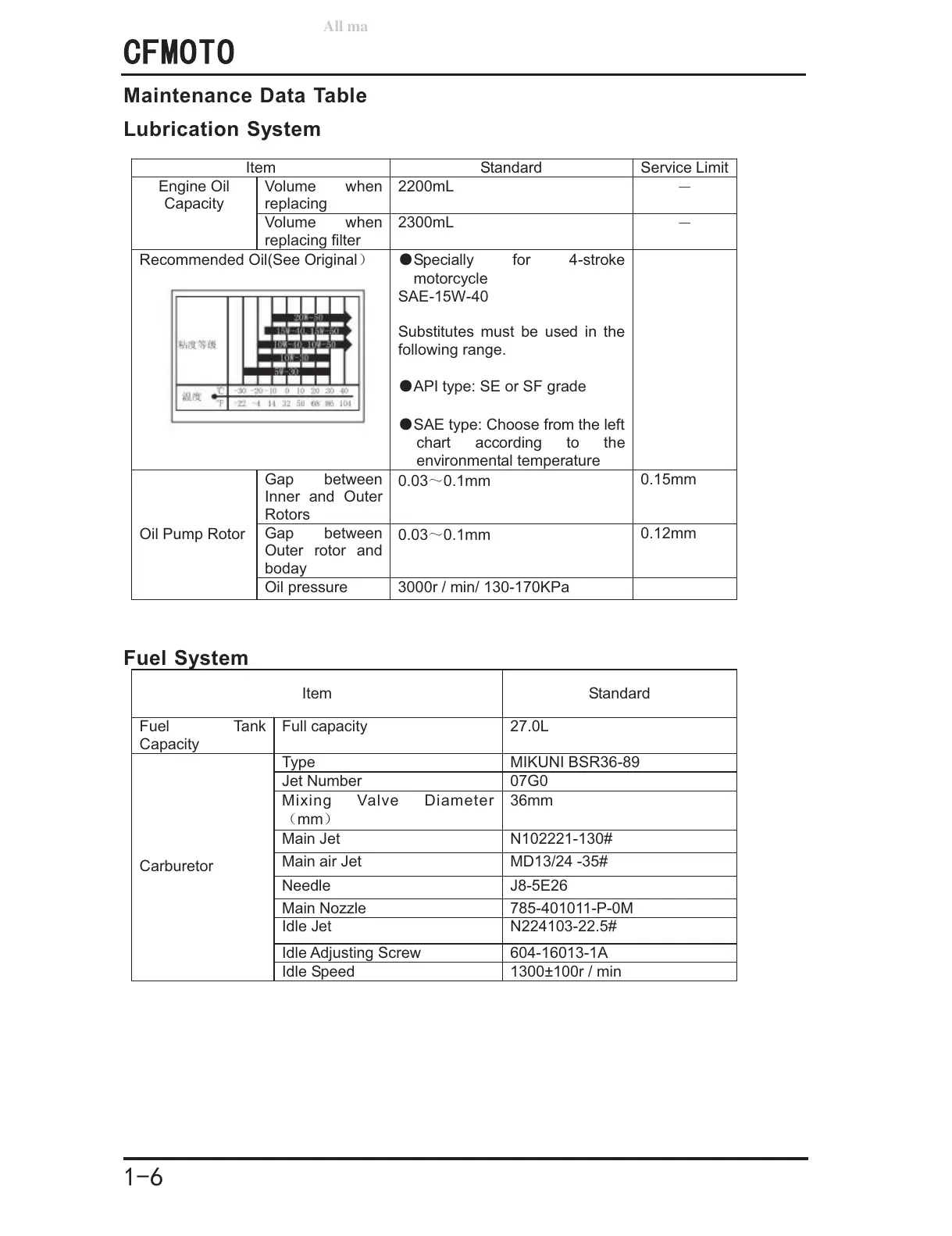

Maintenance Data Table
Lubrication System
Item Standard Service Limit
Volume when
replacing
2200mL

Engine Oil
Capacity
Volume when
replacing filter
2300mL

Recommended Oil(See OriginalSpecially for 4-stroke
motorcycle
SAE-15W-40
Substitutes must be used in the
following range.
API type: SE or SF grade
SAE type: Choose from the left
chart according to the
environmental temperature
Gap between
Inner and Outer
Rotors
0.030.1mm
0.15mm
Gap between
Outer rotor and
boday
0.030.1mm
0.12mm
Oil Pump Rotor
Oil pressure 3000r / min/ 130-170KPa
Item Standard
Fuel Tank
Capacity
Full capacity 27.0L
Type MIKUNI BSR36-89
Jet Number 07G0
Mixing Valve Diameter
mm
36mm
Main Jet N102221-130#
Main air Jet MD13/24 -35#
Needle J8-5E26
Main Nozzle 785-401011-P-0M
Idle Jet N224103-22.5#
Idle Adjusting Screw 604-16013-1A
Carburetor
Idle Speed 1300±100r / min
Fuel System
