CFM TG560 - Replacement Parts and Hardware; TG560 Replacement Parts List

34
For warranty replacements, proof of ownership and
replacement parts and shipping may apply.
For warranty replacements, proof of ownership and date
of purchase is required. Please call to receive a return
authorization number before returning any grill
components. To order parts call toll free: 1-800-944-8982
Replacement parts are available direct from our
warehouse. Some components are not available
preassembled and may be ordered separately. For
convenience, the following parts list is provided along
with a representation of the items listed. Charges for
replacement parts and shipping may apply.

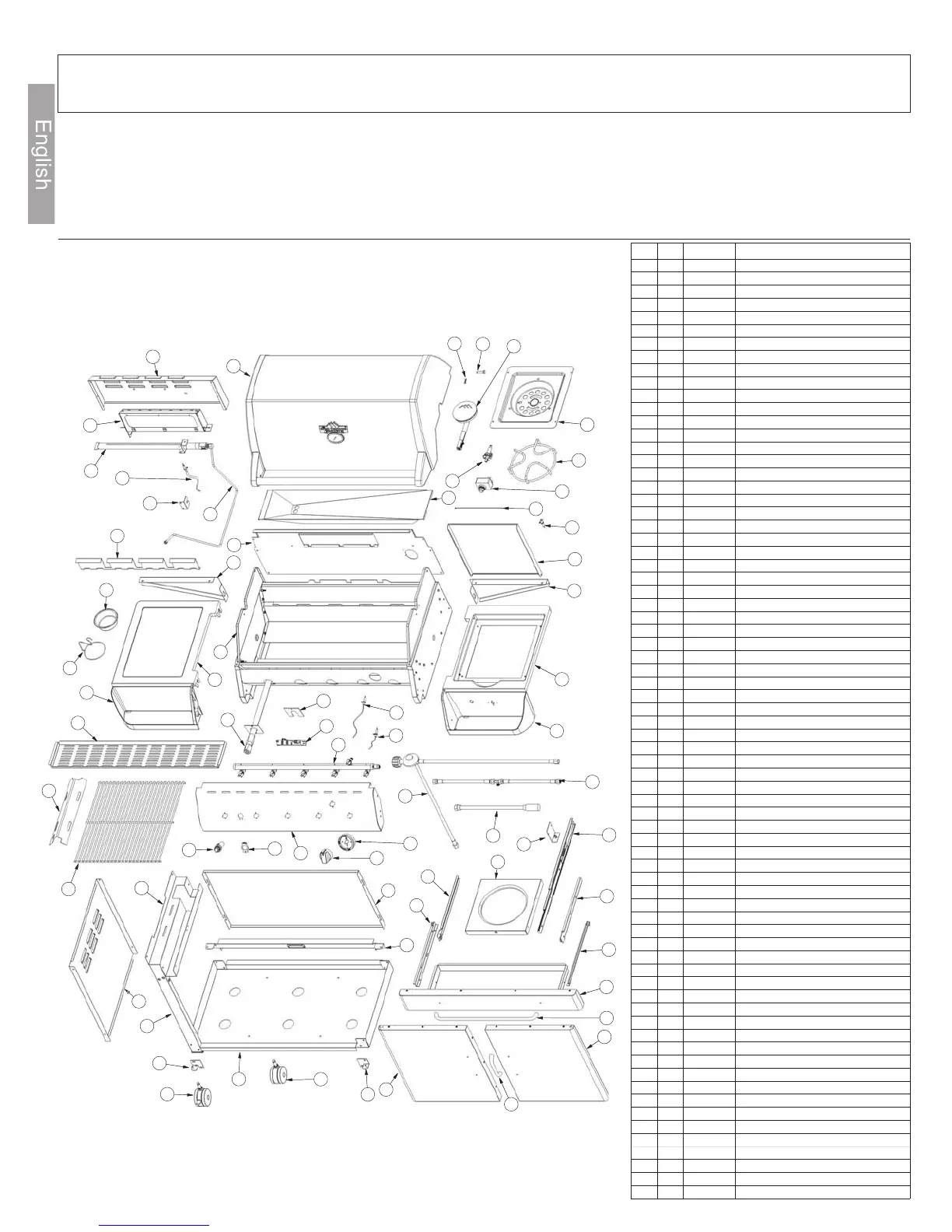

Model TG560 Replacement Parts
DESCRIPTIONPART NOQTYITEM
GRILL TUB ASSY5000266111
MAIN BURNER ASSY5000083552
BURNER GASKET5000089253
ELECTRODE-MAIN-LONG5000052334
ELECTRODE-MAIN-SHORT
WIRE ELECTRODE - S/B
50000431
50003066
2
1
5
5a
FLASH TUBE50002541B16
CONSOLE PANEL5000254817
VALVE ASSY LP5000260018
PUSH BUTTON IGNITOR5000278819
IGNITOR ASSM KIT-6 POLE50001619110
IGNITER PLATE50002533111
TUBE/ORIFICE ASSY LP50002554112
REAR GRILL TUB PANEL50002545113
PLATE ROTISS SPUD50002811B114
ROTISS HOUSING/SCREEN ASSY50002553115
BURNER ROTISS ASSY50000047116
ELECTRODE-ROTISS-H650003129117
ROTISS COVER50002812B118
GREASE CUP SUPPORT50002568119
GREASE CUP50002567120
LID ASSY FRONT50002660121
LID PIVOT PIN50002655222
LID COTTER PIN50002656223
HEAT PLATE50002586524
KNOB BEZEL - CHROME50002551
725
KNOB - NICKEL PLATED50002552726
COOK GRATE SS 6mm50002587227
CAST ALUM SIDE SHELF LH50002636128
CAST ALUM CONDIMENT BIN LH50002637129
BRACKET SIDE SHELF SUPPORT LH50002635130
CAST ALUM SIDE SHELF RH50002644131
CAST ALUM CONDIMENT BIN RH50003415132
BRACKET SIDE SHELF SUPPORT RH50002643133
BURNER BOX S/B50002646134
BURNER + TUBE S/B ASSY50002639135
ELECTRODE S/B50002641136
GRATE S/B50002642137
COVER SIDE BURNER50002648138
IGNITOR KIT 2 WIRE CHROME S/B50002395139
WIRE GROUND50002212140
HOSE REGULATOR S/B50002547141
SIDE BURNER VALVE LP50002651142
CONNECTOR HOSE NAT GAS50000920143
12' NAT. GAS HOSE50000198144
WARM RACK50002585145
GREASE PAN ASSY50002566146
BOTTOM PANEL50002667B147
LEG FINAL ASSY50002789448
CABINET SIDE PANEL L/R50002665B249
BRACKET SUPPORT FIRE BOX50002762B2
50
BRACE FRONT50002663151
LOWER DOOR HINGE ASSY LEFT50002666152
DOOR ASSY LEFT50002764153
PANEL BACK50002664B154
LOWER DOOR HINGE ASSY RIGHT50002814155
DOOR ASSY RIGHT50002765156
TANK SLIDE BASE ASSY50002840157
DRAWER SLIDES50001543258
BRACKET SLIDE ASSY50002839459
DRAWER ASSY50002763160
CABINET SLIDE-R50001041161
CABINET SLIDE-L50001043162
DRAWER SLIDE-R50001040163
DRAWER SLIDE-L50001042164
LOCKING CASTER50000090265
DOOR HANDLE50002577266
DRAWER HANDLE / TOWEL BAR50002571167
NON-LOCKING CASTER50002657268
SIDE BURNER VALVE NAT GAS500026501
TUBE/ORIFICE ASSY NAT GAS500025951
VALVE ASSY NAT GAS500026021
