MAINTENANCE AND ADJUSTMENTS

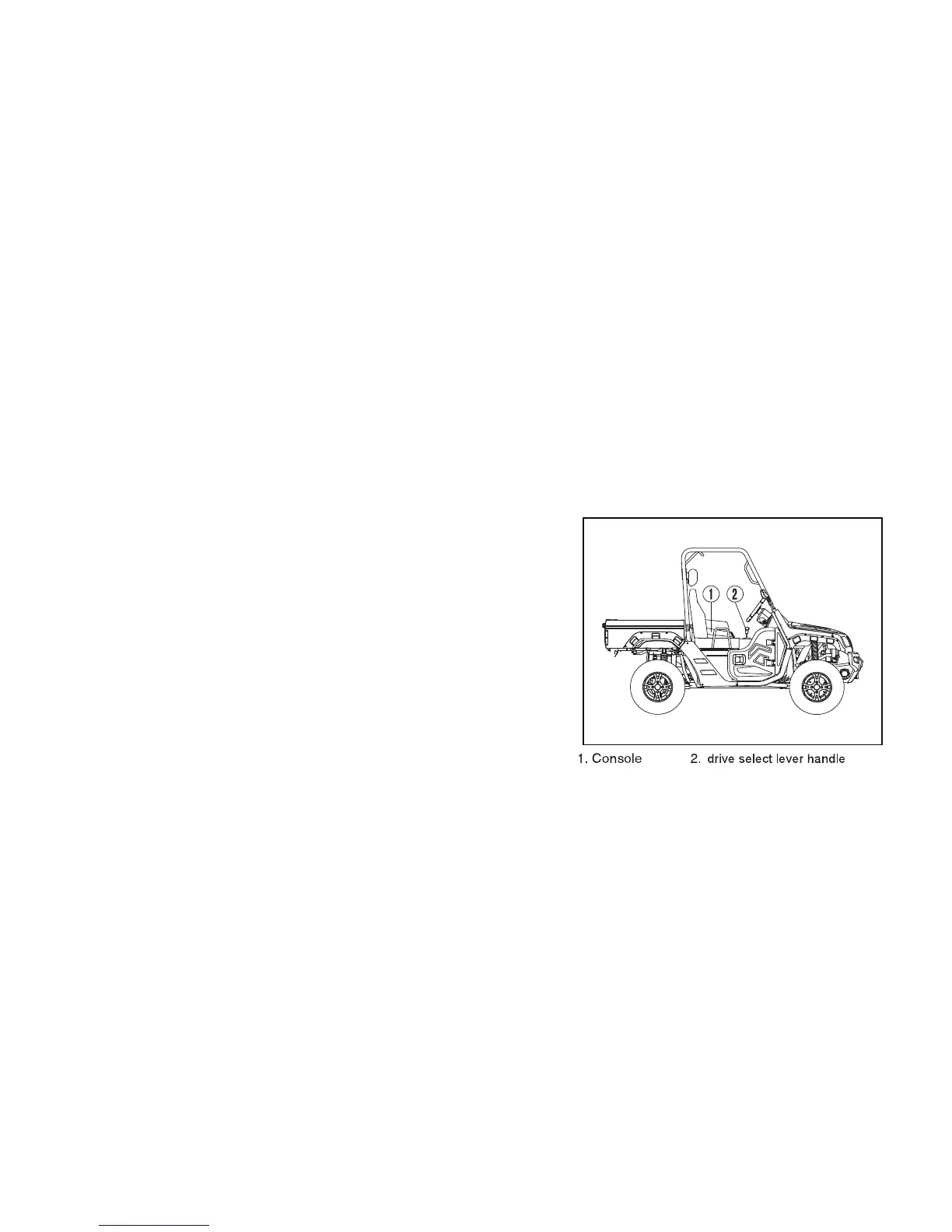

CONSOLE
TO REMOVE
1. Remove the seats. (See page 49 for seat removal and installation procedures.)
2. Remove the drive select lever handle.
3. Pull the console upward.
TO INSTALL
1. Place the console in its original position.
2. Install the drive select lever handle.
3. Install the seats.
NOTICE
When installing the console, be sure not to
pinch the cables or wires.
Make sure that the groove at the bottom of the
drive select lever boot fits securely around the
edge of the hole in the console.
-109-
