MAINTENANCE AND ADJUSTMENTS
CLEANING THE SPARK ARRESTER
Hot exhaust system may cause burns. To avoid burns or fires, make sure that the engine is
stopped and the exhaust system is cool before cleaning spark arrester. Do not start the engine
while cleaning the exhaust system.

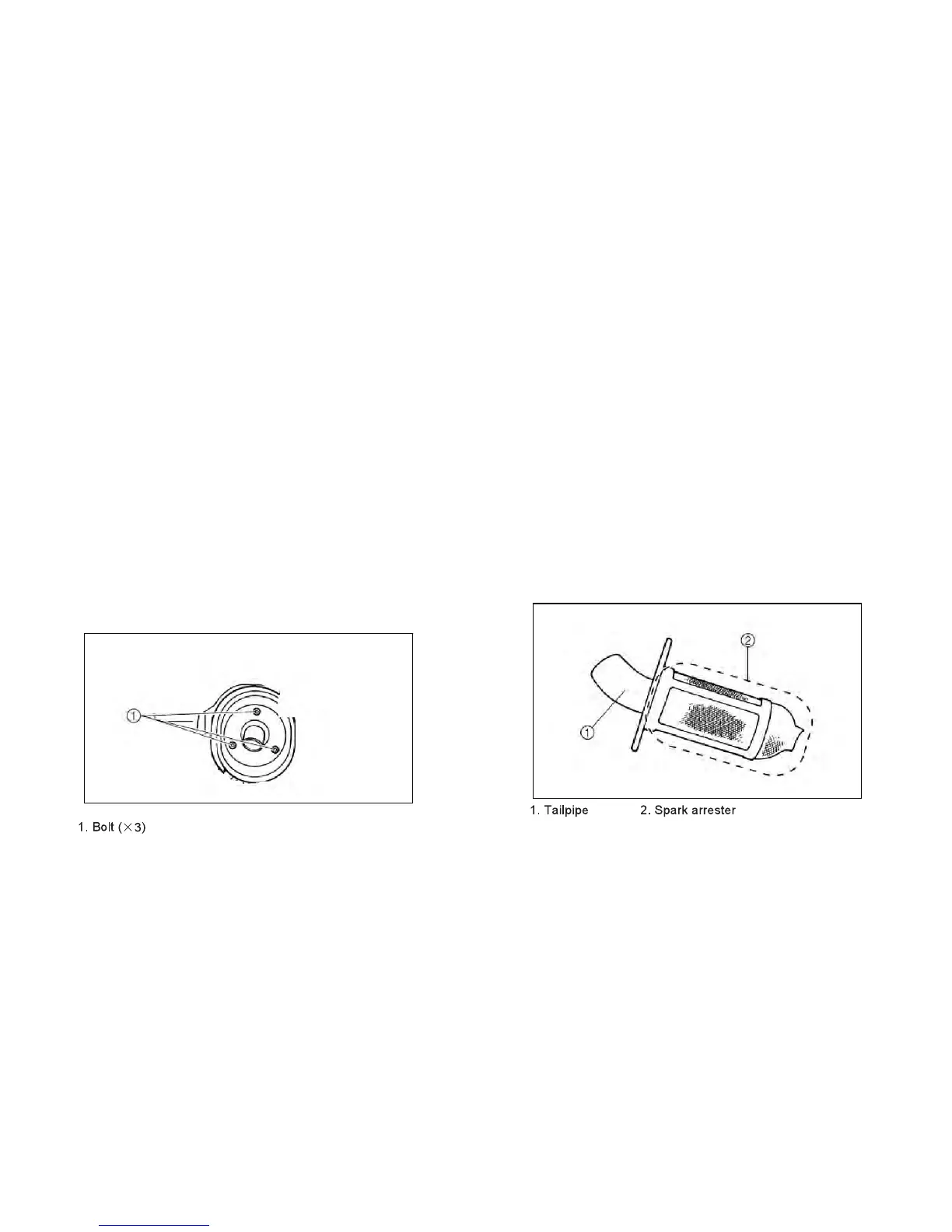

1. Remove the bolts.
2. Remove the tailpipe by pulling it out of the muffler.
3. Tap the tailpipe lightly, and then use a wire brush to remove any carbon deposits from the spark
arrester portion of the tailpipe and inside of the tailpipe housing.
4. Insert the tailpipe into the muffler and align the boltholes.
5. Install the tailpipe by installing the bolts, and
then tighten the bolts to the specified torque.
Tightening torque: Tailpipe bolt: 9.5 Nm (6.9 lbs ft)
-130-
