MAINTENANCE AND ADJUSTMENTS

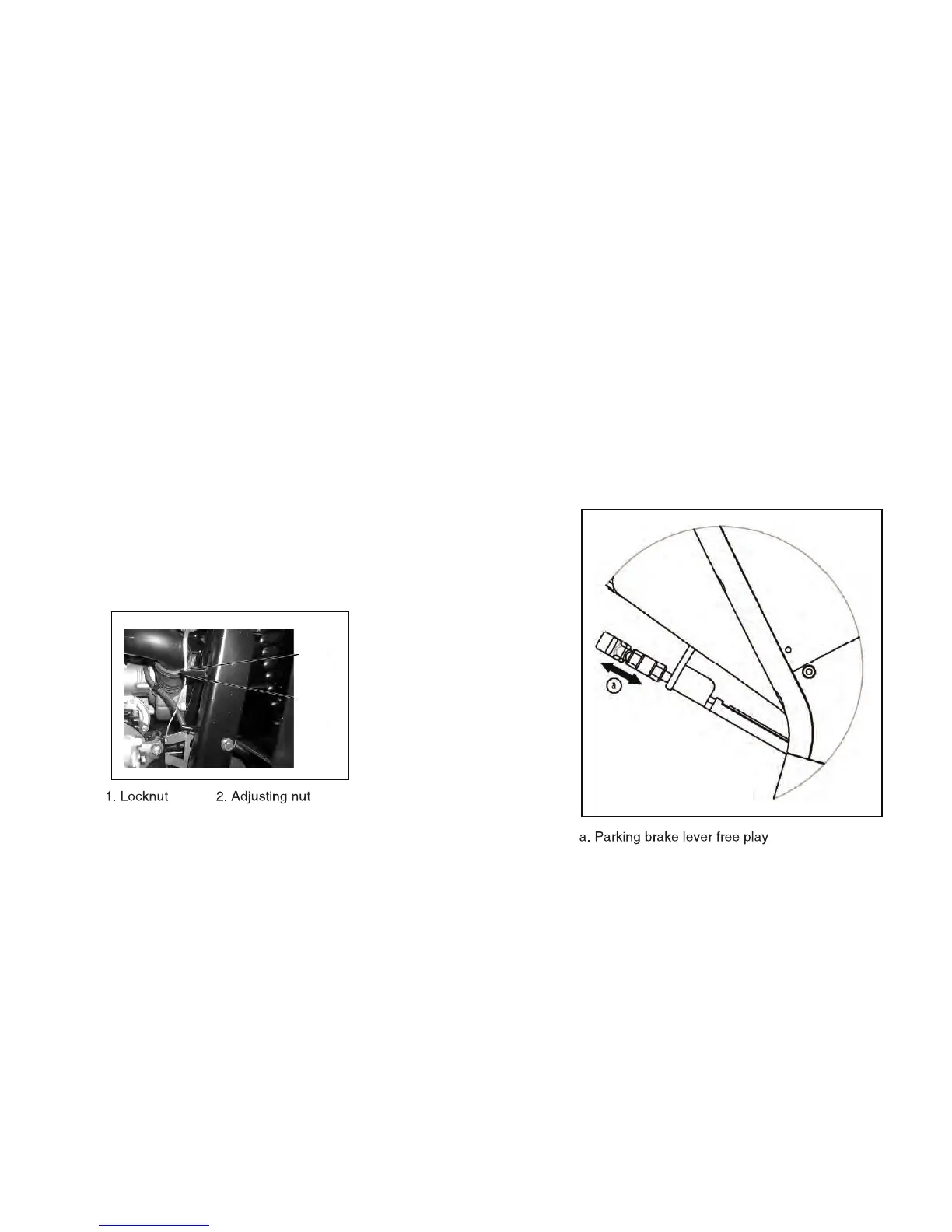

PARKING BRAKE LEVER FREE PLAY ADJUSTMENT
Periodically check the parking brake lever free play and adjust it if necessary.
1. Check the parking brake lever free play. The maximum free play is equal to one click of the parking
brake lever. If necessary, adjust the free play as follows.
2. The parking brake lever must be released when checking and adjusting the parking barke lever
free play.
3. Loosen the locknut.
4. Turn the adjusting nut to increase the free
play or to decrease the free play.
5. Tighten the locknut.
