①
②
①
MAINTENANCE AND ADJUSTMENTS

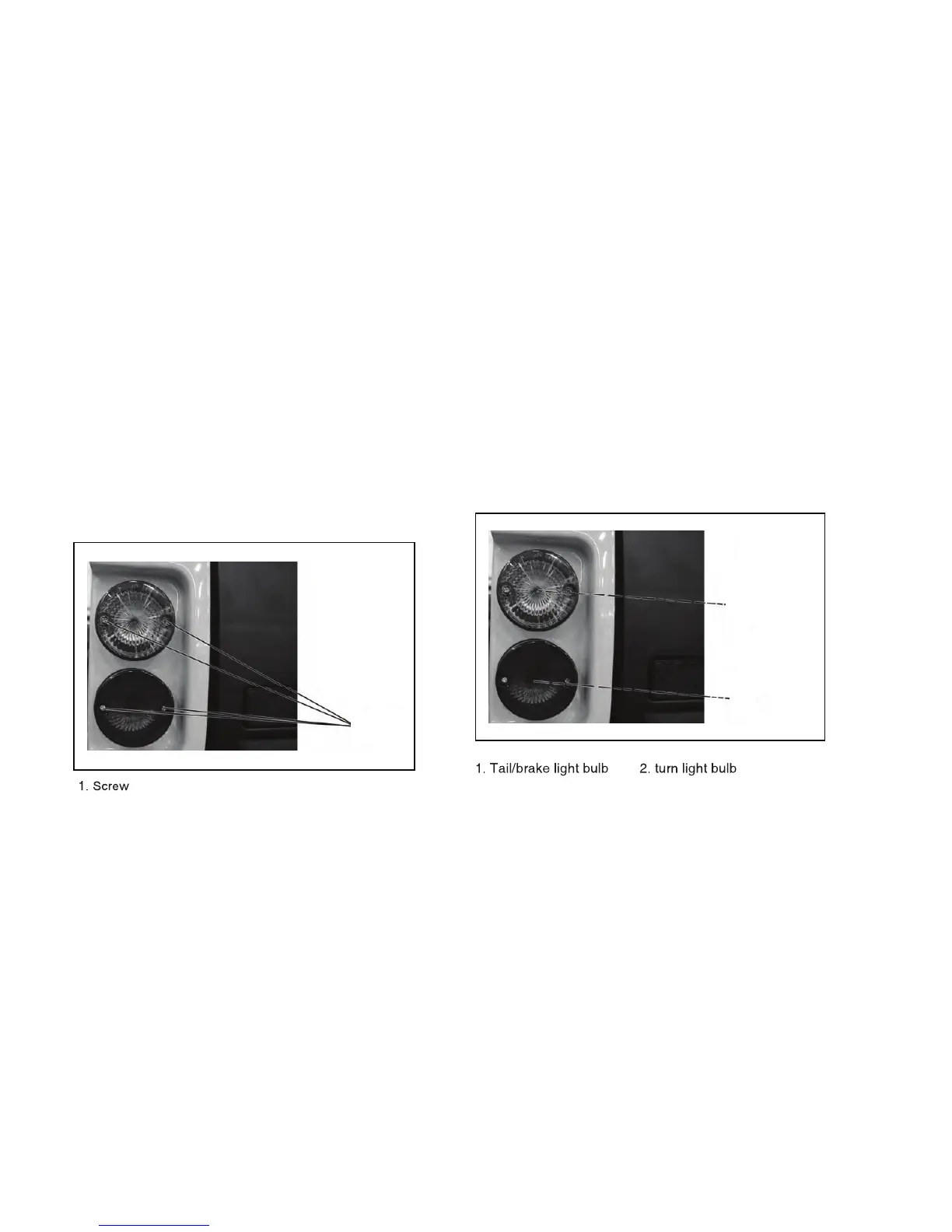

TAIL/BRAKE/TURN LIGHT BULB REPLACEMENT
If a tail/brake light bulb bums out, replace it as follows:
1. Remove the screws (1)
2. Push the defective bulb in and turn it counterclockwise to remove it from the bulb holder.
3. Push a new bulb in and turn it clockwise to install in the bulb holder.
4. Reinstall the screws.
Tightening torque: Panel bolt: 6.5 Nm (4.71 lbs ft)
-152-
