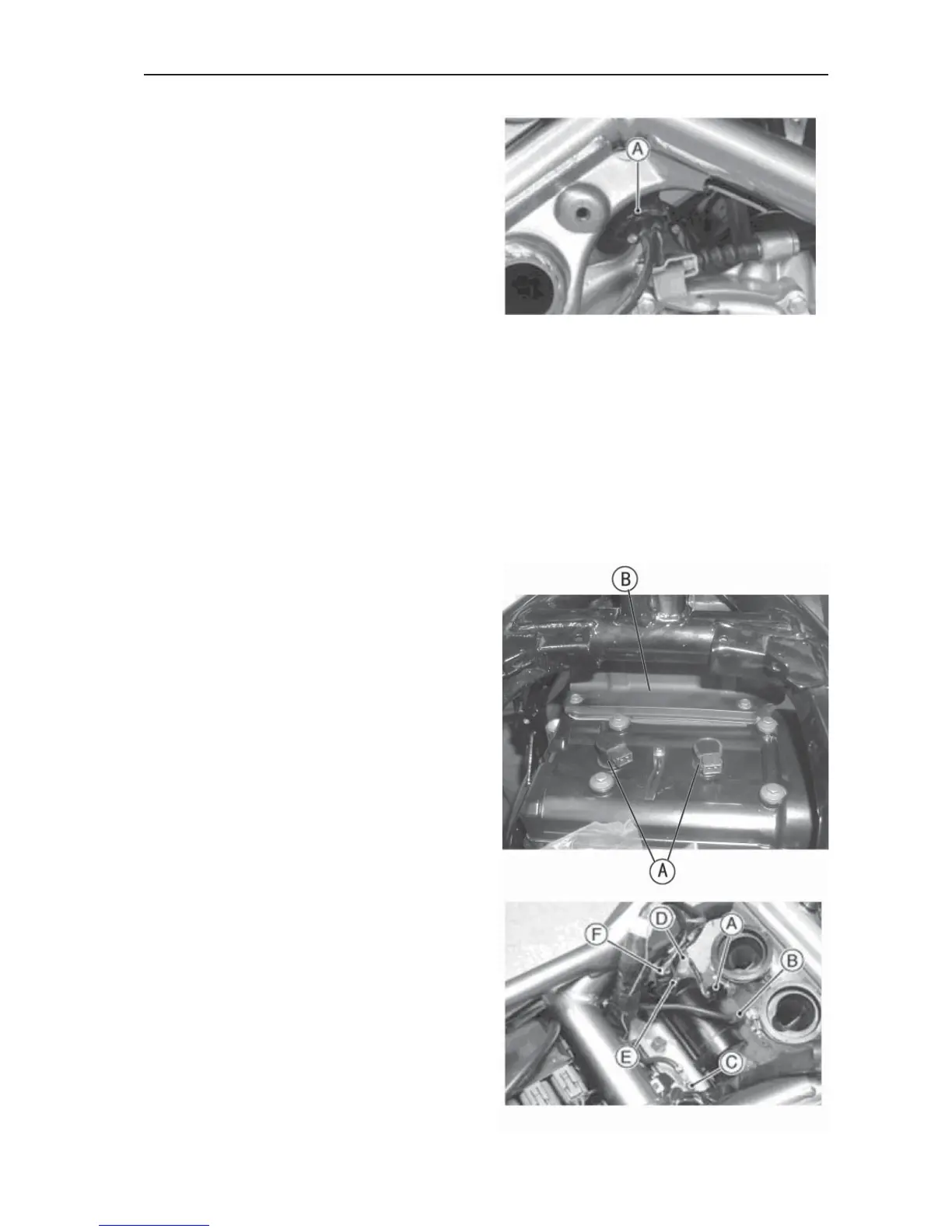

ENGINE REMOVAL/INSTALLATION 8-5
● Disconnect the crankshaft sensor lead connector
[A].
● Remove:
Exhaust Pipe (see Exhaust Pipe Removal in the
Engine Top End chapter)
Muffler Body (see Muffler Body Removal in the
Engine Top End chapter)
Fuel Tank (see Fuel Tank Removal in the Fuel
System (EFI) chapter)
Air Filter Housing (see Air Filter Housing
Removal in the Fuel System (EFI) chapter)
Throttle Body Assy (see Throttle Body Assy
Removal in the Fuel System (EFI) chapter)
Clutch Cable (see Clutch Cable Removal in the
Clutch chapter)
● Remove:
Stick Coils [A]
Baffl e Plate [B]
● Remove or Disconnect:
Coolant Temperature Sensor Lead Connector [A]
Starter Motor Cable [B]
Engine Ground Cable Terminal Bolt [C]
Alternator Lead Connector [D]
Sidestand Switch Lead Connector [E]
Speed Sensor Lead Connector [F]
To Next Page
