CHAFFOTEAUX ChaffoLINK User Manual

64
CHAFFOLINK
BUS
BUS
fi g.13
fi g.14
Type 7

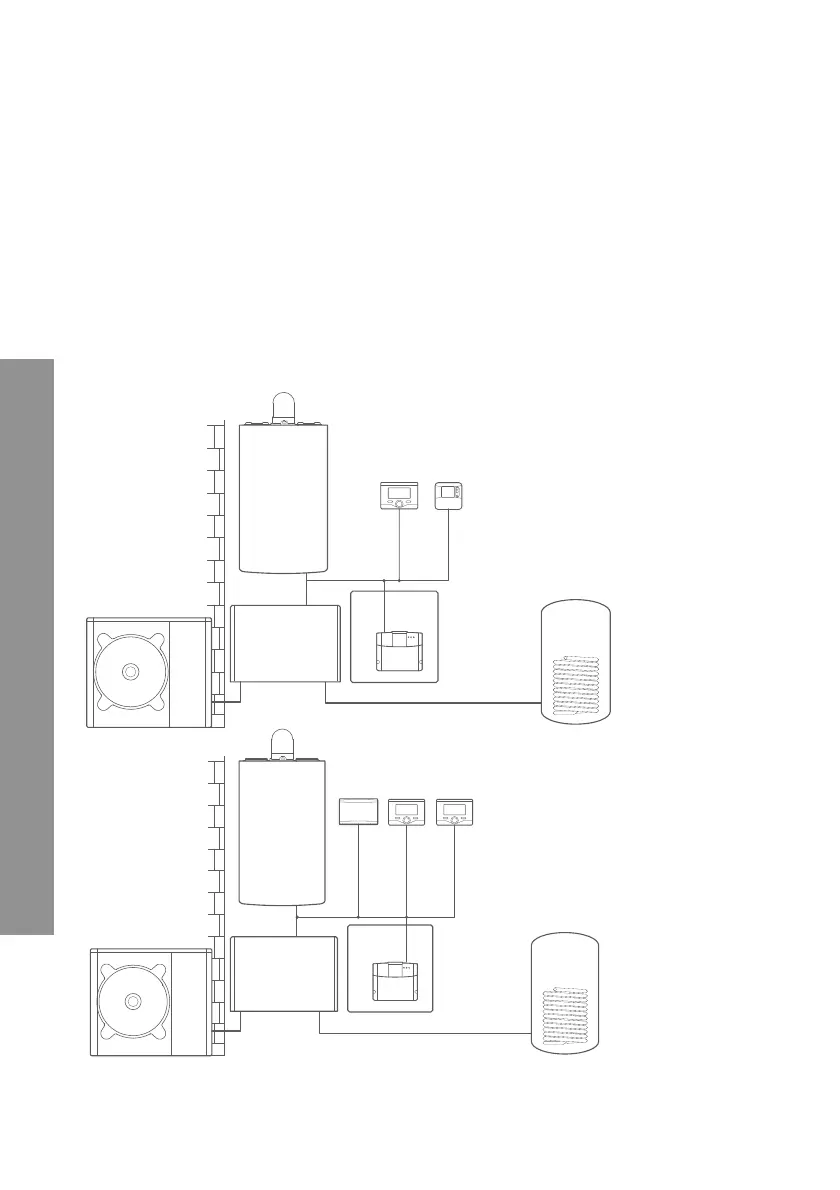

Activation of RD and RC in a hybrid system with up to 2 hydraulic zones con-
trolled by BUS devices with domestic water cylinder (Fig. 13)
System fi tted with the Cha oteaux product, to which BUS zone management acces-
sories are connected, such as Cha oteaux Expert Control and/or Ambient Sensor. It
is possible to remotely control the cooling function, if available.
Actions required (Fig. 14):
- Install the gateway by connecting it to the heating system via the BUS connection
- Replace the Ambient Sensor with Cha oteaux Expert Control
- Install the zone manager kit designed for controlling the cooling function (3319079)
KIT ZONE
MANAGER
KIT ZONE
MANAGER
ROOM SENSOR
GATEWAY
NOTE:
FOR INFORMATION ON OTHER POSSIBLE SCHEMES, CONTACT YOUR TRUSTED TECHNICAL ASSISTANCE CENTRE
EXPERT
CONTROL
EXPERT CONTROL
