65
CHAFFOLINK

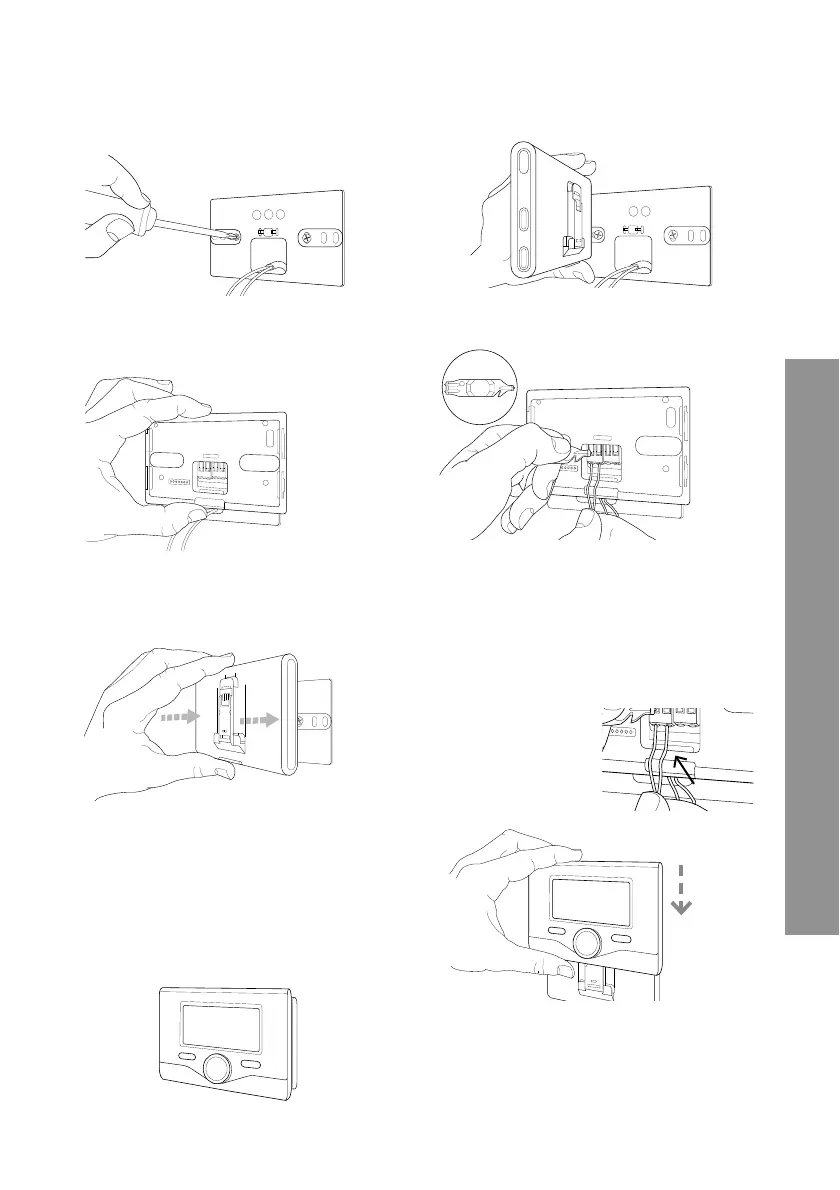

4.3 Installation of gateway to wall
BT
BT
B T
B T
1
2
34
Screw the support plate into the wall
using the supplied screws
Fix the gateway temporarily to the plate
using the hooks
Connect the pair of cables from the Brid-
geNet BUS connector on the boiler PCB
to the BridgeNet BUS connector on the
gateway (respecting pole B with B and
pole T with T)*. Use the included tool to
press the tabs lightly.
* for easier connection of
the cables, the plastic
tab can be removed, as
shown in the fi gure..
Rotate the gateway
5
6
Remove the gateway from the tempora-
ry position (Figure 2) and attach it to the
plate, pressing along the sides until you
hear the four small side hooks click.
Fit Ariston Sensys (if present, otherwise
insert the cover found in the package) on
the base, pushing it gently downwards.
