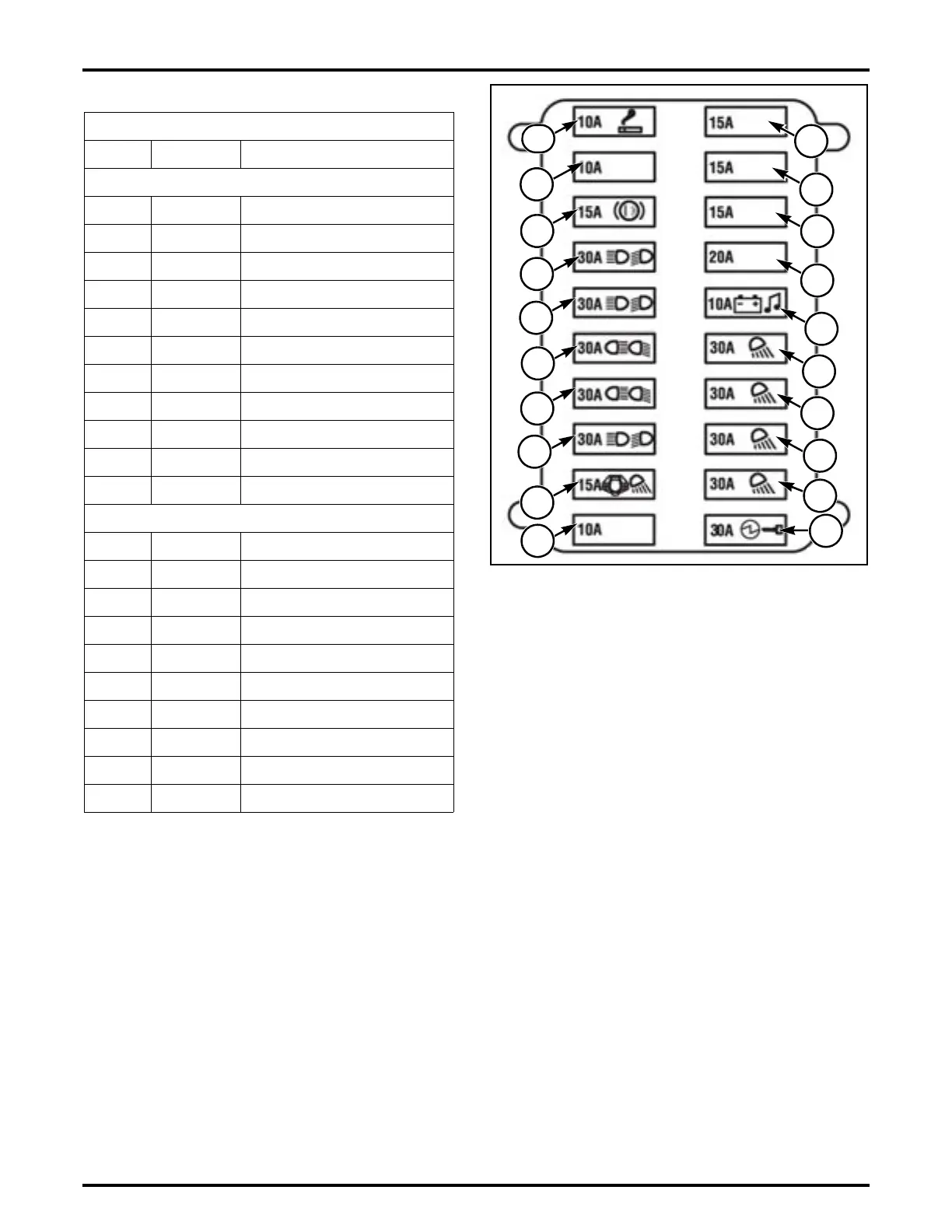

FIG. 42: Fuse Block 1
FIG. 42
R060811002
1
2
3
4
6
7
8
9
5
10
20
19
18
17
16
15
14
13
12
11
Fuse Block 1
Item Rating Description
Switched Battery
1 10 Amp Cigar Lighter
2 10 Amp Not used
3 15 Amp Brakes
4 30 Amp Light Module Front
5 30 Amp Light Module Front
6 30 Amp Light Module Rear
7 30 Amp Light Module Rear
8 30 Amp Light Module Front
9 15 Amp Trailer Lights
10 10 Amp Not used
Item Rating Description
Battery +
11 15 Amp Not used
12 15 Amp Not used
13 15 Amp Not used
14 20 Amp Not used
15 10 Amp Radio Battery Power
16 30 Amp Roof Light Module
17 30 Amp Roof Light Module
18 30 Amp Roof Light Module
19 30 Amp Roof Light Module
20 30 Amp Power Port
