79033093 D Rev. 01-33
Introduction

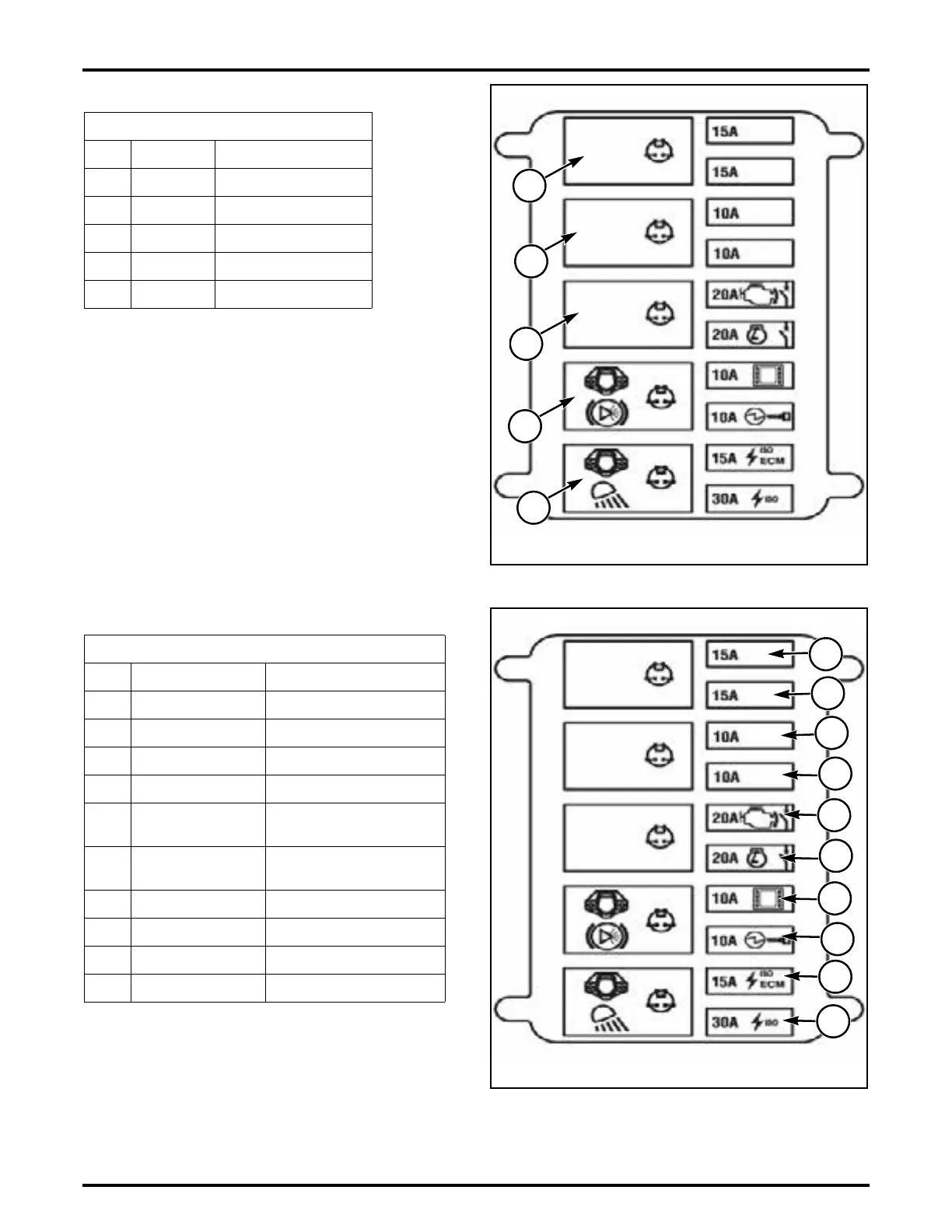

FIG. 44: Fuse/ Relay Block 1
FIG. 45: Fuse/ Relay Block 1
FIG. 44
Fuse/Relay Block 1
Item Relay Description
1 35 Amp Not used
2 35 Amp Not used
3 35 Amp Not used
4 35 Amp Italian Trailer Brakes
5 35 Amp Trailer Work Lights
FIG. 45
Fuse/Relay Block 1 - Battery +
Item Fuse Description
1 15 Amp Not used
2 15 Amp Not used
3 10 Amp Not used
4 10 Amp Not used
5
20 Amp - Circuit
Breaker
Engine CTRL
6 20 Amp - Circuit
Breaker
Transmission ABL
7 10 Amp Monitor (Monitor Bar)
810 Amp Key Power
9 15 Amp ISO ECU Power
10 30 Amp ISO Power
