Engine Components
02-4 79033093 D Rev.

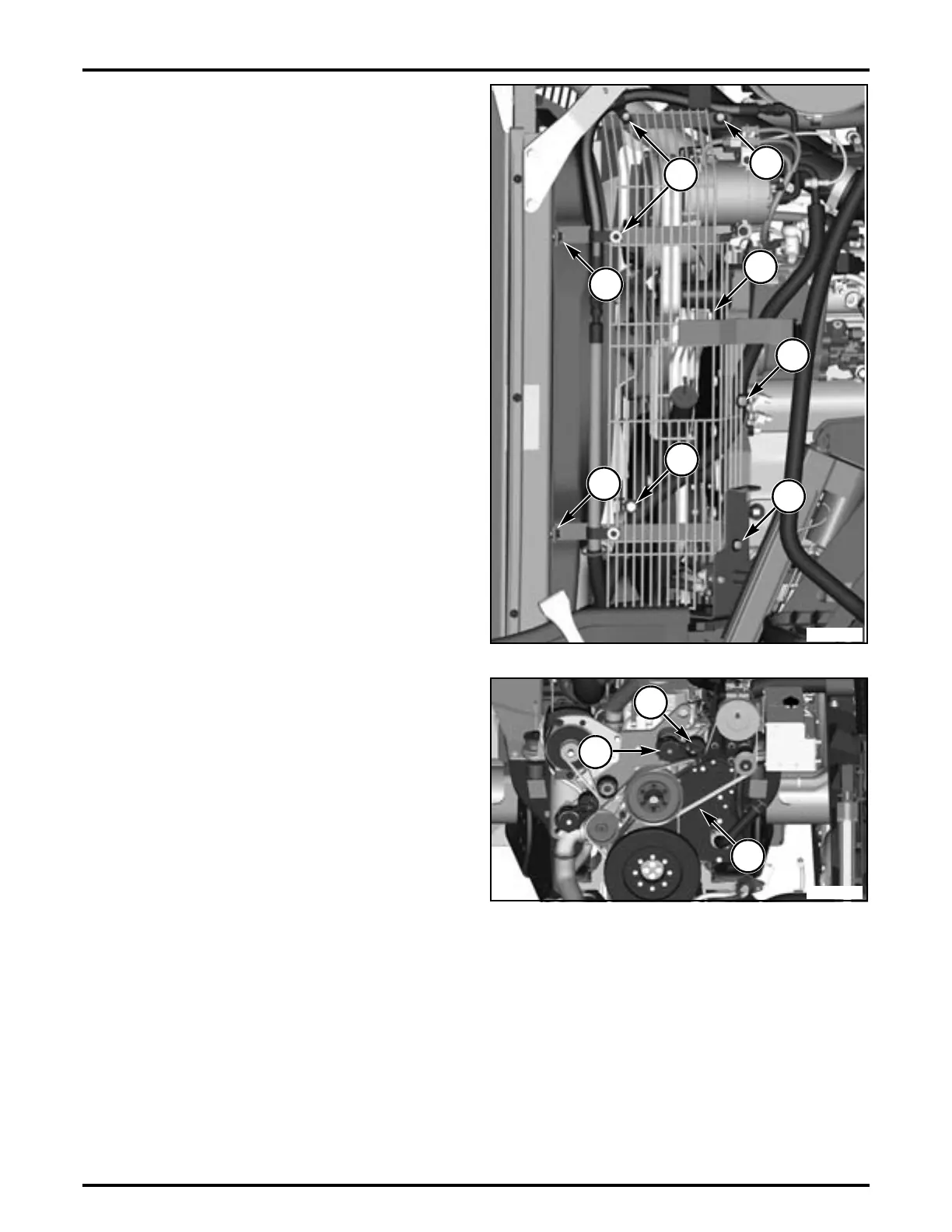

FIG. 6: Remove left-hand guard.
Remove loop clip bolts (1) and remove loop clips.
Remove mounting bolts (2) and remove guard (3).
FIG. 7: Air conditioning compressor serpentine belt
removal.
m
WARNING: Equipment or parts under
spring tension can cause bodily injury. Use
caution in releasing belt tension.
Use a ratchet wrench in the square hole (1) on the belt
tensioner (2) and turn counter clockwise to relieve belt
tension. Remove serpentine belt (3). Slowly release the
belt tensioner to relax into a neutral position.
NOTE: Be sure to allow enough room for the swing of the
ratchet to allow belt tensioner to relax into a
neutral position.
Carefully remove air conditioning serpentine belt over the
fan.
FIG. 6
FIG. 7
