Correct Installation

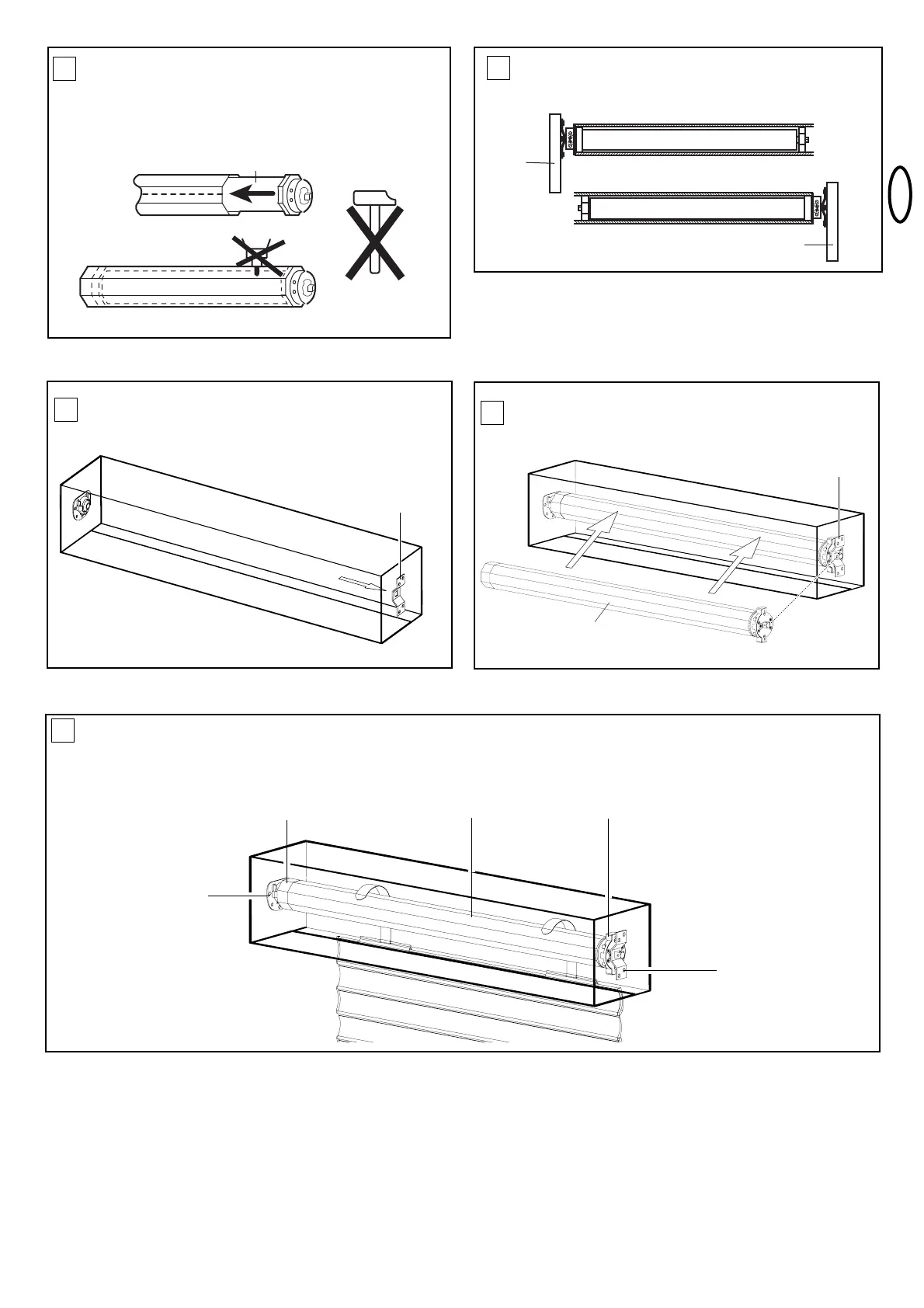

The illustration shows the motor (a), the wall bracket on the drive side (b), the steel tube (c), the end cap (d) and the opposite tube bracket (e).
H
a
b
c
d
e
Secure the mounting bracket (6) to the wall
(use suitable screws and plugs).
6
F
Insert the motor (a) into the mounting bracket (6) and secure it.
6
a
G
D
Push the motor (1) completely into the tube. The limit switch
operates only if the drive unit is fully inserted. Ensure that the
adapter ring is pushed fully home. Do not force it or strike it.
Do not damage the tubular motor by drilling!
1
D
E
Proceed according to the specific requirements for
left-sided (a) or right-sided (b) operation.
E
a
b
