Installation
Dish Table Connections
CAUTION:
Do not attach the dish tables until the dishwasher is set in its permanent location.
Inner wall of
wash tank
Dish table flange
Drill holes, apply sealant,
& fasten flange to wash tank
Side
panel

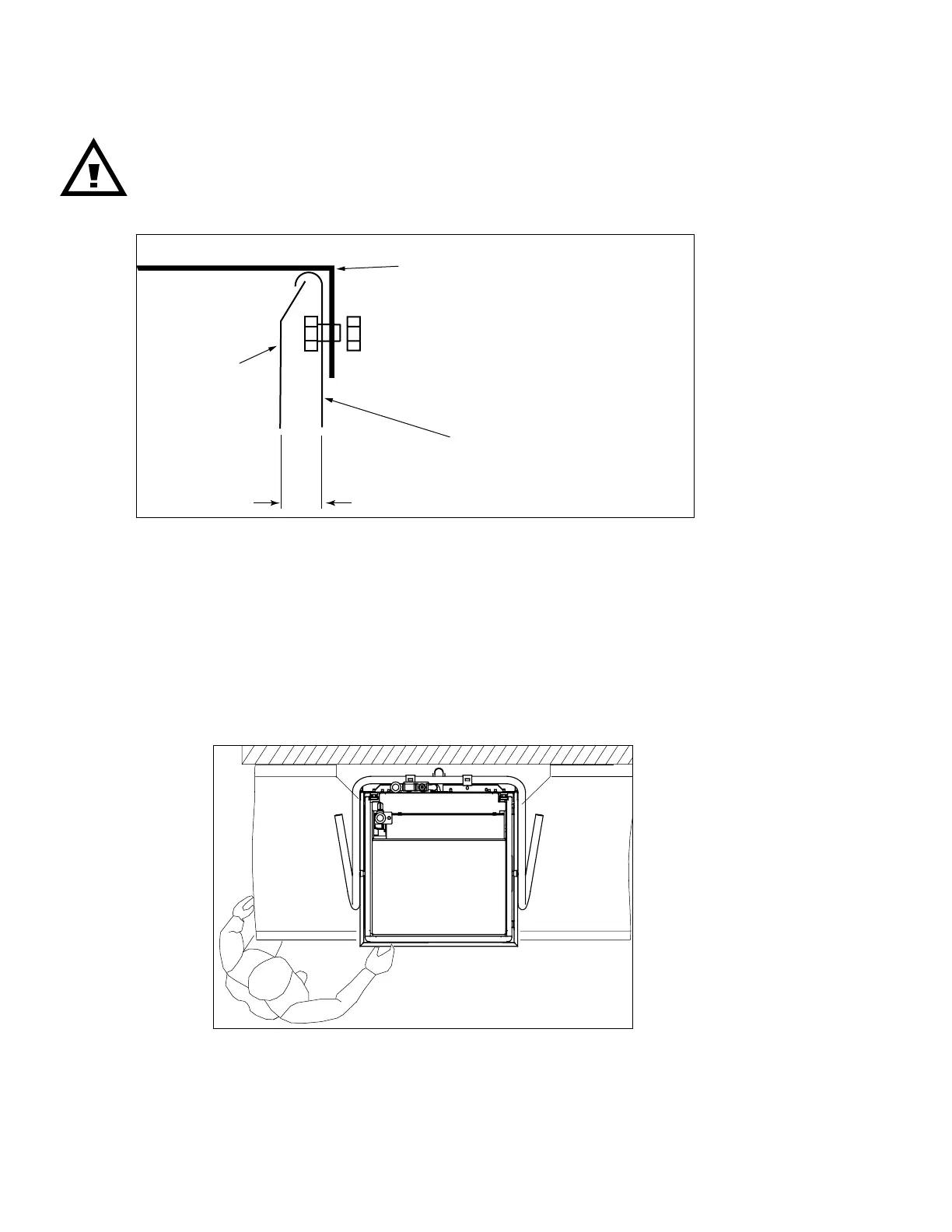

Fig. 2
Dish table Dish table
Fig. 3
Level the dishwasher and dish tables to the required height. Fit the dish table flanges over the
ends of the dishwasher tank and mark two hole locations. Drill 1/4" holes through the table
flange and the dishwasher tank. Apply sealant between the table flanges and the wash tank
and install stainless steel 1/4-20 fasteners to secure.
2
