Installation
Electrical Connection - Single and Three Phase
WARNING:
Electrocution may occur when working on energized circuits.
Disconnect power at the main breaker or service disconnect switch,
then lock out and tag it to indicate that work is being performed
on the circuit.

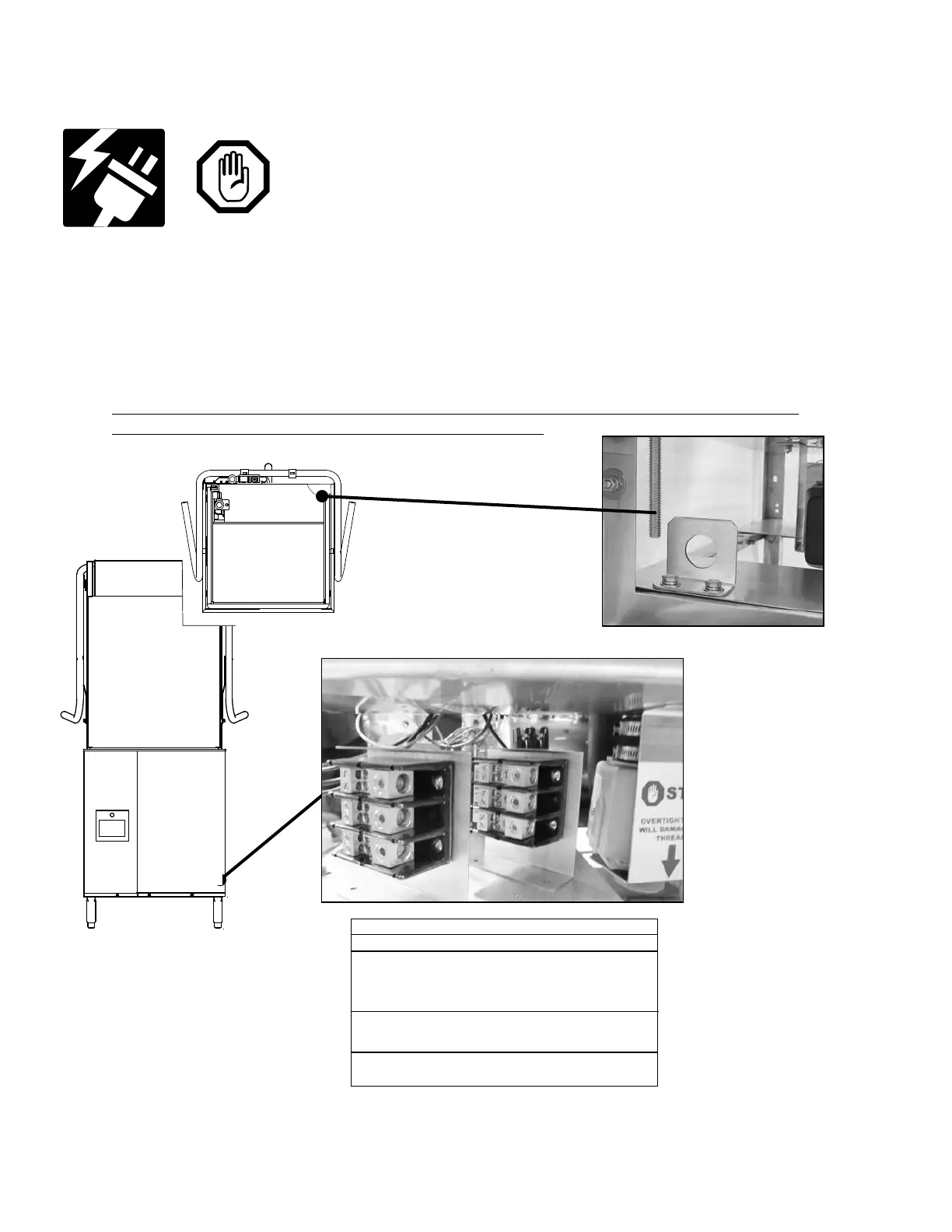

1. Remove the right and front panels and position the machine near the final location.
2. Route conduit to the mounting bracket located at the right rear corner of the machine
(see Fig. 9). Be sure to leave a 6 foot / 2 meter service loop to the machine.
3. Remove the right and front panel to access the main terminal blocks. The machine may
have a one or two point electrical connection.
4. Follow the Machine Electrical Connection Data Plates for the terminal block connections.
The data plates are glued in front of the blocks (Fig. 11).
Fig. 11
Fig. 9
FRONT VIEW
TERMINAL
BLOCKS
Volt: 208-240 Amp: 39-34Ph: 3 Hz: 60
2-Point Booster Connection Data Plate
Mod: DH6000T Series: VHR
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Fig. 10
8
To Next Page
