DET
INJECTION POINT
PROBE
Fig. 21
Fig. 22
SIGNAL
ONLY
COMMON
NEUTRAL
120VAC
1.5 A
MAX.
DETERGENT
120VAC
1.5 AMP
MAX.
RINSE AID
120VAC
1.5 AMP
MAX.
GROUND
120VAC
FACTORY
USE ONLY
GROUND
LINE
POWER
WASH TANK CAPACITY: 10 US GAL/8.3 IMP. GAL/38 L
SIGNAL ENABLED DURING WASH CYCLE.
TWO 7/8" DIAMETER HOLES AT LOWER RIGHT REAR
CORNER OF TANK.
- TOP HOLE IS DETERGENT INJECTION
- BOTTOM HOLE IS DETERGENT PROBE.
120VAC FUSE BLOCK-1.5 AMP-
MAX LOAD DETERGENT SIGNAL
CONNECTION. LOCATED ON FRONT
BASE.

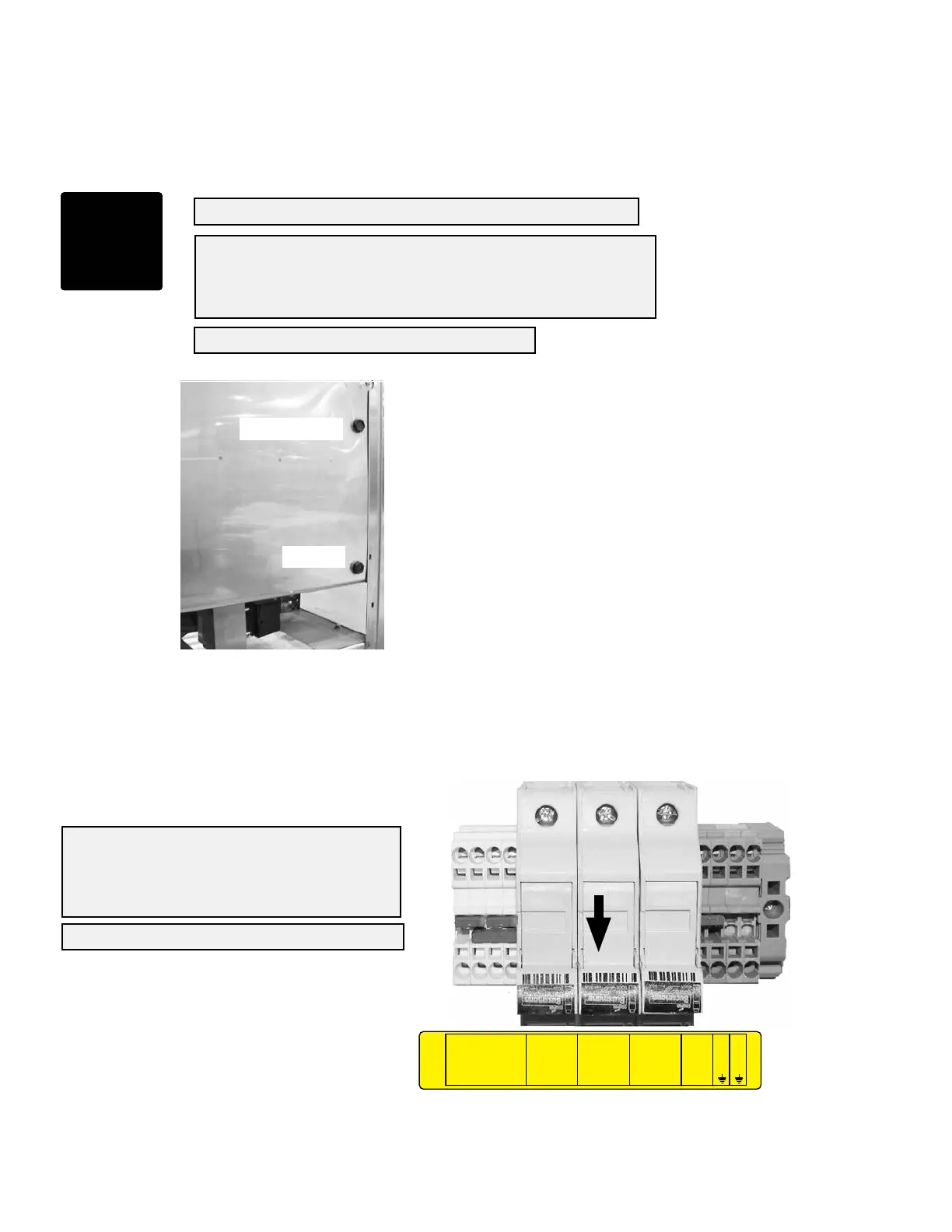

Detergent Probe and Injection Point for Chemical
Dispensing System by others.
Installation
Detergent Signal for Chemical Dispensing System by
others.
SIGNAL ENABLED DURING WASH CYCLE.
18
