Installation

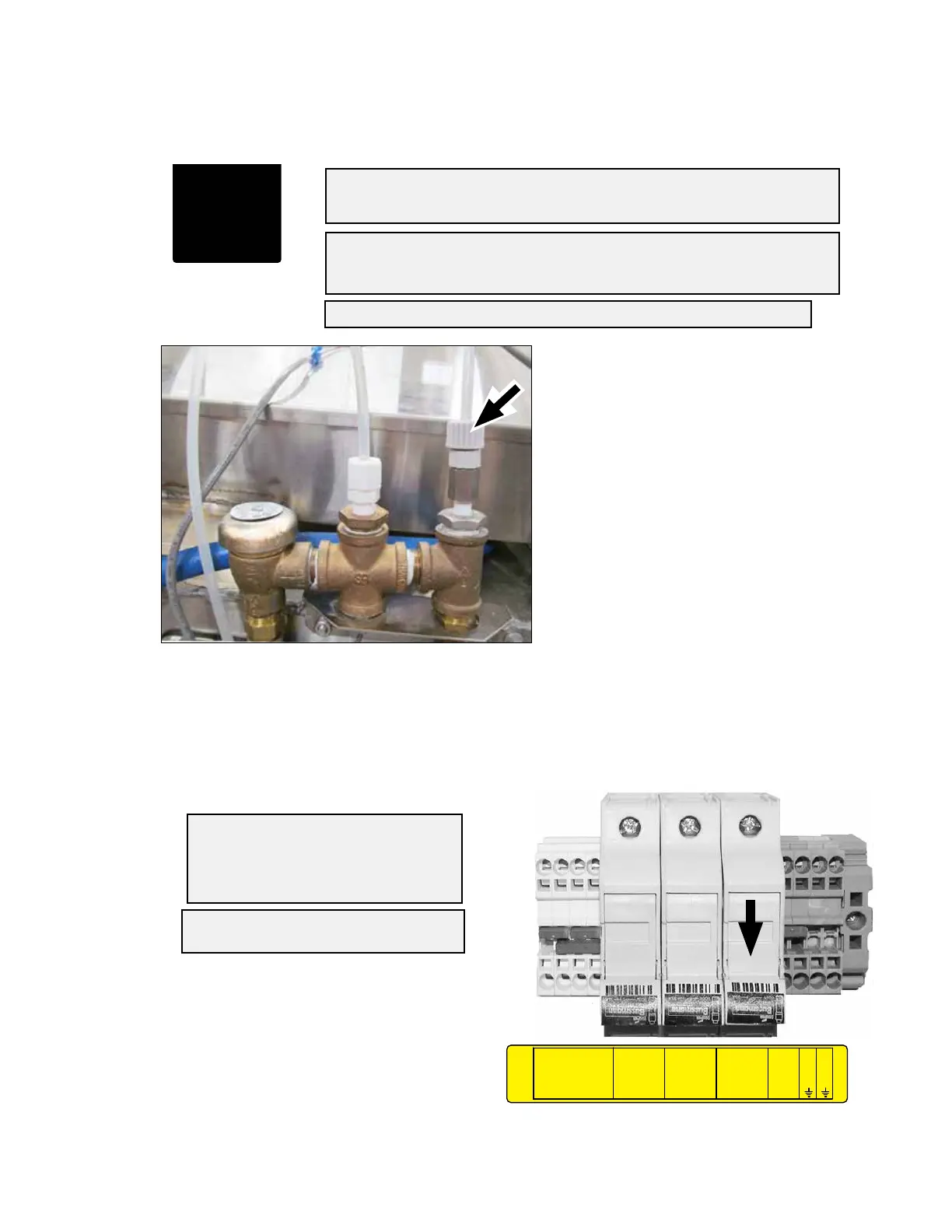

Fig. 23
Rinse-aid Injector for Chemical Dispensing System by
others.
R /A
Fig. 24
SIGNAL
ONLY
COMMON
NEUTRAL
120VAC
1.5 A
MAX.
DETERGENT
120VAC
1.5 AMP
MAX.
RINSE AID
120VAC
1.5 AMP
MAX.
GROUND
120VAC
FACTORY
USE ONLY
GROUND
LINE
POWER
120VAC FUSE BLOCK-1.5 AMP-
MAX LOAD RINSE-AID SIGNAL
CONNECTION. LOCATED ON
FRONT BASE.
1/8" NPT PIPE PLUG AT THE REAR OF THE MACHINE
NEAR THE VACUUM BREAKER FOR RINSE-AID INJECTION.
STD. RINSE/RACK: .73 US GAL/.61 IMP. GAL/ 2.8L
POT,PAN,RINSE/RACK .73 US GAL/.61 IMP.GAL/ 2.8L
SIGNAL ENABLED DURING FINAL RINSE CYCLE.
SIGNAL ENABLED DURING FINAL
RINSE CYCLE.
Rinse-aid Signal for Chemical Dispensing System by
others.
19
