Champion DH6000T Installation Manual

Installation
LINE IN
L1
L2
L1
L2
1 Phase Power Connection
208-240V/60/1
GND
NOT
USED
NOT
USED
3 Phase Power Connection
208-240/480V/60/3
GND
LINE IN
L1
L2
L3
L1
L2
L3

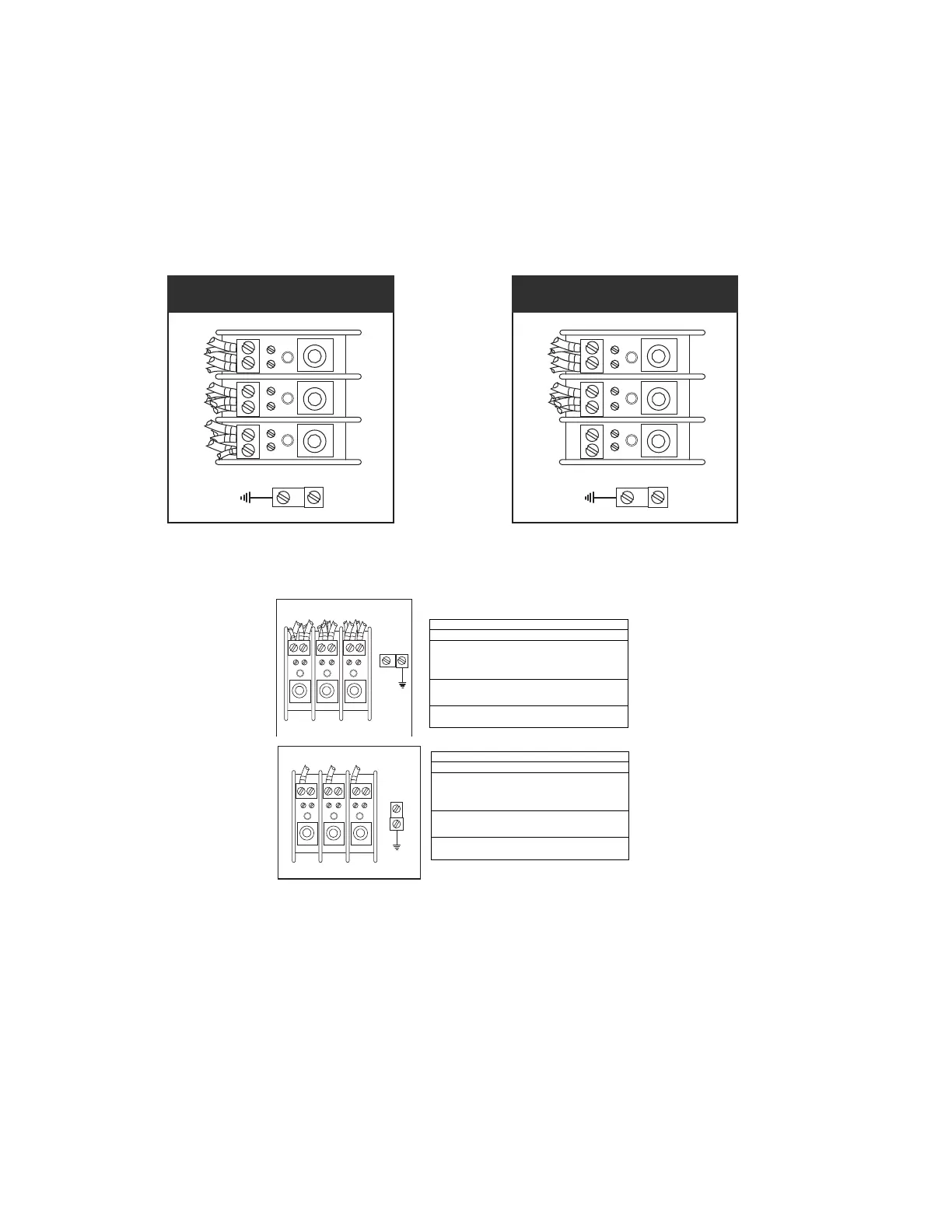

Fig. 13 - 1PH terminal block
Fig. 12 - 3PH terminal block
1. Machine wiring can be converted from a single to a two point input power connection
by installing a eld conversion kit, P/N 901168.
2. New electrical connection data plates must be applied in front of the input terminal blocks.
3. Refer to end of this manual for conversion instructions.
GND
LINE IN
L3
L2L1
L3
L2L1
LINE IN
L3
L2L1
L3
L2L1
GND
Volt: 208-240 Amp: 38-34Ph: 3 Hz: 60
2-Point Machine Connection Data Plate
Mod: DH6000T Series: M2-STD
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Volt: 208-240 Amp: 39-34Ph: 3 Hz: 60
2-Point Booster Connection Data Plate
Mod: DH6000T Series: M2-STD
Minium Supply Conductor Ampacity
For supply connection, use copper connectors in accordance
with local electrical code. Rated Minimum 90°C (194°F).
50/50 AMPS
50/50 AMPS
Maximum Supply Overcurrent
Protection Device
Overcurrent Protection Device: Time Delay or Inverse Time
Circuit Breaker
Fig. 14 - 2-Point data plates
Single to Two Point Power Connection Conversion
9
