Champion DH6000T Installation Manual

CAUTION:
Warewashing chemicals are supplied by
others. Always follow supplier's instructions
for proper handling and use.
INJECTION POINT
PROBE
Detergent Dispensing System by others:
Detergent Signal for Dispensing System by others.
120VAC
1.0 AMP
MAX.
COMMON
NEUTRAL
120VAC
120VAC
2.0 AMP
MAX.
120VAC
2.0 AMP
MAX.
FAN
SIGNAL
RINSE AID
SIGNAL
DETERGENT
SIGNAL
SIGNAL ONLY
• 120VAC FUSE BLOCK
• 2.0 AMP MAX LOAD DETERGENT SIGNAL CONNECTION.
• LOCATED ON LEFT SIDE OF COMPONENT PANEL
• SIGNAL ENABLED DURING WASH CYCLE.
• WASH TANK CAPACITY: 10 US GAL/8.3 IMP. GAL/38 L
• TWO 7/8" DIAMETER HOLES ON RIGHT-SIDE OF TANK
• TOP HOLE IS DETERGENT INJECTION
• BOTTOM HOLE IS DETERGENT PROBE

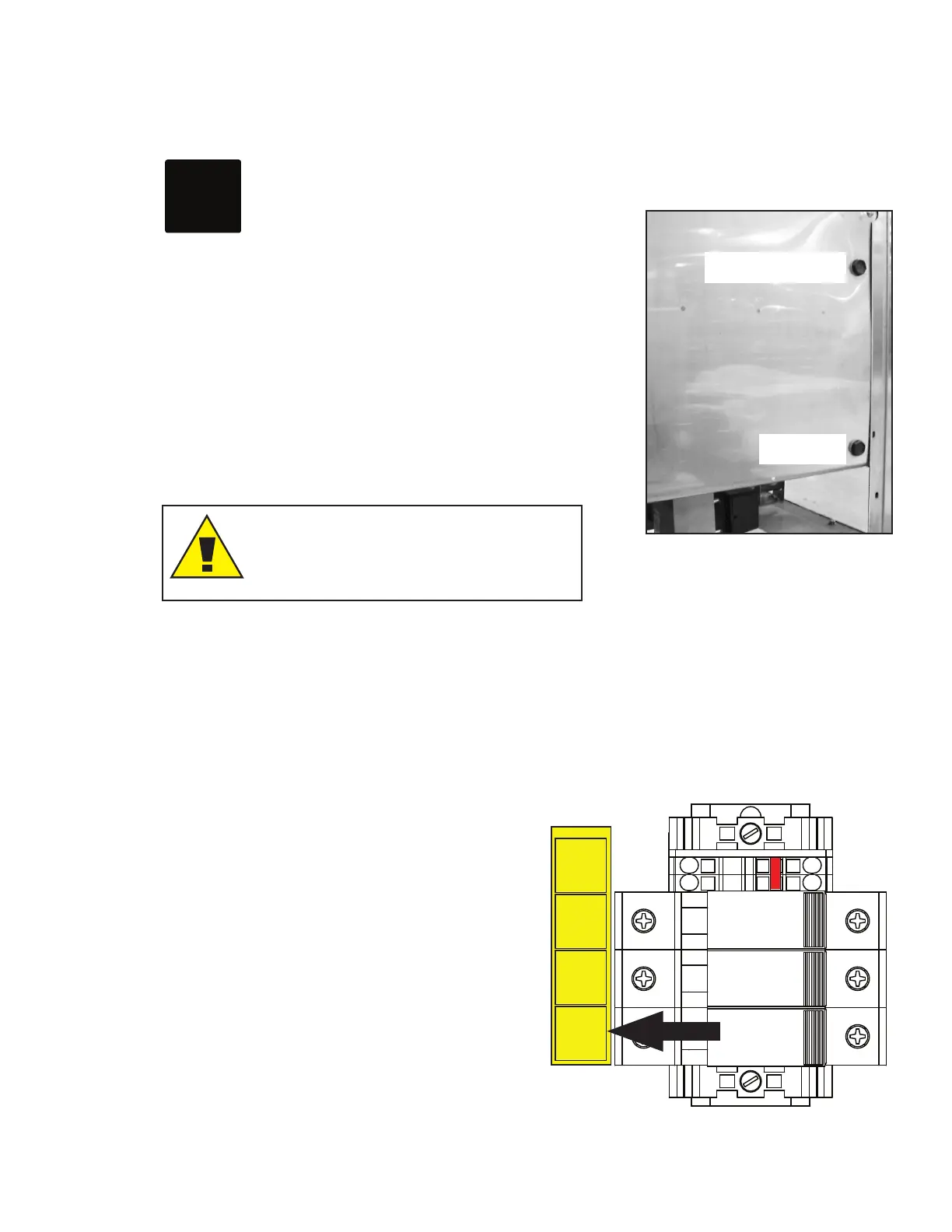

Fig. 18 - Injection and probe provisions
Fig. 19 - Detergent signal connection
DET
Detergent
Installation
11
