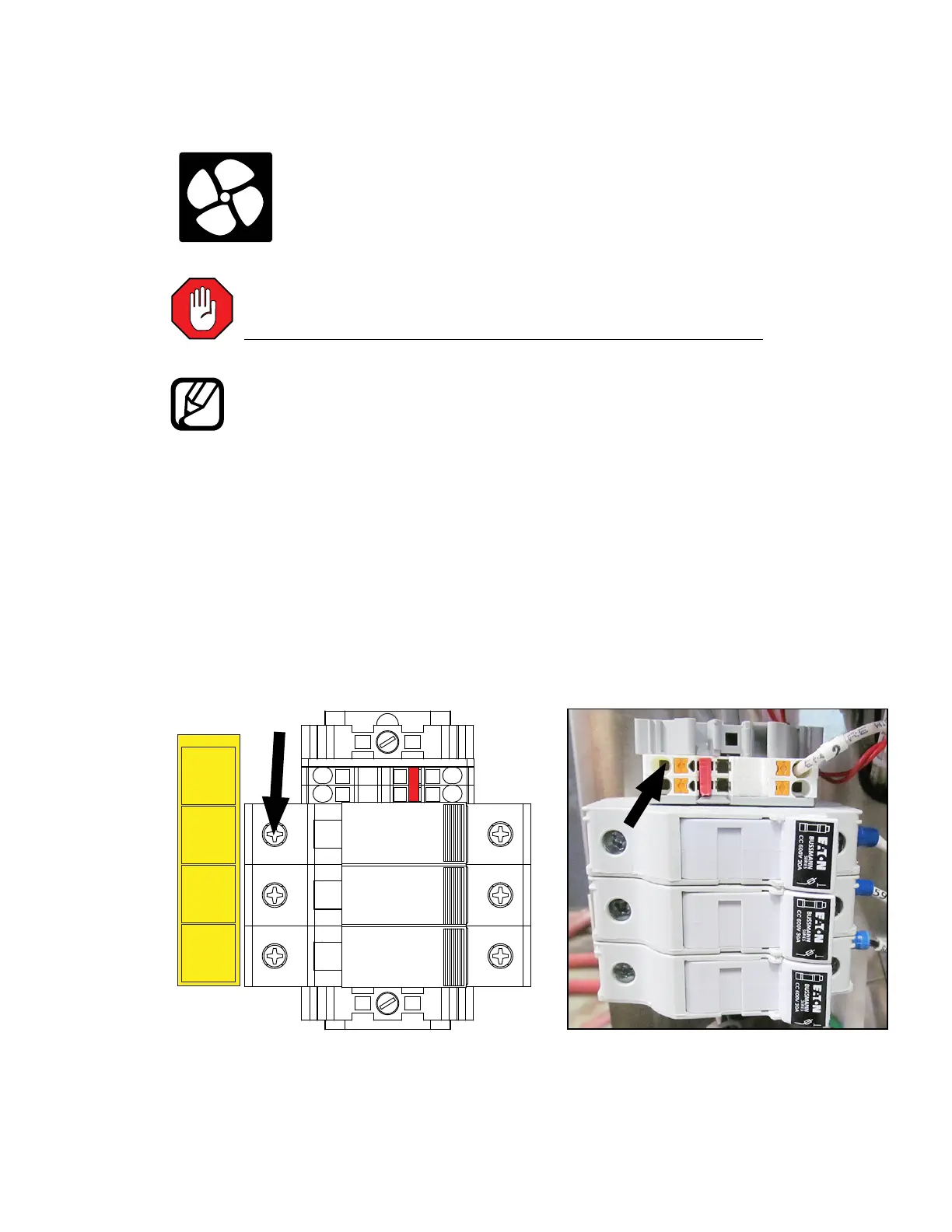

Ventilation (Vent Fan Control)
The standard DH6000 and DH6000T are equipped with a fused signal
connection for an external vent fan contactor (supplied by others).
STOP:
The 120VAC signal is limited to a 1.0 AMP maximum load.
DO NOT CONNECT A VENT FAN MOTOR TO THE SIGNAL TERMINALS.
To connect the external vent fan contactor:
1. Disconnect all power to the machine.
2. Remove the lower front panel and locate the three fuse blocks on the machine base.
3. Connect one wire of the external vent fan contactor to the FAN SIGNAL fuse block.
4. Connect the other wire to a COMMON NEUTRAL terminal.
5. Connect the external vent fan contactor coil wires.
6. Re-install the lower panels.
7. Restore power to the machine.
NOTE:
The 120VAC signal is available whenever the dishwasher green power switch is ON.
120VAC
1.0 AMP
MAX.
COMMON
NEUTRAL
120VAC
120VAC
2.0 AMP
MAX.
120VAC
2.0 AMP
MAX.
FAN
SIGNAL
RINSE AID
SIGNAL
DETERGENT
SIGNAL
SIGNAL ONLY
Installation
Vent Fan Control Supplied by others.
Fig. 22- Rinse aid signal connection
13
