Supervisor Menus - Optional Champion Chemical Dispenser Set-up
Optional Champion Chemical Dispenser Set-up (continued)
IN-LINE and TANK Sensors Normal Operation:
1. Detergent pump output = 3ml/sec.
2. Machine lls.
3. When the lower oat is satised, detergent
pump runs the ll set point for initial charge.
4. The detergent pump runs 3 secs. at the
beginning of each wash cycle.
IN-LINE and TANK Sensor Operation Error:

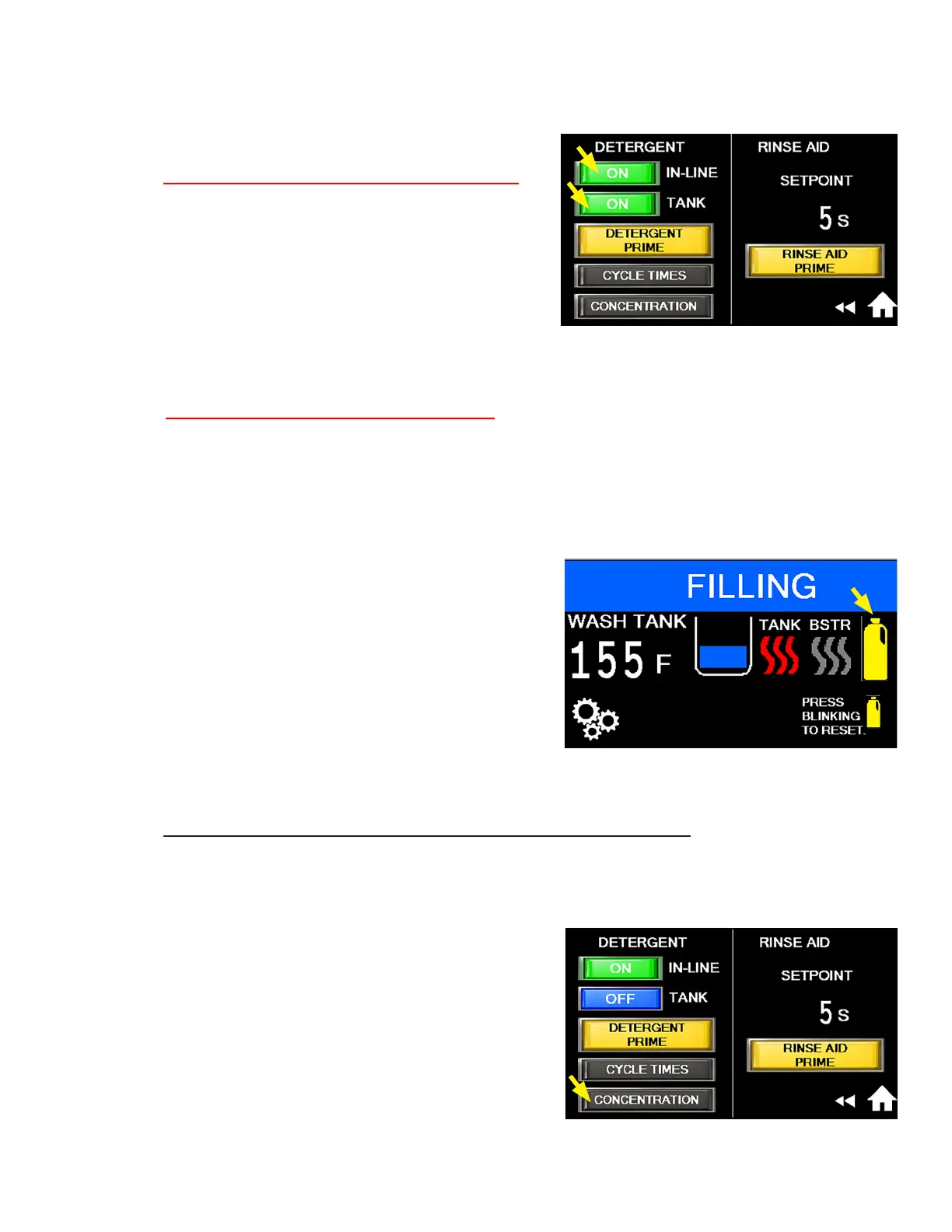

Fig. 36 - In-line and Tank sensor selected.
Fig. 37 - Tank only or In-line and Tank sensor selected.
1. The detergent concentration is controlled by the detergent sensor(s) and set-up by
pressing the "CONCENTRATION" button, (Fig. 33) then setting the needed values
according to the charts on page 11 and tritation.
SET DETERGENT CONCENTRATION --In-line Sensor shown ON (Fig.38):.
Fig. 38 - Detergent Concentration
(continued on next page)
Instructions for the Supervisor and Chemical Supplier
1. If machine has run one cycle, and tank temperature is 150ºF/65.6ºC or greater, and,
the tank sensor is not satised, then the detergent pump will pump the cycle time set
point.
2. Detergent pump waits 20 secs. and pumps the cycle time set point again or until
the sensor is satised.
3. When the wash pump is running, the
detergent pump will run If the sensor
dectects the detergent is below its
setpoint for 5 consecutive seconds.
4. This is repeated for two minutes or until
tank sensor is satised. The ashing
yellow bottle "LOW DETERGENT ALERT"
will appear if tank sensor is not
satised within two minutes.
