Champion DH6000T Installation Manual

CAUTION:
The machine will drain automatically when the dishwasher power is turned o󰀨.
KIT PARTS: (1) SHIELD, CORNER SPLASH, P/N 337955, COMPOUND SEALING, P/N 104889, (2) SCREWS,
10-32 X 1/2" TRUSS HEAD, P/N 100097, (2) WASHER, FLAT, 10-32, P/N 107033, NUT, GRIP,
10-32 W/NYLON INSERT, P/N 107966
SPECIAL TOOLS: #21 or 5/32" Drill bit, Electric Drill

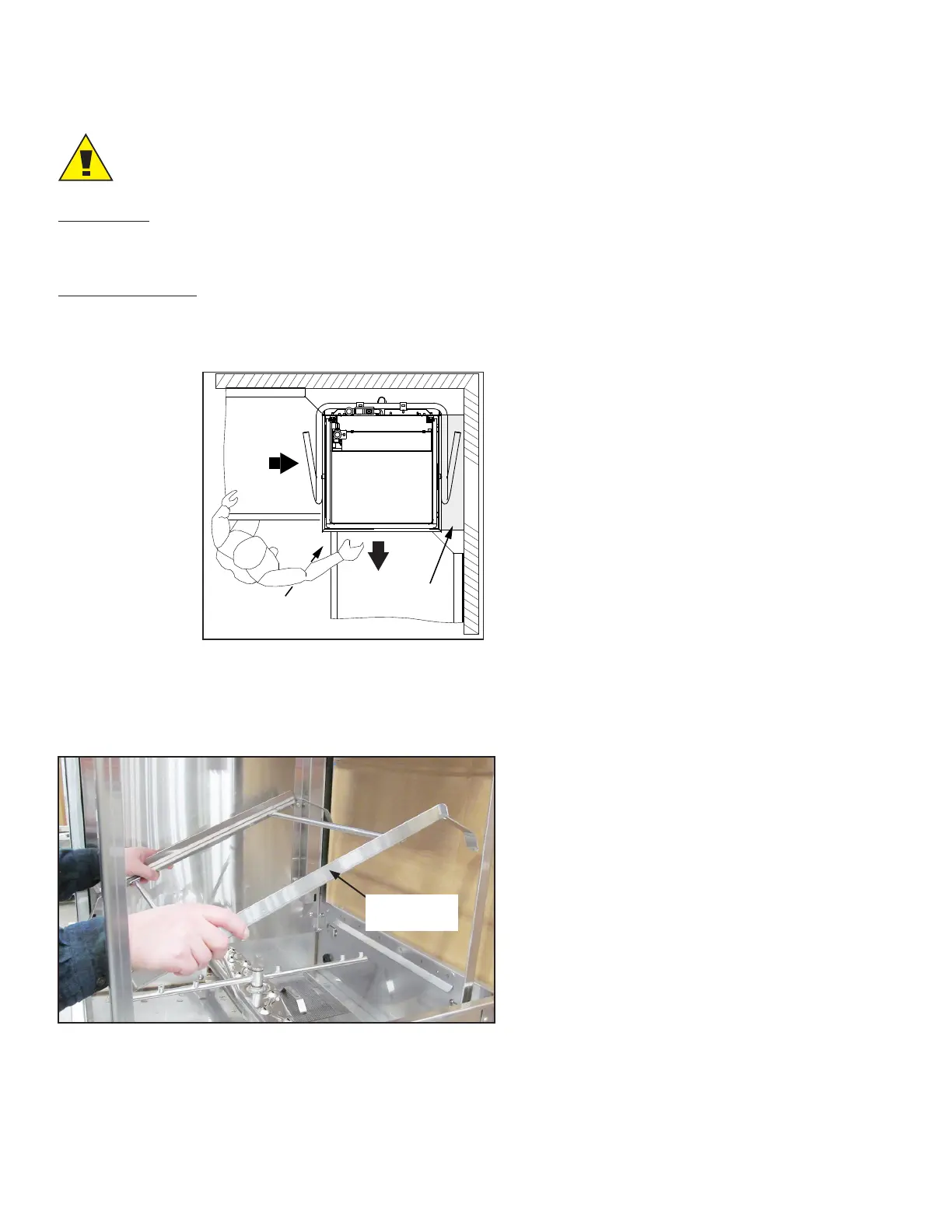

1. The splash shield is installed on the right-hand side of the dishwasher, (Fig.1).
2. Turn dishwasher power o󰀨; the machine will drain automatically. Open the doors.
3. Lift and remove the track assembly, (Fig. 2).
APPENDIX A: Installing DH6000T Corner Splash Shield Kit P/N 901114
INSTALLING DH6000T CORNER SPLASH SHIELD KIT, P/N 901114
36
Track
Assembly
Control
Panel
Splash
Shield
Wall
Fig. 1
Fig. 2
