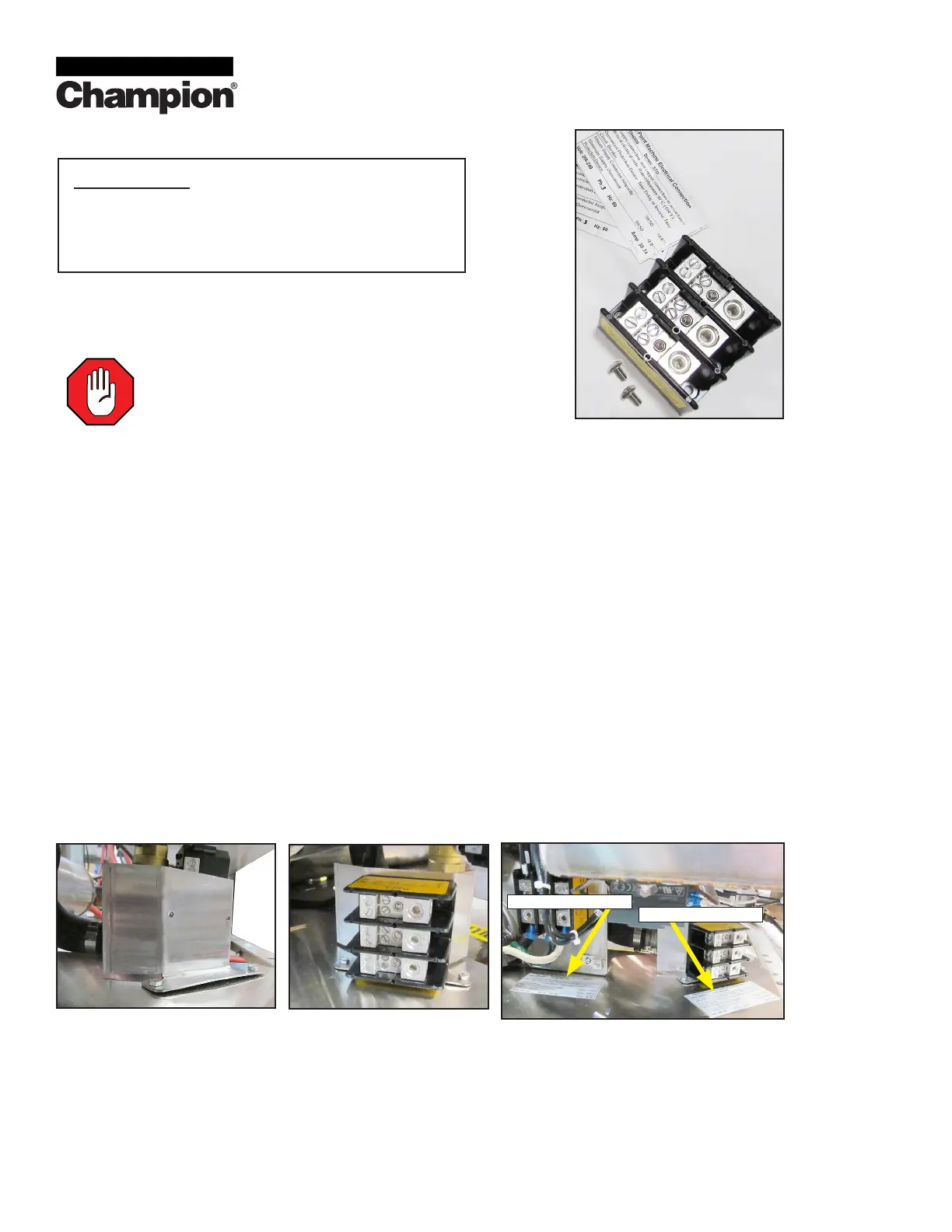

Kit P/N 901242, DH6000/T- M2 Series
1-Point to 2-Point Terminal Block Conversion
KIT PARTS:
(1) P/N 111833, Input Terminal Block
(2) P/N 100007, Screw, 10-32 x 3/8" Truss Hd.,
(1) *Label, Matrix 2-Point Electrical Data Plate,
(1) P/N 117524, Instruction Sheet
* THE DATA PLATE MUST BE CUSTOM PRINTED AT THE
FACTORY AND ADDED TO THE KIT BEFORE SHIPMENT.
1. Check the contents of the kit, (Fig. 1). The new data plates must be included. Contact Champion
National Service in USA @ 1-(800) 858-4477 or in Canada @ 1-(800) 263-5798
2. Disconnect power to the dishwasher and remove the front and right-side panels.
Locate booster terminal block mounting bracket on right front of machine base, (Fig. 2).
3. Install terminal block included in the kit to the existing bracket using kit screws, (Fig. 3).
4. Disconnect booster wires L1, L2, and L3 on main power terminal block and route to new
booster terminal block and connect.
5. Connect booster line power to new terminal block.
6. Apply "2-Point Machine" connection data plate over the existing data plate and apply the
"2-Point Booster" connection data plate in front of the booster terminal block, (Fig. 4).
7. Restore power and check machine operation.
8. Replace panels and apply new machine data plate over existing on lower front panel.
9. Restore power and check operation.
10. Conversion is complete.
Fig. 3 - Booster terminal block
Fig. 2 - Mounting bracket
APPENDIX B: Kit P/N 901168, 1-Point to 2-Point Input Block Conversion
WARNING:
Disconnect all power to the dishwasher
before working on the machine.
Fig. 1
Machine data plate
Booster data plate
Fig. 4 - Apply 2-Point data plates
P/N 117524 rev.-
Page 2 of 2
