ChamSys MagicQ MQ100 Pro User Manual

www.chamsys.co.uk MagicQ Console Quick Start Manual
4 of 34
Connections

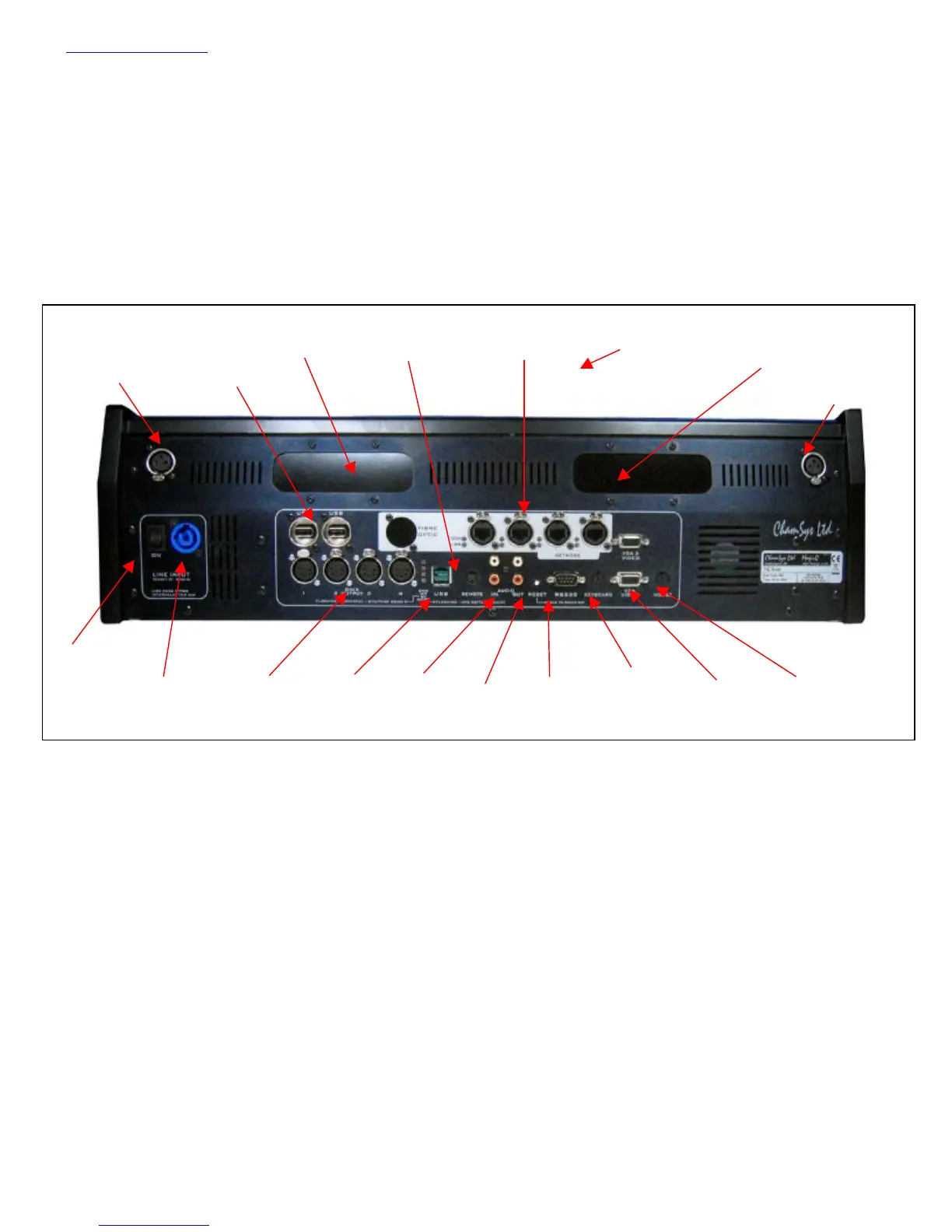

The picture below shows the connections on a MQ100 Pro console. The MQ200 Pro and MQ300 Pro have the same
connectors with the addition of extra console lamp sockets.
The expansion module slots can be fitted with MagicQ expansion modules such as the twin DMX512 output module,
and other future expansion modules.
Power socket
(110-240Vac)
Power switch
Audio
ports
Console lamp
USB
port
butto
Network
ports
Monitor
port
Mouse
port
Serial
port
Reset
button
Keyboard
port
Remote
trigger
Expansion
module
Expansion
module
USB port
under arm-rest
Console lamp
DMX
ports
USB
ports
MQ100 Pro
