Chandler 543 - Page 18

BASIC CO-ON PARTS

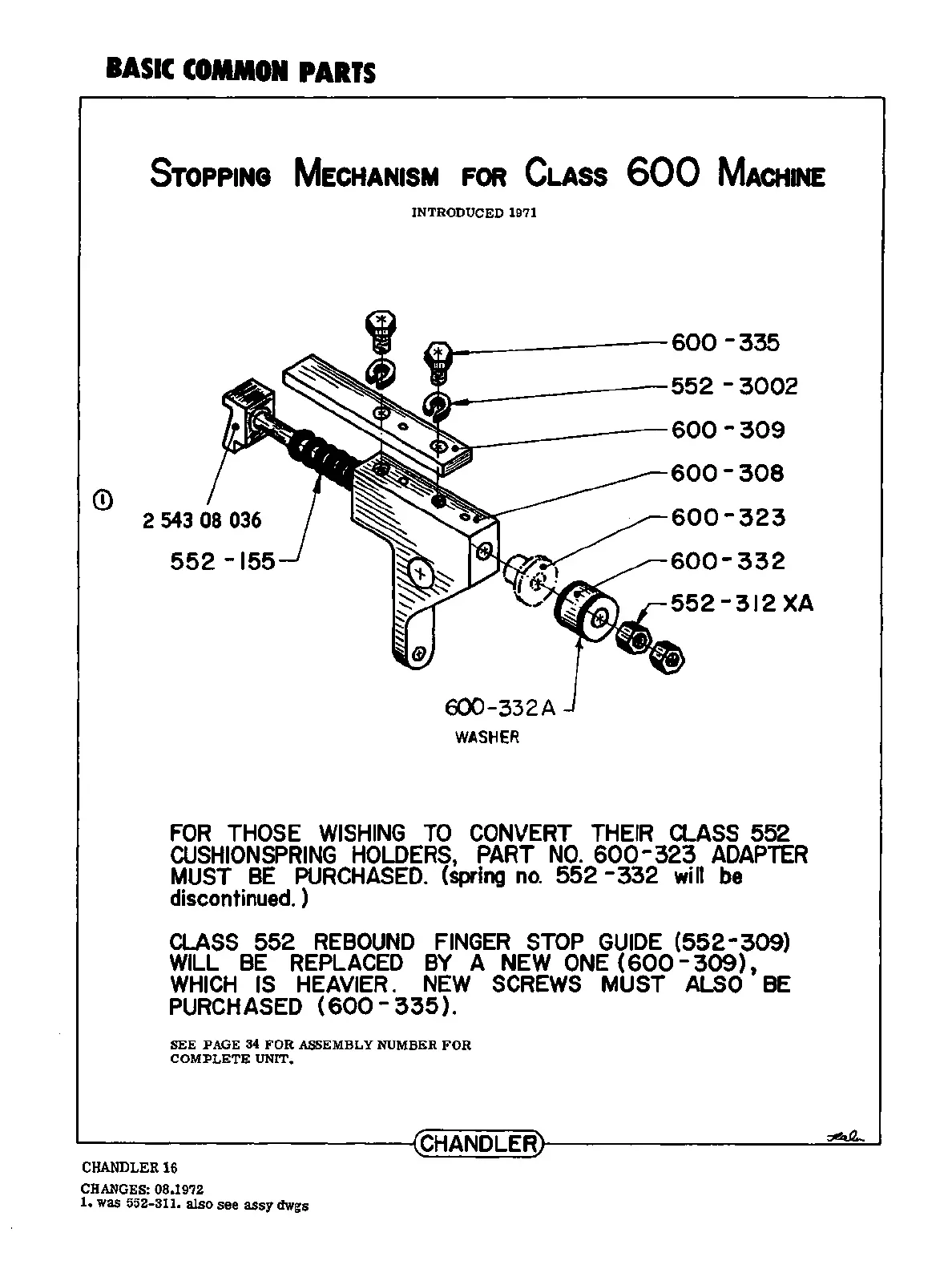

STOPPING MECHANISM FOR CLASS 600 MACHINE
INTRODUCED 1971
~-----------600-335
~~---------552-3002
~~---------600-309
600-332A
WASHER
FOR THOSE WISHING TO CONVERT THEIR CLASS 552
CUSHIONSPRING HOLDERS, PART NO. 600-323 ADAPTER
MUST BE PURCHASED. (spring no. 552 -332 will be
discontinued. )
CLASS 552 REBOUND FINGER STOP GUIDE (552-309)
WILL BE REPLACED BY A NEW ONE ( 600 - 309) ,
WHICH IS HEAVIER. NEW SCREWS MUST ALSO BE
PURCHASED (600- 335).
SEE PAGE 34 FOR ASSEMBLY NUMBER FOR
COMPLETE UNIT.
~----------------~CHANDLER~--------------~~
CHANDLER16
CHANGES: 08ol972
1. was 552-311. also see assy dwgs
From the library of: Superior Sewing Machine & Supply LLC
