Channel Plus 8051 User Manual

Typical 3x8 KSU
(Panasonic KX-T30819)
Standard RJ-14 jumper cables
(2 pair)
Connecting to a KSU
White/Orange Orange White/Blue Blue White/Green Green
RJ-45
RJ-11 RJ-11 RJ-11
CO 1 CO 2 CO 3
Create this custom cable by cutting off
one end of a standard Cat-5 jumper.
CAT-5 cables
To wallplates
located throughout
the house
From Telco
CO-1 CO3

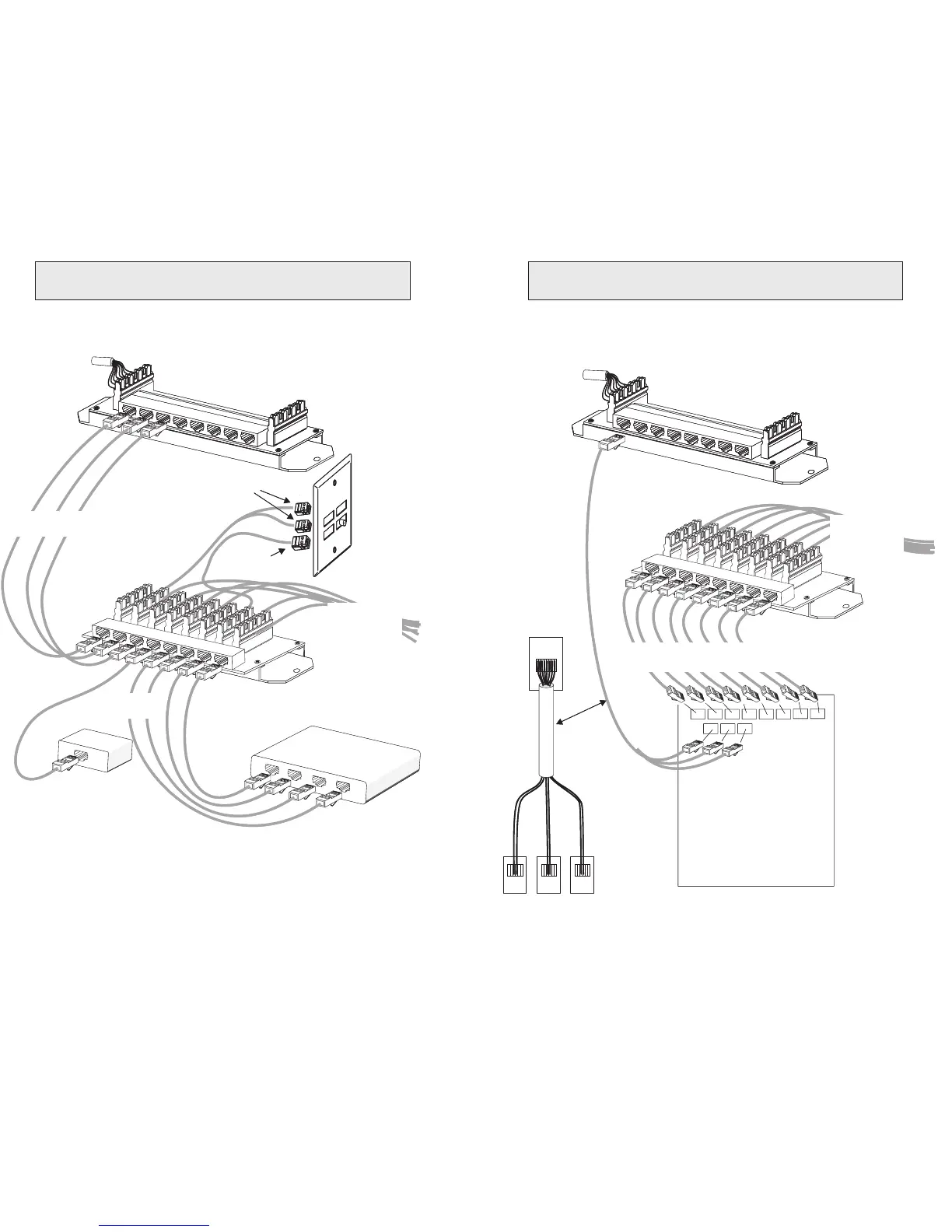

Structured wiring basics:
Model
8051
Model
8052
Structured wiring basics:
From Telco
CO1 - CO4
Ethernet Hub
ISDN Jack
(from Telco)
In this example, the house has plain old telephone service (POTS)
on 3 jacks, ISDN service on another, and an Ethernet network on
four other jacks. Jacks can be located throughout the house.
Changing from one type of service to another is as simple as
moving a jumper cable.
CAT-5 jumper
cables
CAT-5 jumper
cables
Changing some jacks to data distribution
CAT-5 cables
To wallplates
located throughout
the house
Typical wallplate
Jack 1 ... CO 1/2
Jack 2 ... CO 3/4
Jack 3 ... Ethernet
Jack 4 ... Coax
RJ-14
RJ-45
Model
8051
Model
8074
Model
8052
Typical 3x8 KSU
(Panasonic KX-T30819)
Standard RJ-14 jumper cables
(2 pair)
Connecting to a KSU
White/Orange Orange White/Blue Blue White/Green Green
RJ-45
RJ-11 RJ-11 RJ-11
CO 1 CO 2 CO 3
Create this custom cable by cutting off
one end of a standard Cat-5 jumper.
CAT-5 cables
To wallplates
located throughout
the house
From Telco
CO-1 CO3
Structured wiring basics:
Model
8051
Model
8052
Structured wiring basics:
From Telco
CO1 - CO4
Ethernet Hub
ISDN Jack
(from Telco)
In this example, the house has plain old telephone service (POTS)
on 3 jacks, ISDN service on another, and an Ethernet network on
four other jacks. Jacks can be located throughout the house.
Changing from one type of service to another is as simple as
moving a jumper cable.
CAT-5 jumper
cables
CAT-5 jumper
cables
Changing some jacks to data distribution
CAT-5 cables
To wallplates
located throughout
the house
Typical wallplate
Jack 1 ... CO 1/2
Jack 2 ... CO 3/4
Jack 3 ... Ethernet
Jack 4 ... Coax
RJ-14
RJ-45
Model
8051
Model
8074
Model
8052
