2E

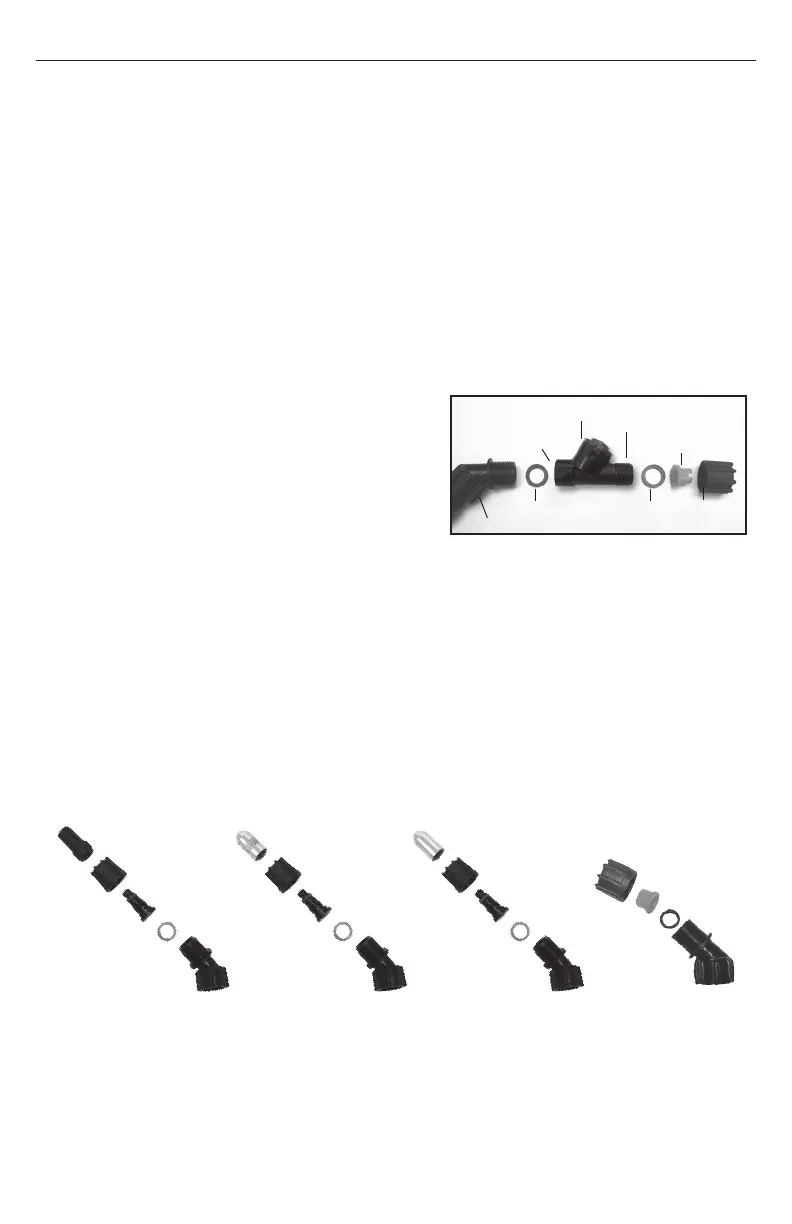

NOZZLE ASSEMBLY
Figure 1-3
Unscrew the nozzle cap (1) from the nozzle body (3) with retaining nut (2) fastened tightly to the elbow (5). Unscrew
the retaining nut (2). Push the nozzle body (3) with the nozzle gasket (4) out of the retaining nut (2). To reinstall the
nozzle, reverse the above instructions.
Figure 4
Unscrew the retaining nut from the elbow and push the fan nozzle tip and gasket out of the retaining nut. To reinstall
the nozzle, reverse the above instructions.
CF VALVE™ ASSEMBLY
Assemble nozzle gasket to inlet side of CF Valve™ and screw onto
the end of the elbow. Place the fan nozzle tip into the retaining nut
and then place the nozzle gasket on the fan nozzle tip flange. Screw
this assembly onto the outlet side of the CF Valve™. To uninstall the
CF Valve™, reverse the above instructions.
Inlet
(3/8 Thread)
CF Valve™
(1.5 BAR-21 psi)
Outlet
(3/8 thread)
Elbow
Nozzle
Gasket
Nozzle
Gasket
Fan
Nozzle Tip
Retaining
Nut
The CF Valve™ is intended to be used with a fixed nozzle. The Fan nozzle tip provided is rated @ .4 GPM @ 40psi.
1. Poly
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
Figure 1
Adjustable Poly
Nozzle
Figure 2
Adjustable Brass
Nozzle
1. Brass
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
Figure 4
Fan Nozzle
Nozzle
Gasket
Retaining Nut
Elbow
Fan Nozzle Tip
Figure 3
Extended Reach
Brass Nozzle
1. Brass
Nozzle Cap
2. Retaining
Nut
3. Nozzle
Body
4. Nozzle
Gasket
5. Elbow
SPRAYER COMPONENTS & USE INFORMATION
APPLICATIONS & USE FOR YOUR SPRAYER
Avoid using a sprayer for general cleaning purposes if plant protection or herbicide chemicals have already been used
in the sprayer. If a sprayer has been used for plant protection or as an herbicide, clean the sprayer completely (see
cleaning section) before using.
Plant Food: Use different spray patterns for optimum foliage feeding or for fungicide and pesticide application.
Herbicides: Reduce weeds and unwanted plants but avoid using the same sprayer for plant feeding or protection
without thoroughly cleaning (see cleaning section) the sprayer first.
General Household Use: Apply detergents, cleaning solutions, warm water (do not exceed 120°F/49°C) or nontoxic
household cleaning chemicals for carpets, floors, walls, glass, counter tops and ceilings. DO NOT use sprayer that has
been used with herbicides, pesticides or other toxic chemicals for household applications.
General Outdoor Use: Use the sprayer for cleaning windows or with a detergent for general purpose cleaning.
Chapin Backpack Sprayer Operator’s Manual - English
