Chapin 97661E - Page 10

Chapin Spot Sprayer Operator’s Manual - English

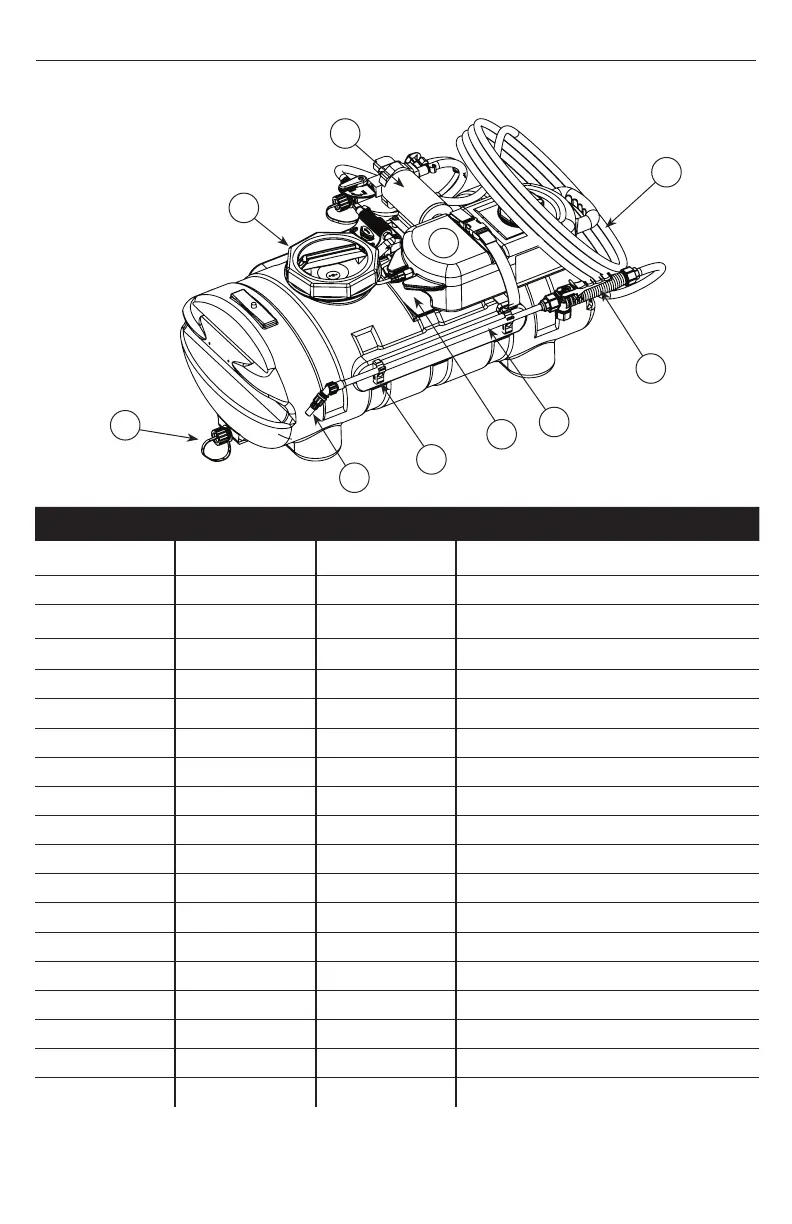

BREAKDOWN & PARTS LIST
REF NO. PART NO. QTY DESCRIPTION
1 6-9138 1 Pump Assembly, 2.5 GPM
2 6-9202 1 Pump Hardware Kit
3 6-8060 1 Tank Assembly, 1.33 Gallon
3 6-8061 1 Tank Assembly, 2.0 Gallon
4 6-8272 1 Faceplate, 15 Gallon
4 6-8273 1 Faceplate, 25 Gallon
5 6-8219 1 Extension Assembly
6 6-8138 1 Shut-Off Assembly, cushion grip
7 6-9075 1 Nozzle Kit, Poly
8 6-9203 1 Suction Hose Assembly
9 6-8321 1 Inlet Strainer
10 6-8146-1 1 Tank Lid & 6 inch Filter Basket
11 6-8325 1 Drain Plug Kit
12 6-8003 2 Worm Gear Clamp
13 6-9204 1 Rubber Grommet
14 6-8324 2 Wand Clip, pair
15 6-8274 1 Wand Clip, Tie Down
16 6-8320 1 Lead Wire Assembly w/ Switch
17 6-9205 1 15’ Hose, Reinforced
6
5
14
7
11
10
1
3
4
17
9E
To Order Replacement Parts: 1-800-950-4458
