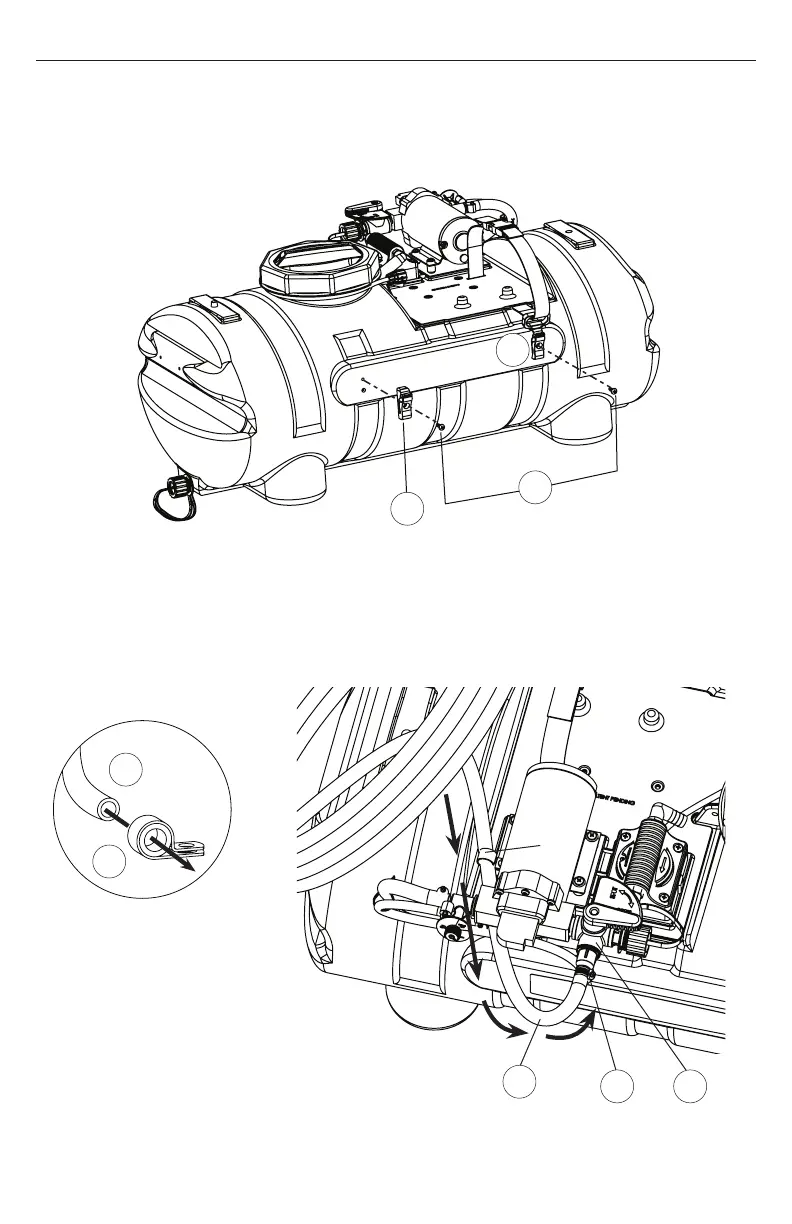

INSTALL WAND CLIPS
Install wand clip (H-4) and wand clip from nylon strap (as shown above) with screws (H-2).
Note: The wand clip shown to the right can be found hanging from the nylon strap.
Guide wand hose (C-1) through loop clamp (H-6) and attach hose (C-1) to diverting valve
(C-4) with hose clamp (H-3). Tighten clamp (H-3).
C-1
H-6
H-6
ATTACH HOSE TO DIVERTING VALVE
C-1
H-3 C-4
H-2
H-4
H-4
