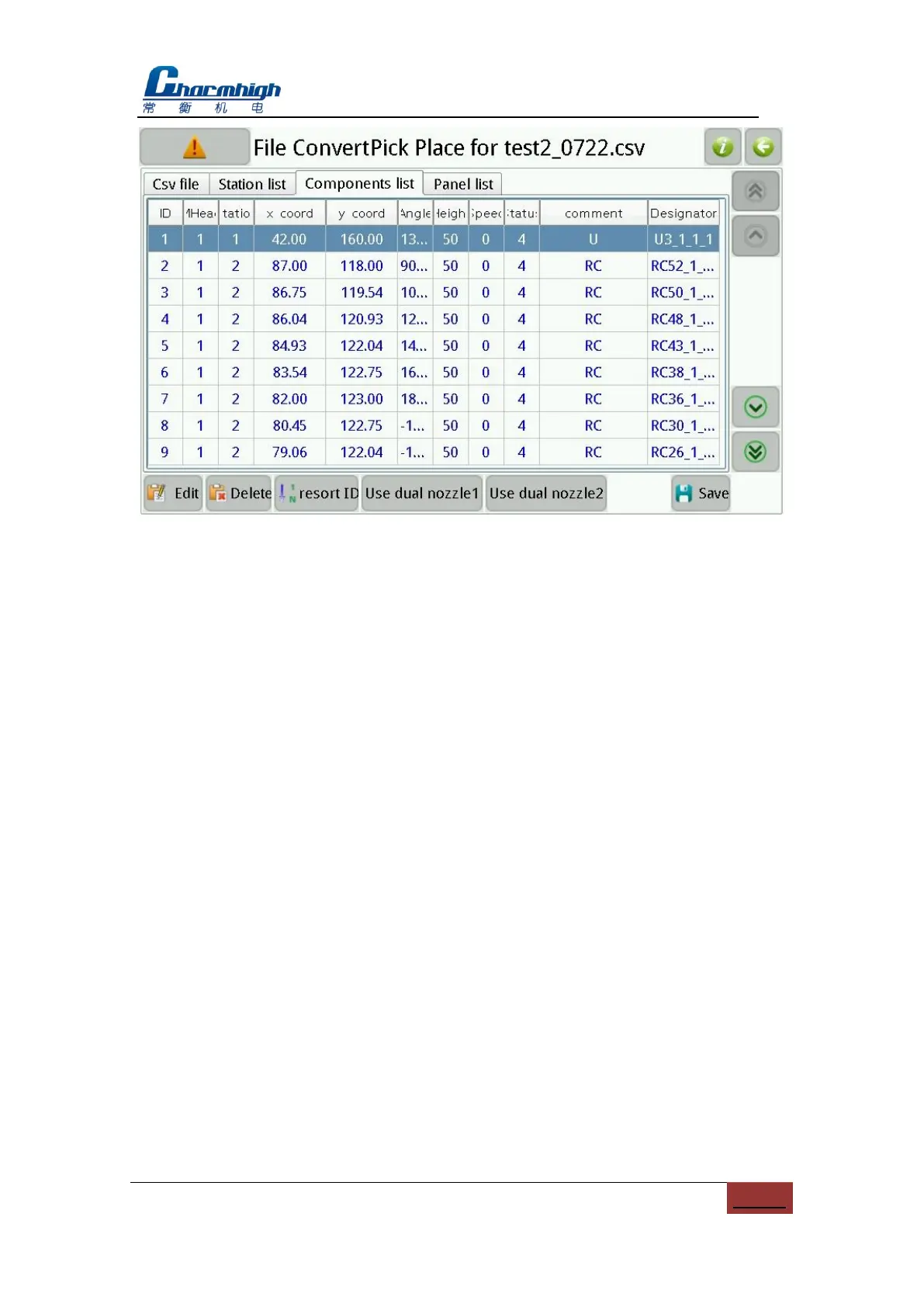

Figure.12-15
(1) Components list: Show all of component in work file;
(2) Edit: Edit selected component;
(3) Delete: Delete selected component;
(4) Resort ID: The device number starting from 1 in ascending order;
(5) Use dual nozzle1: Check indicates that take two component in one time by using
two nozzle(same material stack), but component list must be sorted by material
stack;
(6) Use dual nozzle2: Check indicates that take two component in one time by using
two nozzle(difference material stack);
(7) Save: Save converted work file.
12.2.3. Batch
Window as show below.
