3.1.6 Current sensor

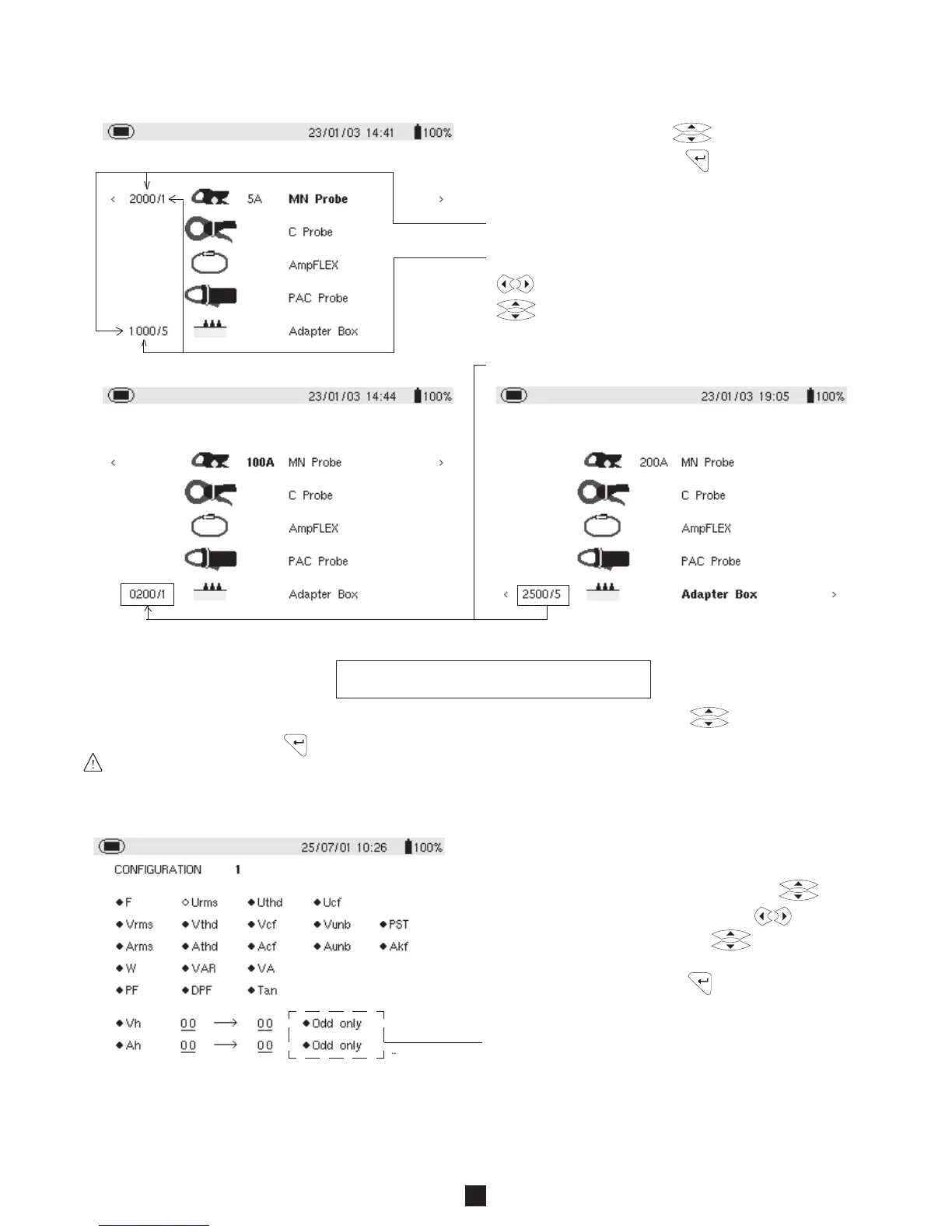

- Choose the sensor with the keys
- Validate the setting with the key, the Configuration
menu will once again be displayed on the screen.
From 1 to 2999A, nominal value of primary current
Secondary current value (5A or 1A)
make the cursor appear/disappear and move.
allow the current required to be determined.
Current transducer ratio
3.1.7 Communication
Transmission speed 57600 BDS
- Choose from the values: 300, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bauds with the keys
- Validate the setting with the key, the Configuration menu will once again be displayed on the screen.
For the transfer of data between Qualistar and a PC, the communication speeds must be identical at both ends.
3.1.8 Recording
1. Choose the recording configuration using the keys
2. Move through the chosen field using the keys and
validate the parameters using the keys; the field to
be modified is shown in bold
3. Validate the setting with the key, the Configuration
menu will once again be displayed on the screen.
If these lines are not validated, all the harmonic orders will be
recorded.
Four different recording configurations can be stored
