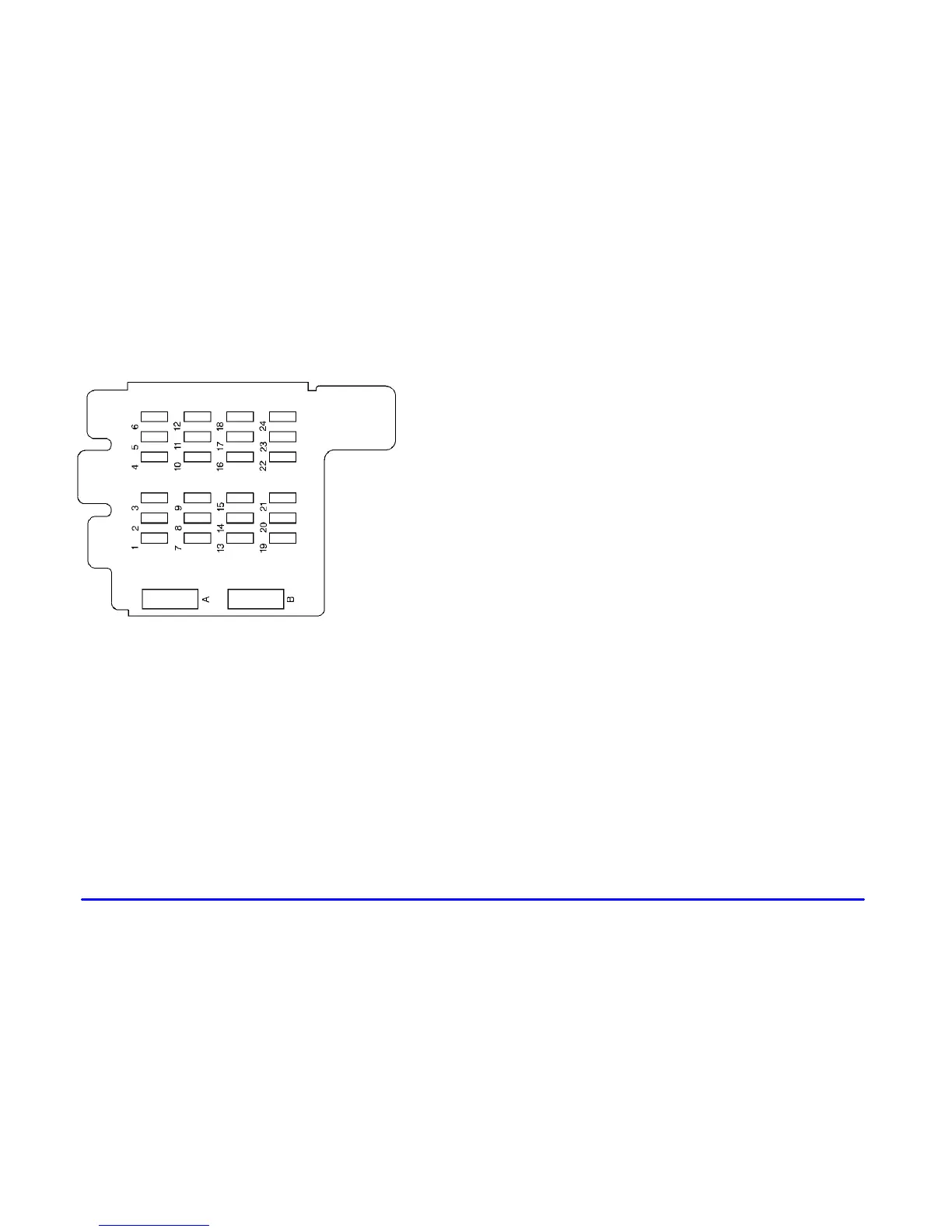

Fuse/Circuit
Breaker
Usage
1 Stop/Turn/Hazard Lamps,
Center High Mounted Stop
Lamp, Anti
-Lock Brakes
2 Radio Accy, RR Seat
Audio Controls
Fuse/Circuit
Breaker
Usage
3 Courtesy Lamps, Glove Box Lamp,
Dome Reading Lamps, Vanity
Mirror Lamps, Courtesy Lamps
4 Daytime Running Lamps Relay,
Instrument Panel Cluster
5 Rear Defogger
6 Cruise Module, TBC Module,
Instrument Panel Cluster,
Cruise Control Switch,
Electrochromic Mirror
7 Power Outlets, DLC,
Subwoofer Amplifier
8 Crank Circuit Fuse, Park/Neutral
Switch, Starter Enable Relay
9 License Plate Lamp, Taillamps,
Parking Lamps, Ashtray Lamp,
Panel Lights, Trailer Taillamps,
Front and Rear Sidemarker
Lamps, Door Switch Illumination,
Headlamp Switch Illumination,
Rear Seat Audio Illumination,
TBC Module
To Next Page
