Seats and Restraints 3-7
1. Position the seat into the open
slots in both rails. Push the seat
forward in the rail, hooking both
seat bases onto the pins inside
of the rails.
2. Locate the hole in the rail to
install the locking pins at the rear
of the seat base. If the vehicle
has floor mats, pull the flap that
has been cut into the mat.
3. Insert the locking pins into the
seat base and push the seat to
line up the pins with the base.
On a three-passenger seat,
the pin with the black cap
marked “R” must be installed on
the right side and the pin with
the gray cap marked “L” on
the left side.
On a four-passenger seat,
the pins marked “R” must be
installed on the half of the seat
on the right side. The pins
marked “L” must be installed on
the half of the seat on the
left side.

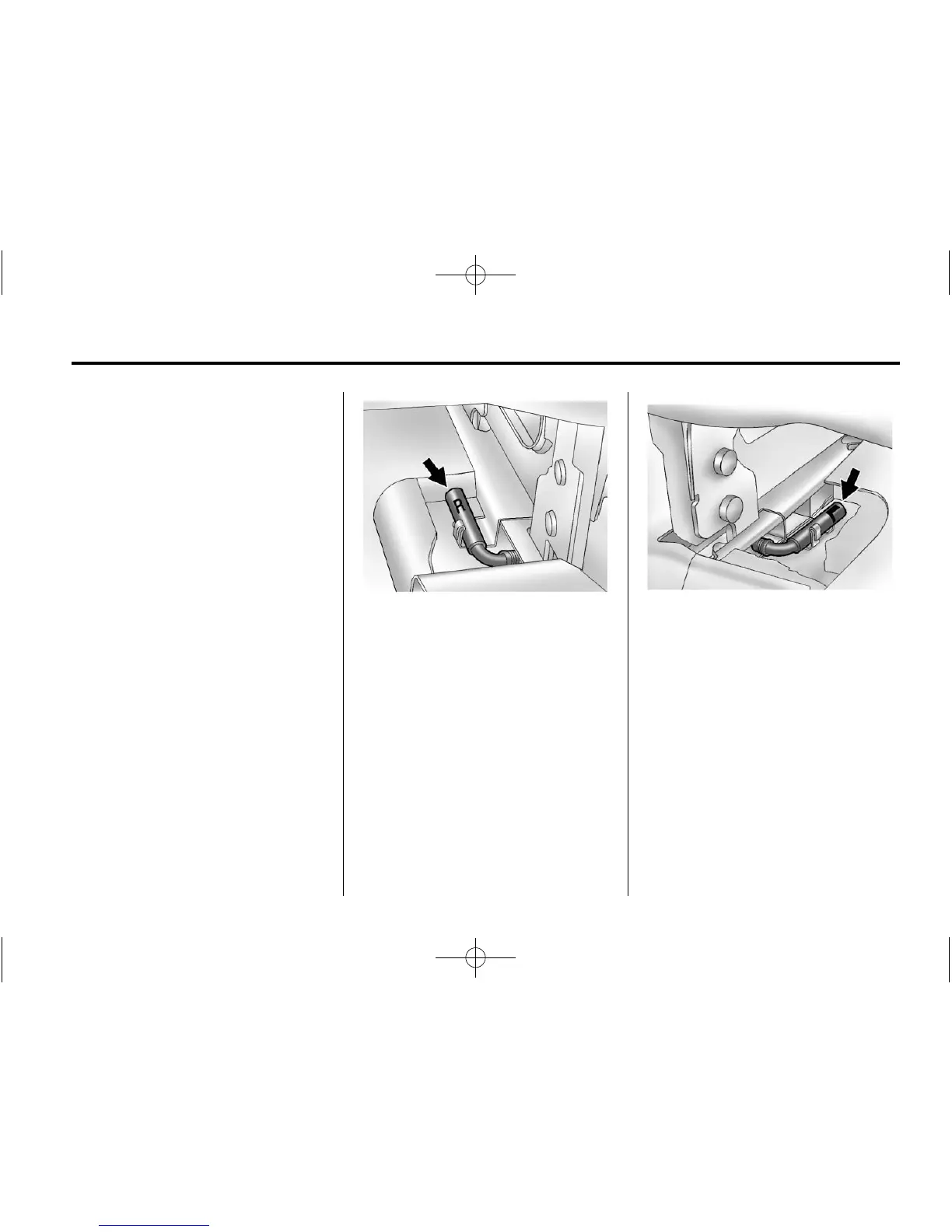

Three-Passenger Seat Shown
4. Push the pin(s) marked
“R” down until they are in
the retaining clip.
Three-Passenger Seat Shown
5. Push the pin(s) marked
“L” down until they are in
the retaining clip.
6. If the vehicle has a floor mat,
put the flap back to its original
position.
7. Repeat this procedure for
the other seat base.
