Chiaravalli CHM Series User Manual

Pos Spareparts
1 Pre-stage unit casing
2
Cover
3 Low speed shaft
4
Hollow pinion
5
Gear
6 Bu
sh
7
Washer
8
Key
9 S
top ring
01 N S
rew DIN 7991
02 N S
rew DIN 931
03 N S
rew DIN 931
04 N S
rew DIN 916
05 N Nut DIN 934/6
06 N Nut DIN 934/6
07 N
Circlip DIN 3760
08 N
Oil seal DIN 3760
09 N
Oil seal DIN 3760
10 N O - Ring
11 N
Bearing
12 N Srew DIN 931
13 N
Key DIN 6885/1

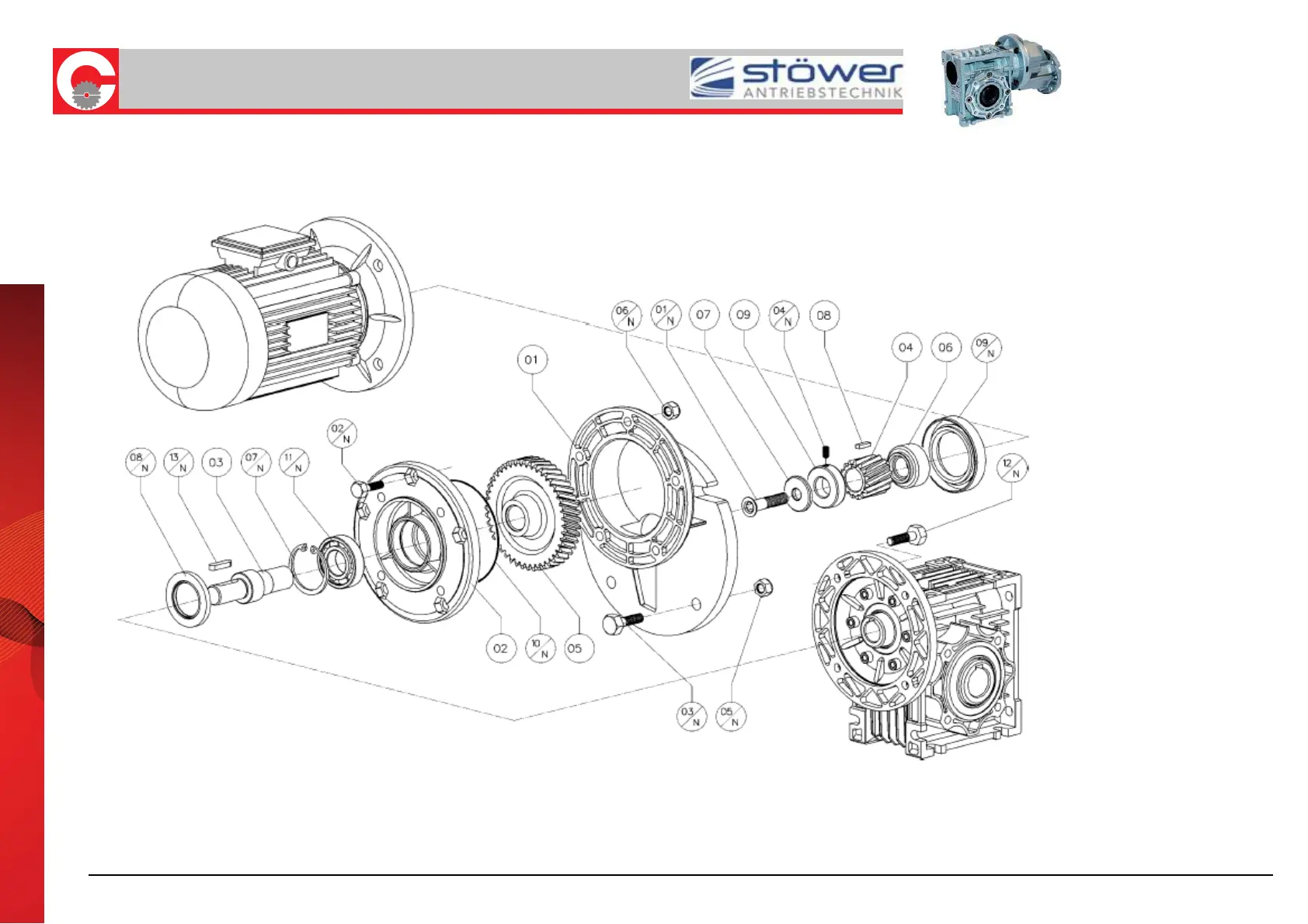

Sparepart list / Wormgear with Pre-Stage Module
26
C - SERIE BETRIEBE- UND wARTUNGSANLEITUNG
CHM - SERIE BETRIEBE- UND wARTUNGSANLEITUNG
Stöwer Antriebstechnik GmbH, Enneststrasse 3, 51702 Bergneustadt, Tel. 02261-40970, Fax: 41309, www.stoewer-getriebe.de
