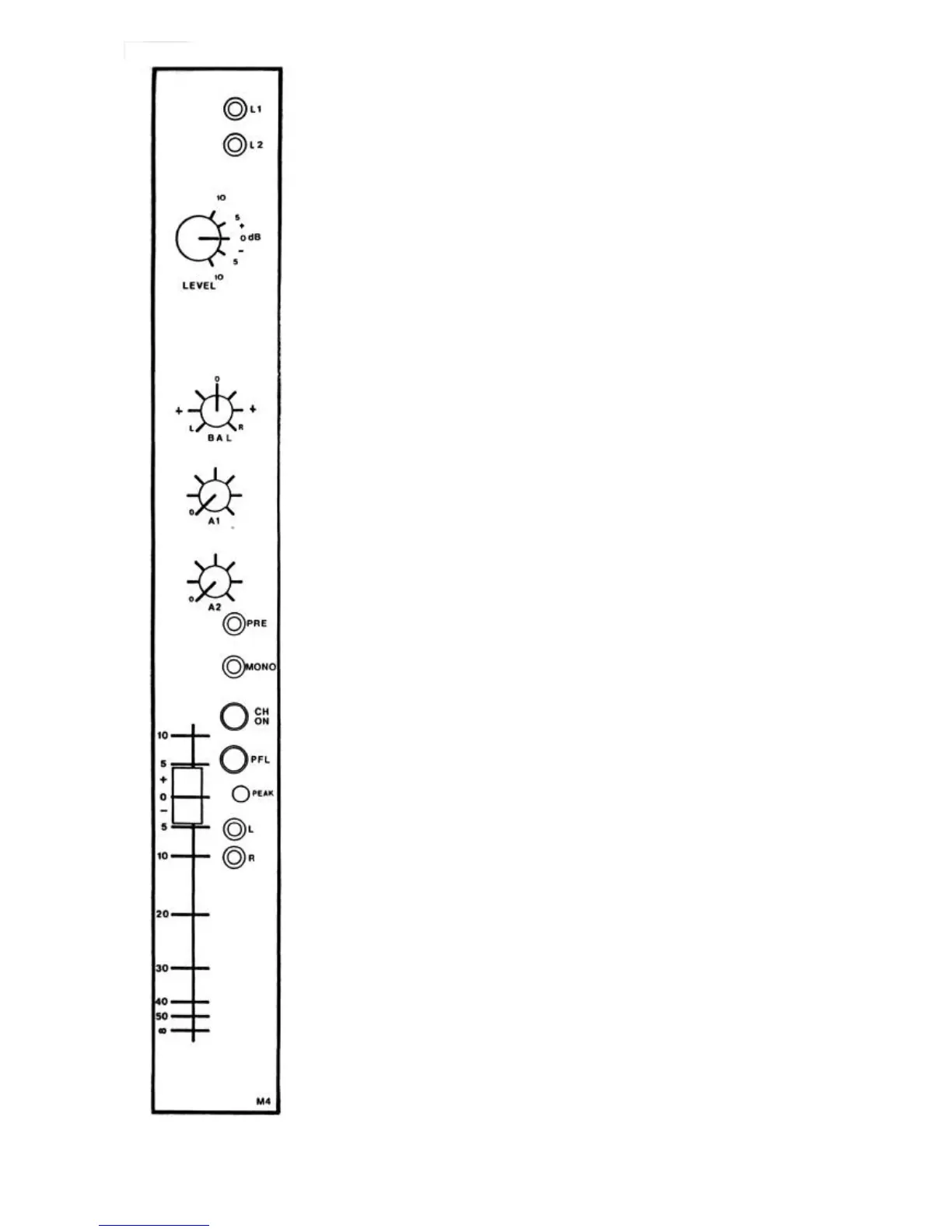

Stereo Line or Phono Input. M4
L1 and L2 select either of two unbalanced Line or Phono inputs.
See M4 module input configurations drawing.
Switched Input level control. When magnetic cartridge pre-amps are fitted,
each has a Gain pre-set accessible by lifting up the meter bridge panel. to
adjust, set level switch to 0dB Channel fader to your required reference
(normally 0 or +10) and Group faders to 0. Adjust pre-set to give required
level on output meters from tone on test record.
Balance control will increase gain by max 3dB to Left or Right channel as
indicated on scale.
Auxiliary Send 2 takes a mono mix of L and R channels Pre fader (Can be
wired Post)
Auxiliary Send 2 takes a mono mix of L and R channels Pre or Post fader
(switchable)
Stereo to Mono Push button
PFL. Mono summation of L and R, otherwise as M1 PFL
Peak Level Indicator. illuminates when left, right or both channels approach
+4dB, otherwise as M1
L. R. push button selection to Group outputs.
104mm Stereo Fader. Otherwise as M1
Rear Panel:
Line In 1-2: See block drawing as M4 Input drawing
Insert L and R: Jacks 3 pole. Tip Return. Ring Send. Sleeve Common
