CHINT DTSU666 Series User Manual

DTSU666 series and DSSU666 series
three phase electronic energy meter
ZTY0.464.1448
User manual

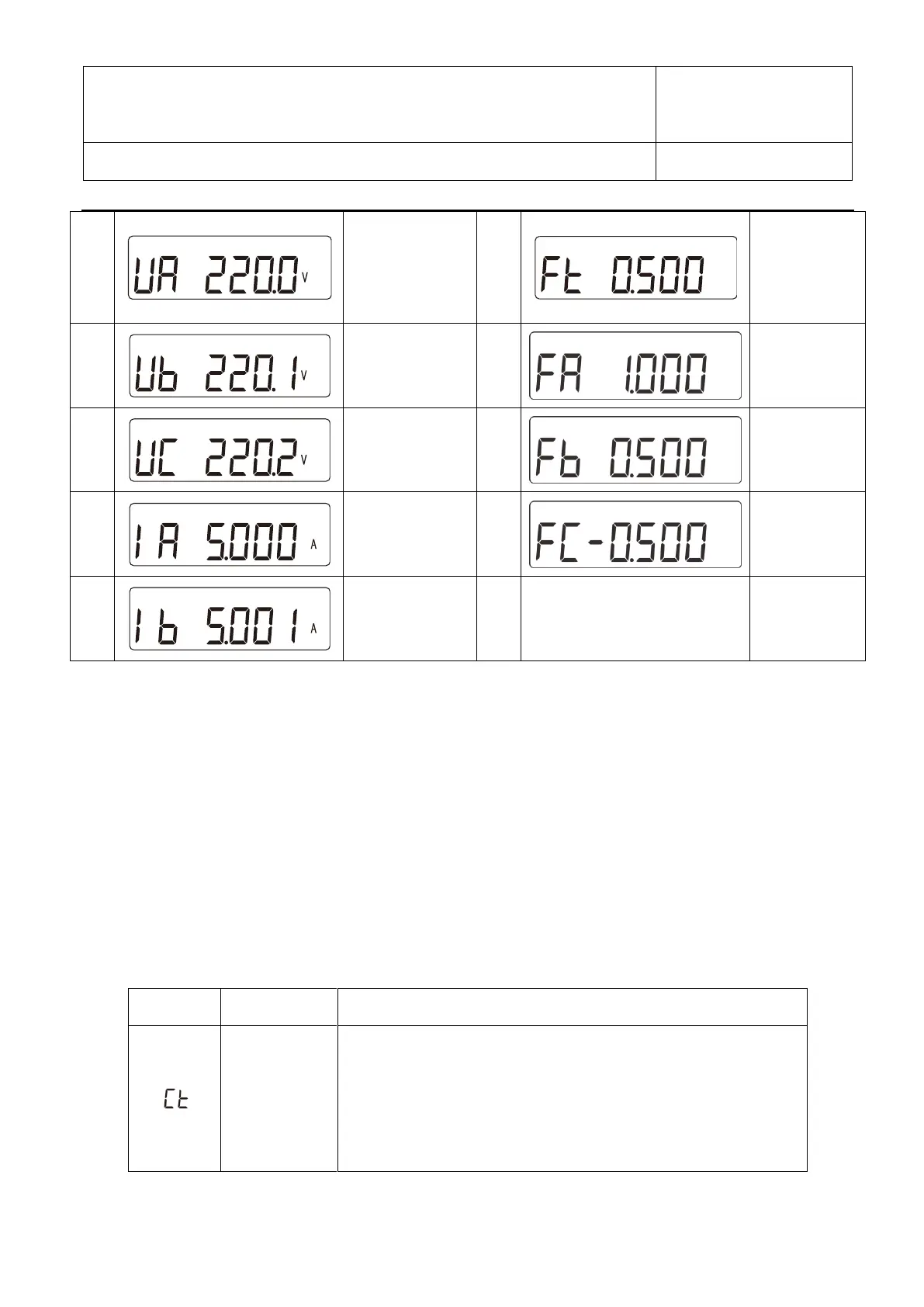

Page 9, Total 21
6
Phase A
voltage
=220.0V
16
Combined
phase power
factor
PFt=0.500
7
Phase B
voltage
=220.1V
17
Phase A
power factor
PFa=1.000
8
Phase C
voltage
=220.2V
18
Phase B
power factor
PFb=0.500
9
Phase A
current
=5.000A
19
Phase C
power factor
PFc=-0.500
10
Phase B
current
=5.001A
NOTE1：The factory default baud rate is 9600bps,n.8.1;The communication address of Modbus
protocol is 01 (1 ~ 247), E1 means even check 1 stop bit, O1 means odd check 1 stop bit Two stop bits,
N2 means two stop bits without check;
NOTE2：The above interface is used to show the meaning of the display content. Due to the
different functions of the instrument, the display symbols will increase or decrease.
NOTE3：When RS485 communicating, the telephone sign will flashes.
5.2.Programming function
5.2.1.Programming parameter
Table 10 Programming parameter
Parameter
Value range
Instruction
1～9999
Current ratio, used for setting the input loop current ratio:
When the current is connected to the line via the
transformer, Ct=the rated current of the primary loop / the
rated current of the secondary circuit;

CHINT DTSU666 Series Specifications

General

Type	Three-phase electronic energy meter
Rated Current	5A
Starting Current	0.004Ib
Frequency	50/60Hz
Display	LCD
Mounting	DIN rail
Operating Temperature	-25°C to +55°C
Storage Temperature	-40°C to +70°C
Protection Level	IP51
Rated Voltage	3x230/400V
Communication	RS485
Weight	0.5 kg
Standards	IEC 62052-11
Accuracy Class	0.5S
Humidity	<95% non-condensing
