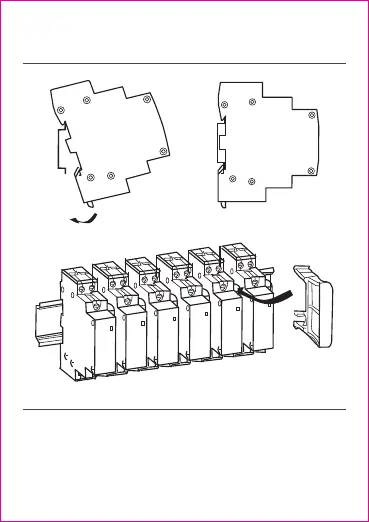

Figure 3 NCH8 installation diagram
2) Installation method: use TH35-7.5 steel mounting rail, see Figure 3
below.
① ②
③
NCH8-20~25 2P
3) Wire selection and connection method: applicable to copper wire
connection, please refer to Table 3 below for wire category, sectional area,
strip length and tightening torque, see Figure 4 below for connection
method.
