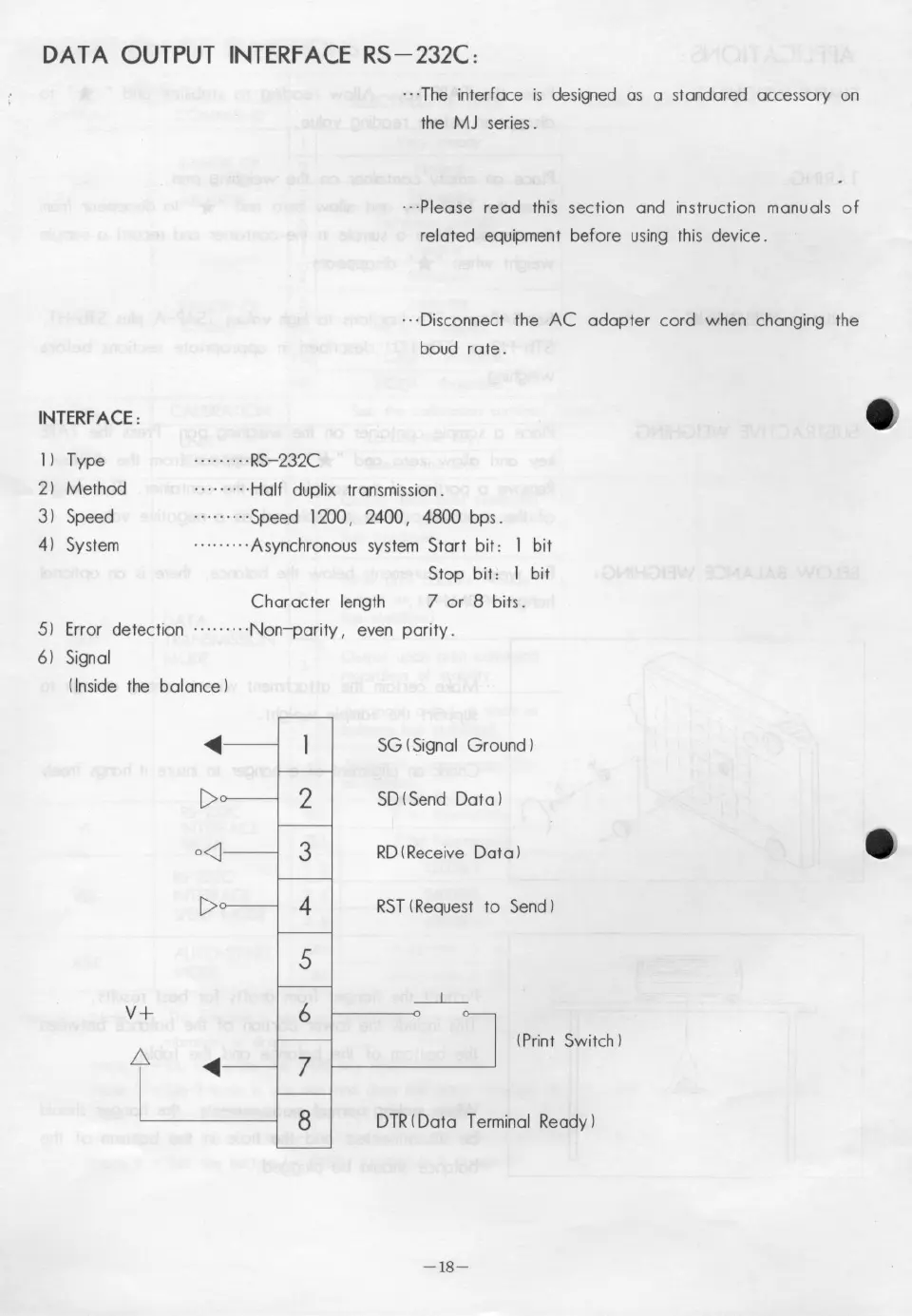

DA TA OUTPUT INTERFACE RS- 232C :
... The interface is designed as a standared accessory on
the MJ series .
.. ·Please read this section and instruction manuals of
related equipment before using this device .
.. ·Disconnect the AC adapter cord when changing the
boud rate.
INTERFACE:
......... RS-232C
11 Type
2) Method
3) Speed
4) System
........ ·Half duplix transmission.
....... "Speed 1200, 2400, 4800 bps.
......... Asynchronous system Start bit: 1 bit
Stop bit: 1 bit
Character length 7 or 8 bits.
5) Error detection Non-parity, even parity.
6) Signal
(Inside the balance)
SG (Sign al Ground)
[> 2
SD(Send Data)
0<]
3
RD(Receive Data)
[>
4
RST(Request to Send)
5
v+
6
(Print Switch)
7
8 DTR(Data Terminal Ready)
-18-
