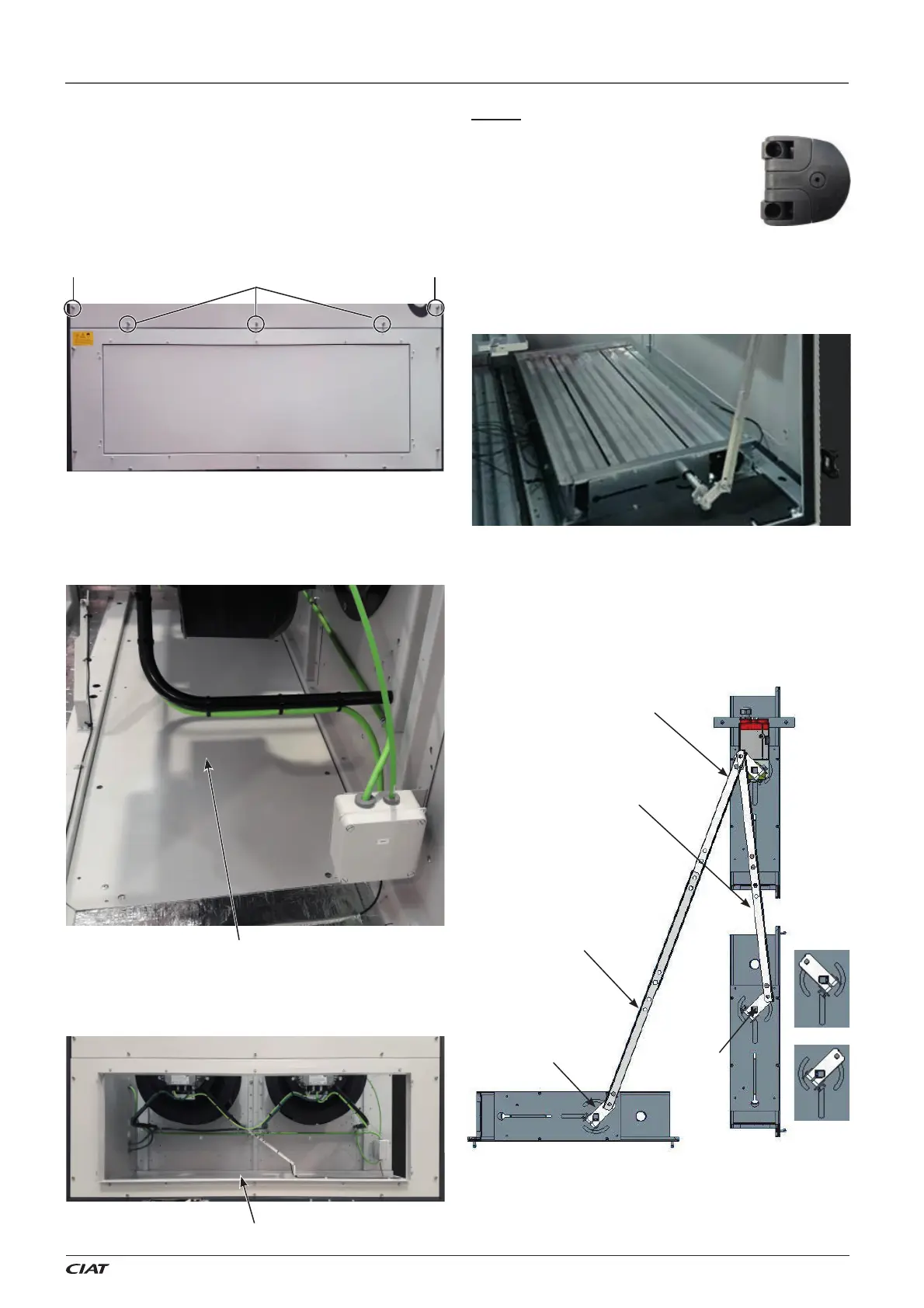

Step 1: Remove the lateral panel completely. To do this it is
necessary to remove the screws that attach the panel to the
pillars (2 per side) as well as those which join the top panel.
Also, it is necessary to loosen other two screws on the top panel
( indicated in the picture). All screws are M6 Allen type.
Step 2: Then the outlet profi le and the closing plate must be
dismantled from this panel.
7 - POSITIONING AND INSTALLATION
Return
The access panel to the return outlet features
dual locks which can serve as a hinge or can
be used to remove the panel.
Check that the locks are not blocked. Open the
locks with a 4 mm Allen key (in an anticlockwise
direction).
Step 3: Place the interchangeable closing plate at the base of
the unit. For this, the screws used to fasten it to the lateral panel
must be reused.
Note: the screws securing this structure are used to fi x the
locking part to the base of the unit. The screws required to secure
the profi le for the outlet are supplied in a bag.
Remove these screw
on the top panel
Loosen Loosen
Step 4: Replace the lateral supply panel.
Step 5: Assemble the outlet profi le (2 L-shaped brackets), using
the 4 screws supplied in a bag (self-tapping screws M4.8).
Profi le for outlet
Closing plate
The procedure is the same as that used for supply, except with
the CS assembly (*), in which it’s also required to change the
position of the damper.
Step 1: Remove the screws (M6 Allen) connecting the rod of the
return damper to the drive. Then disassemble the return damper.
Part 1 with horizontal damper
Part 1 with vertical damper
Part 2 (removable)
Rotated rod
Rod in the
initial position
Return damper in horizontal position
Fresh air
damper
Return damper in
vertical position
Position 1
Position 2
Step 2: Fit the damper on the panel, placing the panel on the
side of the unit, followed by the profi le for the outlet.
Step 3: Rotate the rod on the axis so that the drive crosses
between the return and fresh air dampers (see image below).
Step 4: The drive of the damper for the horizontal position is
composed of two parts (1 and 2). Disassembly the lower part
(2) secured with M6 Allen screws. The upper part (1) is the
drive necessary for the vertical position. Screw the part (1) to
the rotated rod.
(*) If the unit includes “Antifreeze protective kit + dampers with
spring for automatic closing” (optional upon request), it is not
necessary to change the transmission, since the return damper
incorporates a servomotor.
