MORE TORQUEMORE TORQUE
Equal size gears will spin
at the same rate with the
same torque. Mismatched
gears will either speed
up or increase the torque,
butnever both.
MORE SPEEDMORE SPEED
DRIVING GEARDRIVING GEAR

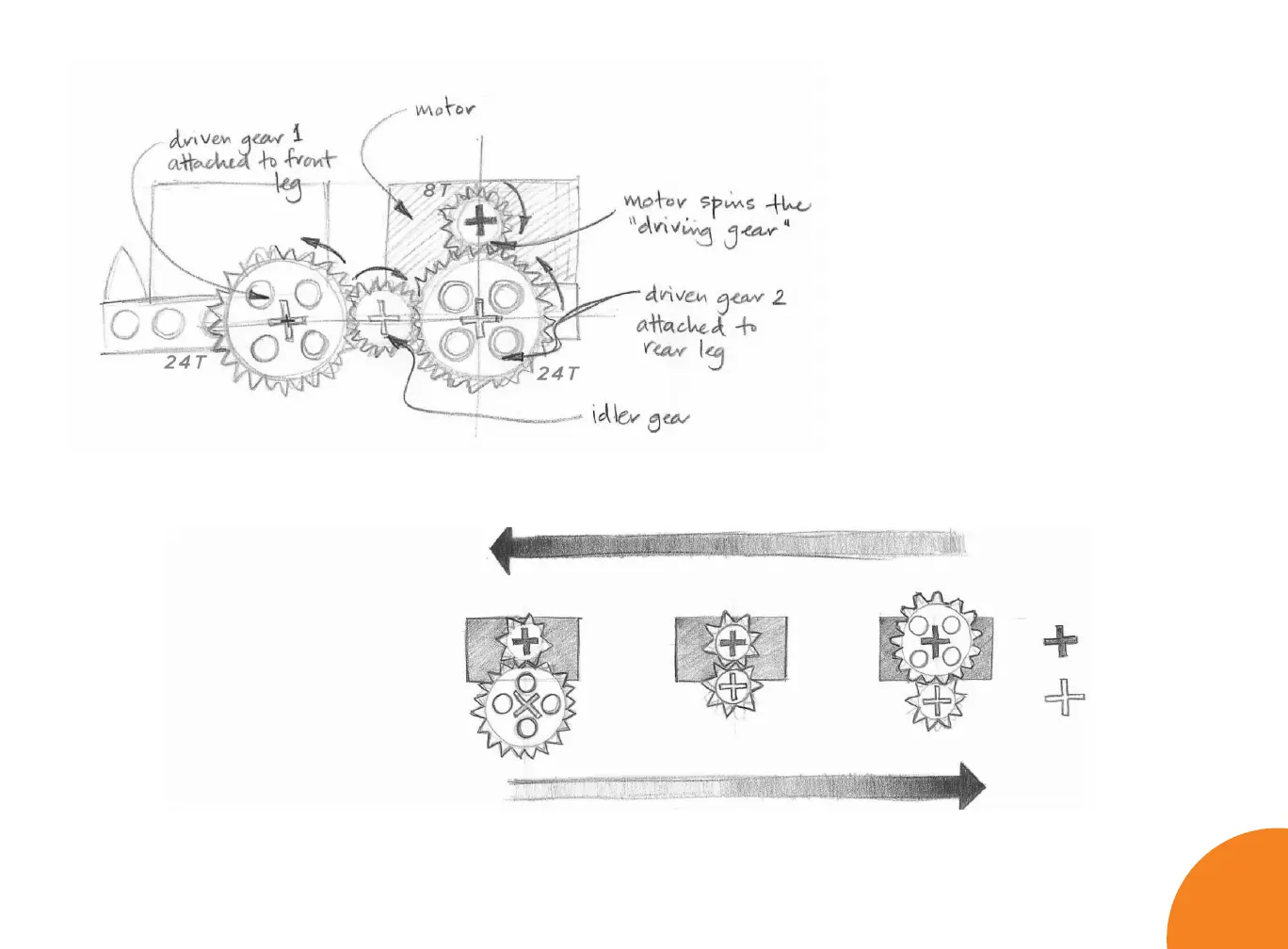

An 8-tooth gear attached
to the motor spins two
24-tooth driven gears,
separated by an idler.
The idler gear ensures
the driven gears rotate
in the same direction.
DRIVEN GEARDRIVEN GEAR
