Page 22
Pre-alarm positive safety setting
"Std", contacts are on standby and are not shown on the display. 4 - 5
(NC) and 6 - 5 (NA).
"+" contacts change status on powering the equipment and are not
shown on the display. 4 – 5 (NA) and 6 – 5 (NC).
Reset pre-alarm setting

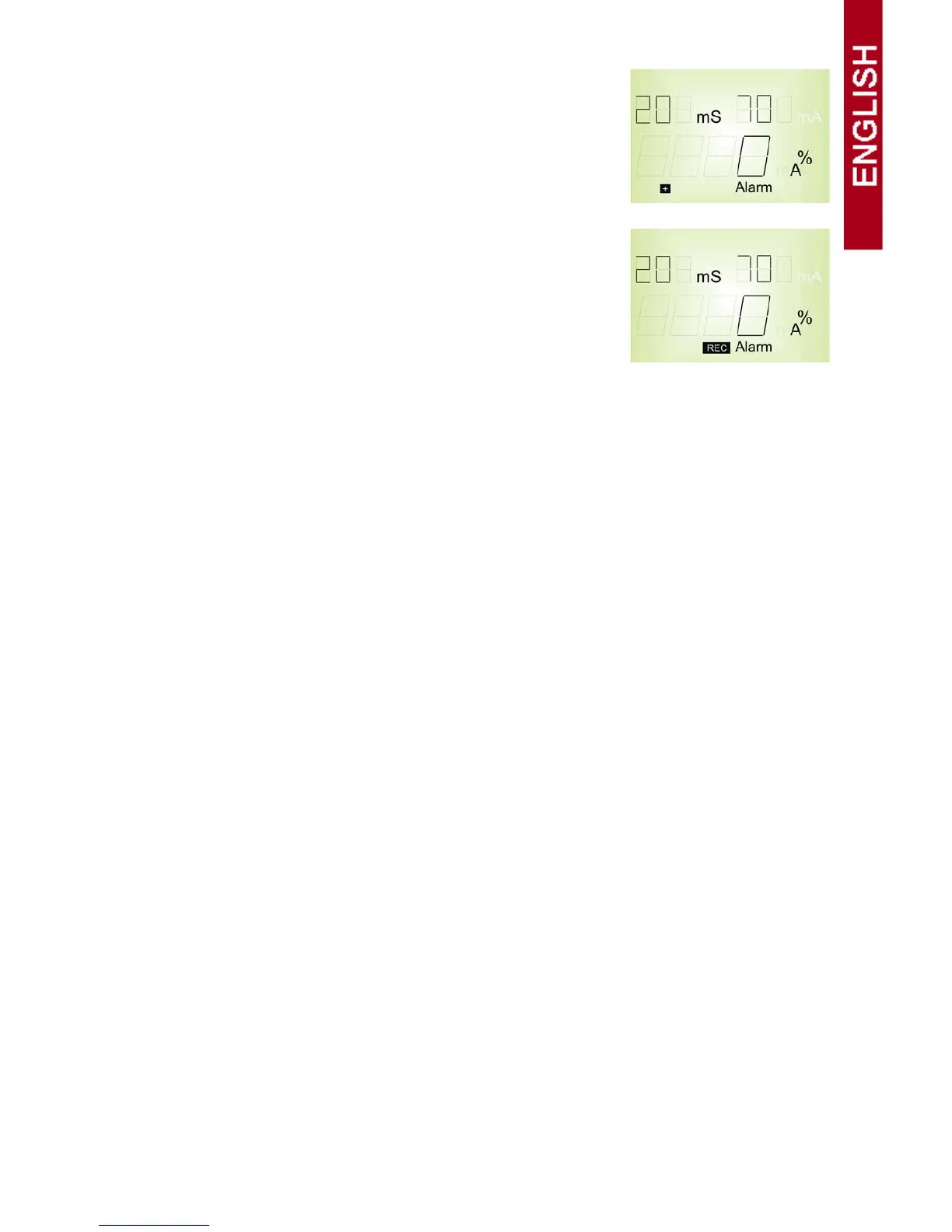

In the pre-alarm menu the REC function is shown as disabled or
enabled. REC appears on the LCD when it is enabled.
Setup using SETUP
"PROG" and the first menu option appear on the display by pressing a long time. Once in menu setting mode, the
different text indicators appear on the display after each time PROG is pressed.
When the correct menu is reached, the parameter can be changed by pressing t
d
(rotating). In order to enter the
settings press the PROG but on again with the "SAVE" message showing the version of the equipment. The display
the turns to the initial screen.
If, after a certain time, the keyboard remains inactive the "EXIT" message appears and the main relay settings are
shown without any information being saved.
