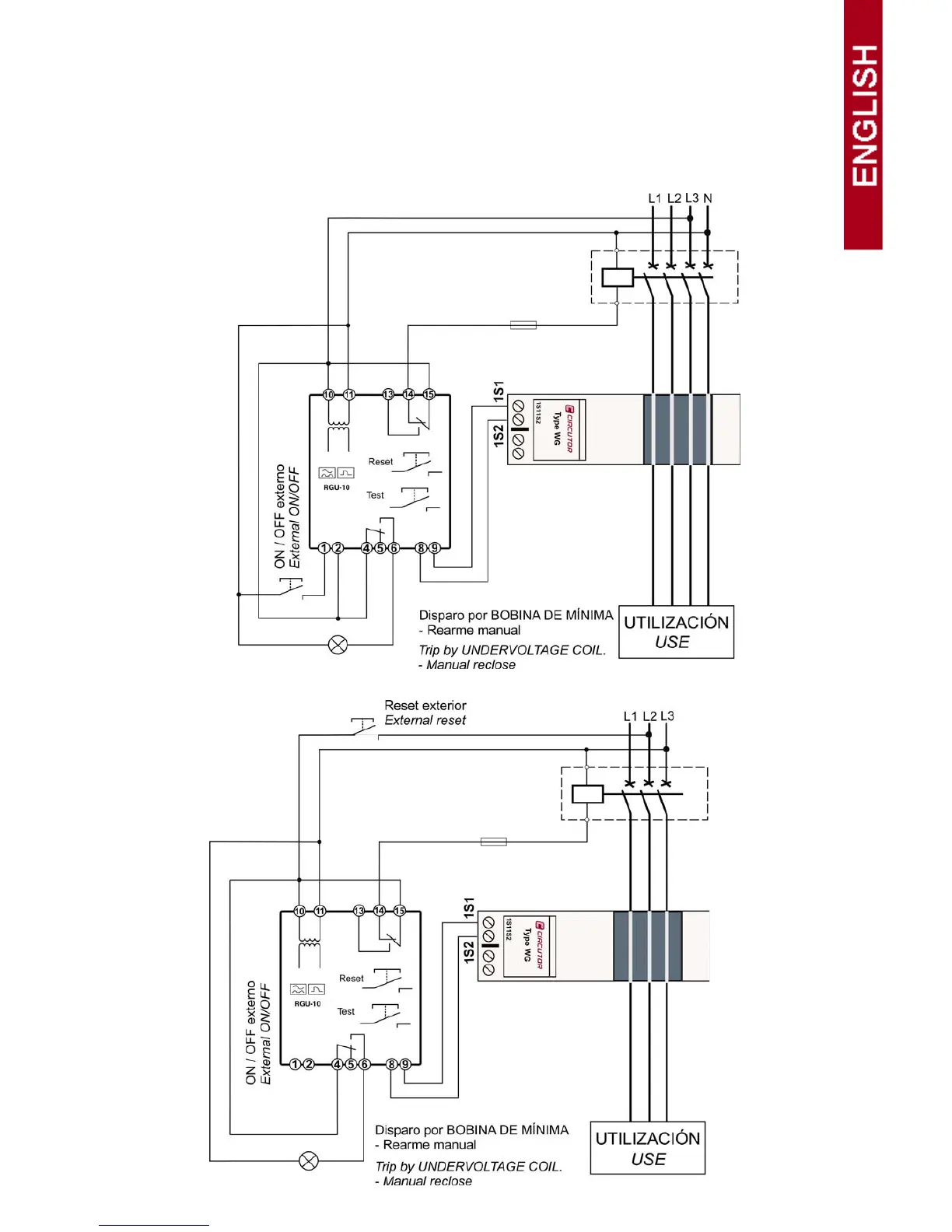

RGU-10/RGU-10C connection with undervoltage coil. Power supply to the equipment is before the breaking device.
This breaking device may be an automatic switch or contactor.
Using a CONTACTOR the protection is reset by pressing RESET, or by using an AUTOMATIC SWITCH. The
breaking device must be rearmed beforehand.
Power supply from
24 to 230 V
ac
400 V
ac
power
supply
