Cisco 5505 - ASA Firewall Edition Bundle Administrator's Guide

3-6
Cisco AnyConnect VPN Client Administrator Guide
OL-12950-012
Chapter 3 Installing the AnyConnect Client and Configuring the Security Appliance with ASDM
Step 7 Assign the IP address pool to a Connection (tunnel group). To do this, choose
Network (Client) Access > SSL VPN Connection Profiles. The SSL VPN
Connection Profiles panel
appears (Figure 3-6):

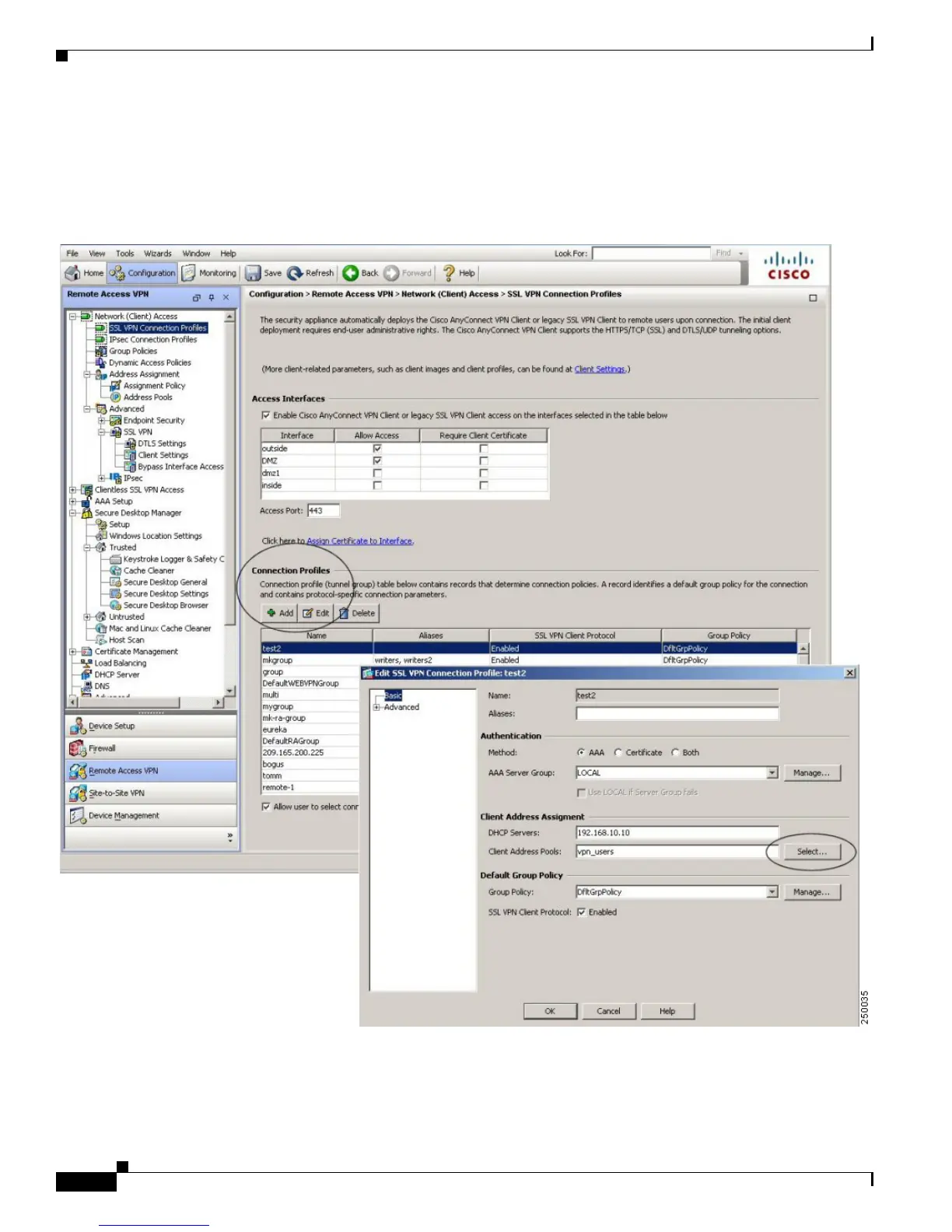

Figure 3-6 Client Address Pool Assignment
To edit an existing connection profile, highlight a connection in the table, and click Edit. The Edit SSL
VPN Connection > Basic dialog box appears. To add a new connection profile, click Add. The Add SSL
VPN Connection > Basic dialog box appears, which is identical to the Edit dialog box, except that you
must supply a name for the connection profile. Then proceed as follows.
