Cisco Video Surveillance 6030 IP Camera Installation Guide
OL-28492-02
Chapter 2 Camera Installation
Installing the IP Camera with a Vandal Resistant Enclosure

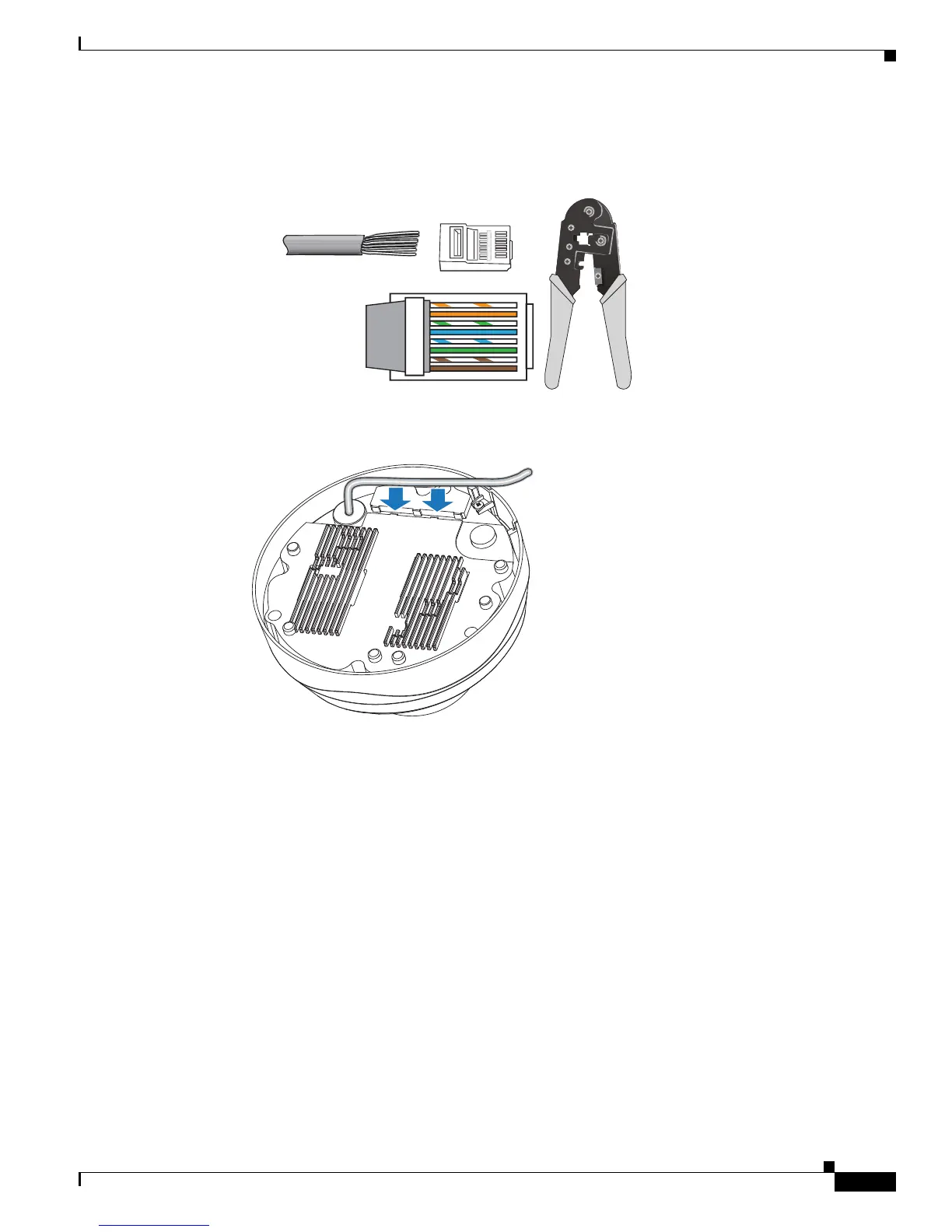

b. Strip about 1/2 inch (12 mm) of the sheath from the Ethernet cable.
c. Use an RJ45 crimping tool to attach the Ethernet wires to a connector. When done, connect the cable
to the camera’s Ethernet RJ45 socket.
d. Press the Ethernet cable into the routing path at the bottom of the camera so that the cable will not
get in the way when the metal mounting plate is attached.
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
