Cisco Catalyst IR1821 Installation Guide

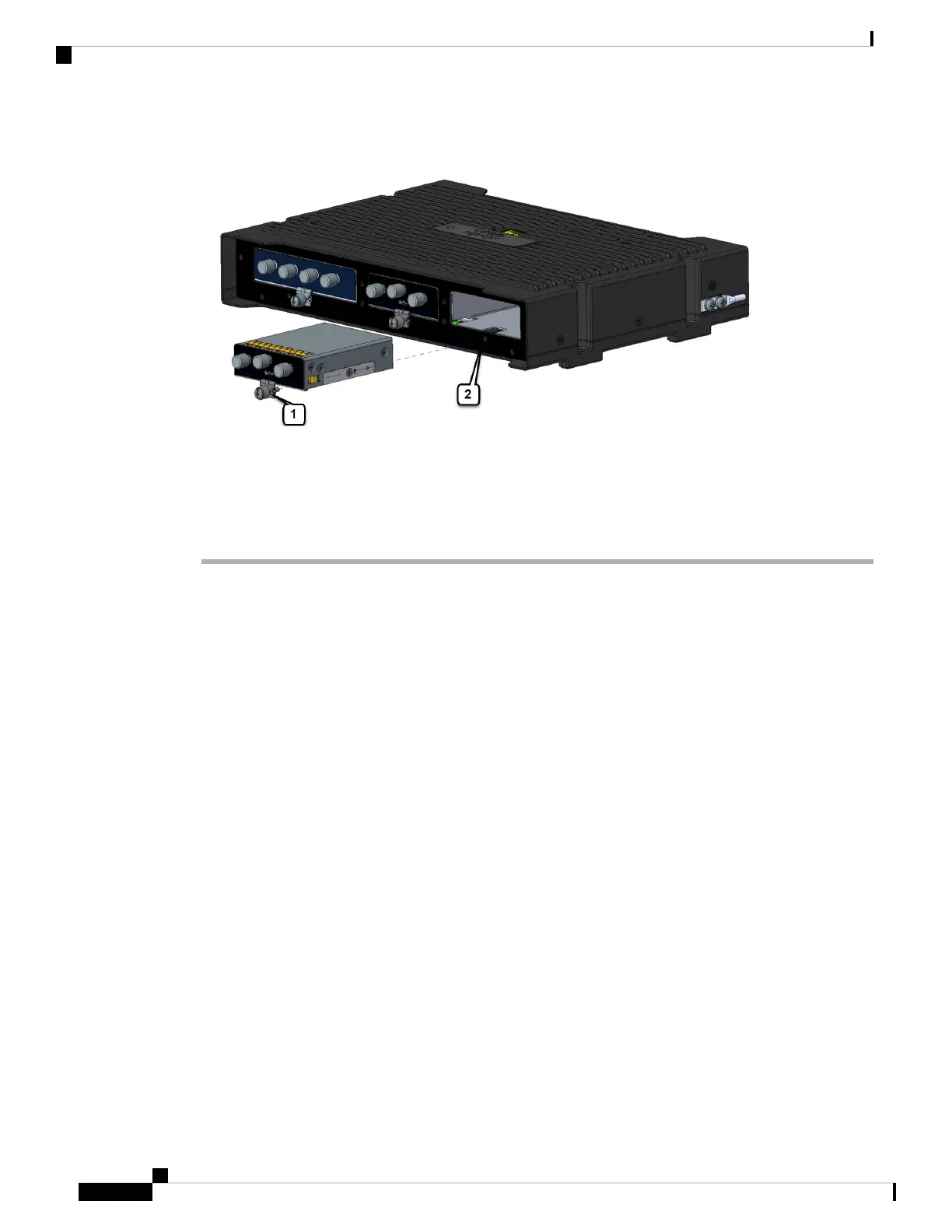

Figure 18: Pluggable Module Insertion
Step 9 Attach your antennas to the ports on the pluggable module. There are different instructions for each antenna
type. So be sure to consult the corresponding antenna documentation for proper orientation and torque to
install them.
If no antennasare being installedon a port,make sure thecaps are installedon the unusedconnector.
Note
Cisco Catalyst IR1800 Rugged Series Router Hardware Installation Guide
50
Pluggable Interface Modules
Installing a PIM
