Cisco Nexus 7004 - Page 228

48-Port 1-/10-Gigabit
(N7K-M348XP-25L)
24-Port 10-Gigabit
(N7K-M224XP-23L)
32-port 10-Gigabit with
XL option
(N7K-M132XP-12L)
32-port
10-Gigabit
(N7K-M132XP-12)
8-port 10-Gigabit
(N7K-M108X2-12L)
Transceiver
XXXSFP-H10GB-CU1-5M
XXXSFP-H10GB-CU2M
XXXSFP-H10GB-CU2-5M
XX 3X 3XSFP-H10GB-CU3M
XX 3X 3XSFP-H10GB-CU5M
18
The FET-10G transceiver is used only for connections with a Cisco Nexus 2248TP, 2248TP-E, 2232PP, 2232TM, and 2224TP
Fabric Extender (FEX).
19
Supported from Cisco NX-OS Release 8.1(1).
20
Requires the OneX Converter Module (part number CVR-X2-SFP10G) when this transceiver is used with the 8-port 10-GB
I/O module.
21
Requires revision 2 of this transceiver.
Figure 147: SFP+ Transceivers and FETs, on page 216 identifies the major features of these transceivers. For
the cable specifications that apply to SFP+ transceivers and FETs, see Table 46: Cable Specifications for the
10-Gigabit SFP+ Transceivers and FETs , on page 217. For the physical and environmental specifications, see
Table 47: SFP+ Transceiver Optical Transmit and Receive Specifications , on page 217. For the environmental
specifications that apply to these transceivers, see Table 48: Environmental and Power Specifications for the
10-Gigabit SFP+ Transceivers and FETs , on page 218.

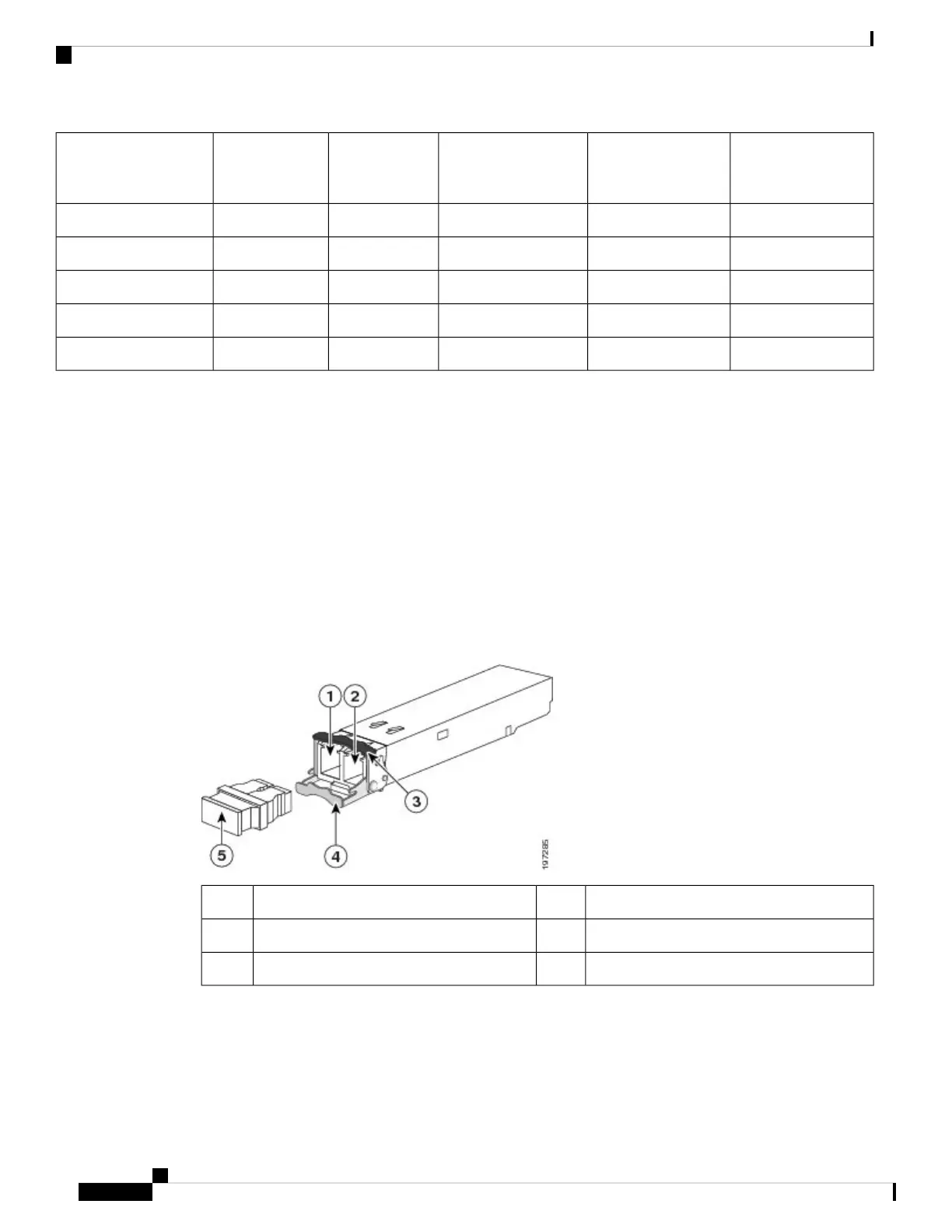

Figure 147: SFP+ Transceivers and FETs
Clasp shown in open position4Receive optical bore1
Dust plug5Transmit optical bore2
Clasp shown in closed position3
Cisco Nexus 7000 Series Hardware Installation and Reference Guide
216
Transceivers and Module Connectors
10BASE-X SFP+ Transceivers
