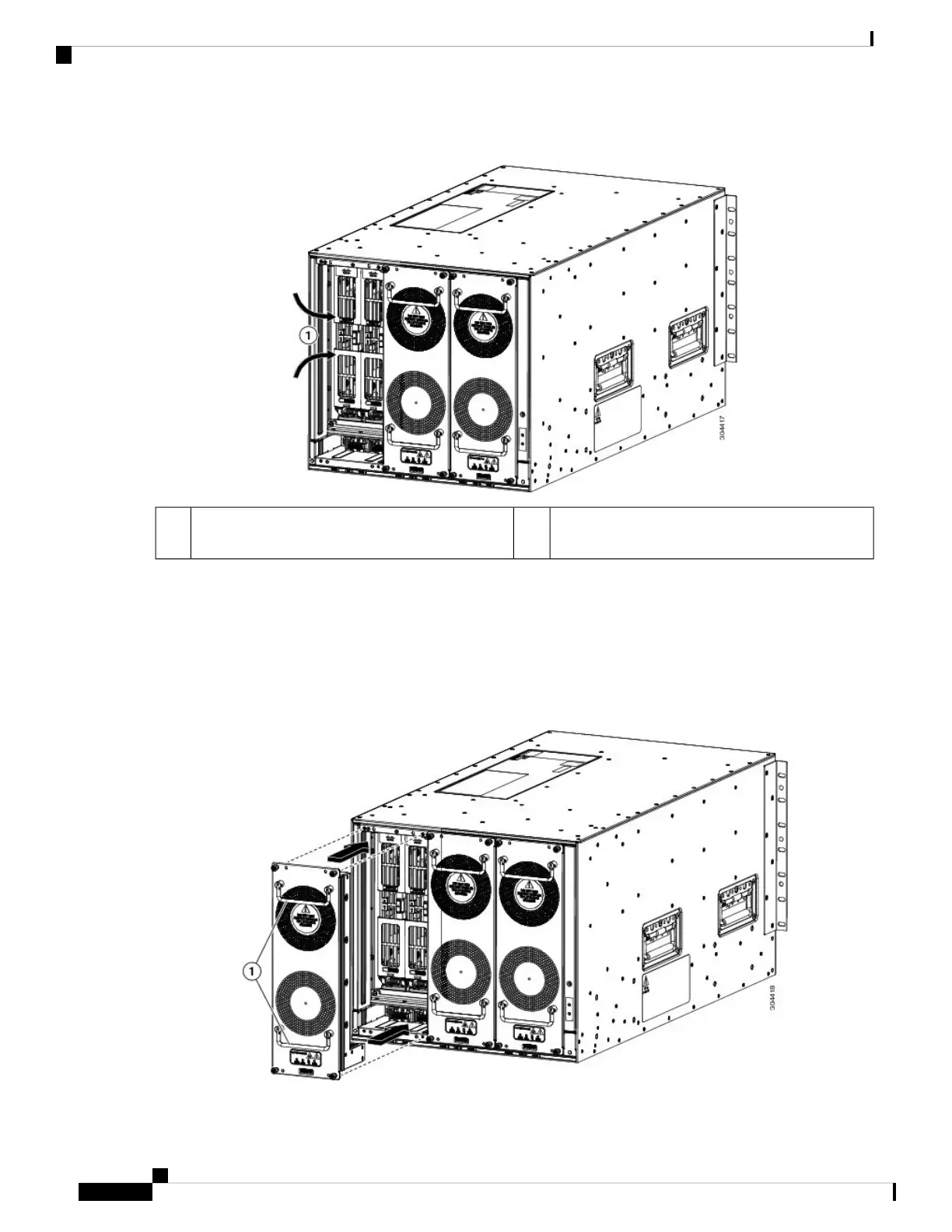

Figure 32: Securing the Fabric Module to the Slot
Rotate the handles to the front of the module until
they click.
1
h) Verify that the module is secured to the chassis and that you cannot remove it without pressing the eject buttons.
Step 4 Reinstall the fan tray over the installed fabric module as follows:
a) Hold both fan tray handles with both of your hands and align the back side of the fan tray to the open fan tray slot.
Two alignment pins on the top and two alignment pins on the bottom should align to holes at the top and bottom of
the fan tray slot.
Figure 33: Installing a Fan Tray
Cisco Nexus 7706 Hardware Installation Guide
OL-31330-01102
Installing or Replacing Modules, Fan Trays, and Power Supplies
Installing or Replacing a Fabric Module
