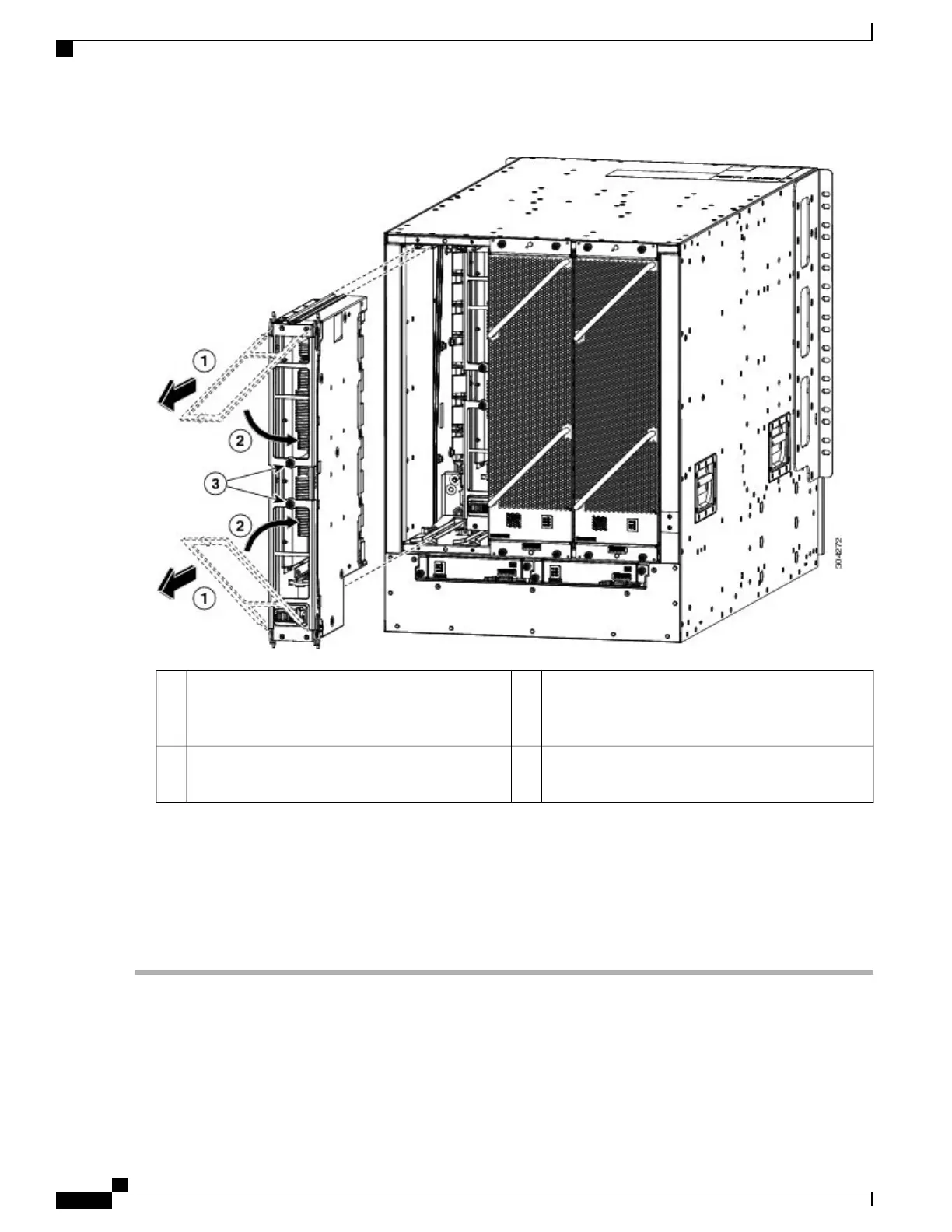

Screw in the 2 captive screws (1 on each handle) to
the module. Tighten each of these screws to 8 in-lb
(0.9 N·m) of torque.
3Pull on both handles to partially remove the fabric
module from the chassis.
1
Rotate both ejector handles to the front of the
module.
2
d) Rotate both handles back to the front of the module until they click in place. Fasten each handle to the module using
the captive screw on the back of the handle. Tighten the screw to 8 in-lb (0.9 N·m) of torque (see Callouts 2 and 3
in the previous figure).
e) Place one hand under the fabric module to support its weight, place your other hand on the front of the module, and
slide the module out of the slot.
f) Rotate the module 90 degrees and lay it flat on an antistatic surface or in an antistatic bag.
Cisco Nexus 9508 NX-OS Mode Switch Hardware Installation Guide
96
Replacing or Installing Modules, Fan Trays, and Power Supplies
Removing a Fabric Module
