DS3XM-6 Card

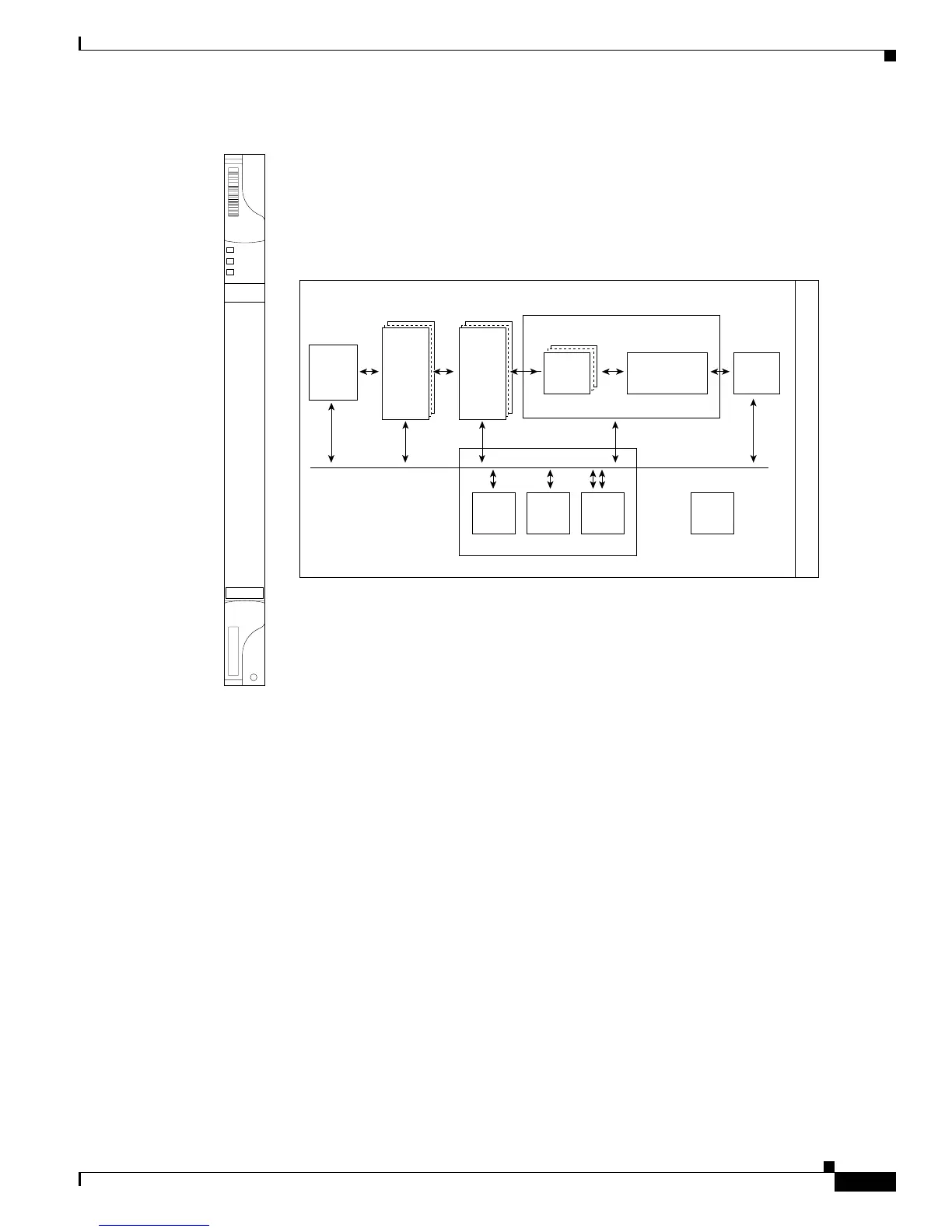

Figure 3-8 DS3XM-6 Faceplate and Block Diagram
3.7.3 DS3XM-6 Hosted By XCVT
The DS3XM-6 card works in conjunction with the XCVT card. A single DS3XM-6 can demultiplex
(map down to a lower rate) six DS-3 signals into 168 VT1.5s that the XCVT card then manages and cross
connects. XCVT cards host a maximum of 336 bidirectional VT1.5s or two DS3XM-6 cards. In most
network configurations two DS3XM-6 cards are paired together as working and protect cards.
